INDIVIDUAL FORMATS FOR VG
CONTROL COMMANDS
2.1 SHT4 [20H 20H]: H timing data registration
Function: This command registers the H timing data of the program whose number
has been designated. When the program number is 0, it writes the data into
the buffer RAM. When it is 9999, it writes the data into the command work
RAM.
Sequence: Type 2
Command:
“0” to “999999999” (in 1 Hz increments)
“0” to “65535” (0 to 655.35 with μs)
“0” to “65535” (0 to 655.35 with μs)
“0” to “65535” (0 to 655.35 with μs)
“0” to “65535” (0 to 655.35 with μs)
“0” to “65535” (0 to 655.35 with μs)
“0” to “65535” (0 to 655.35 with μs)

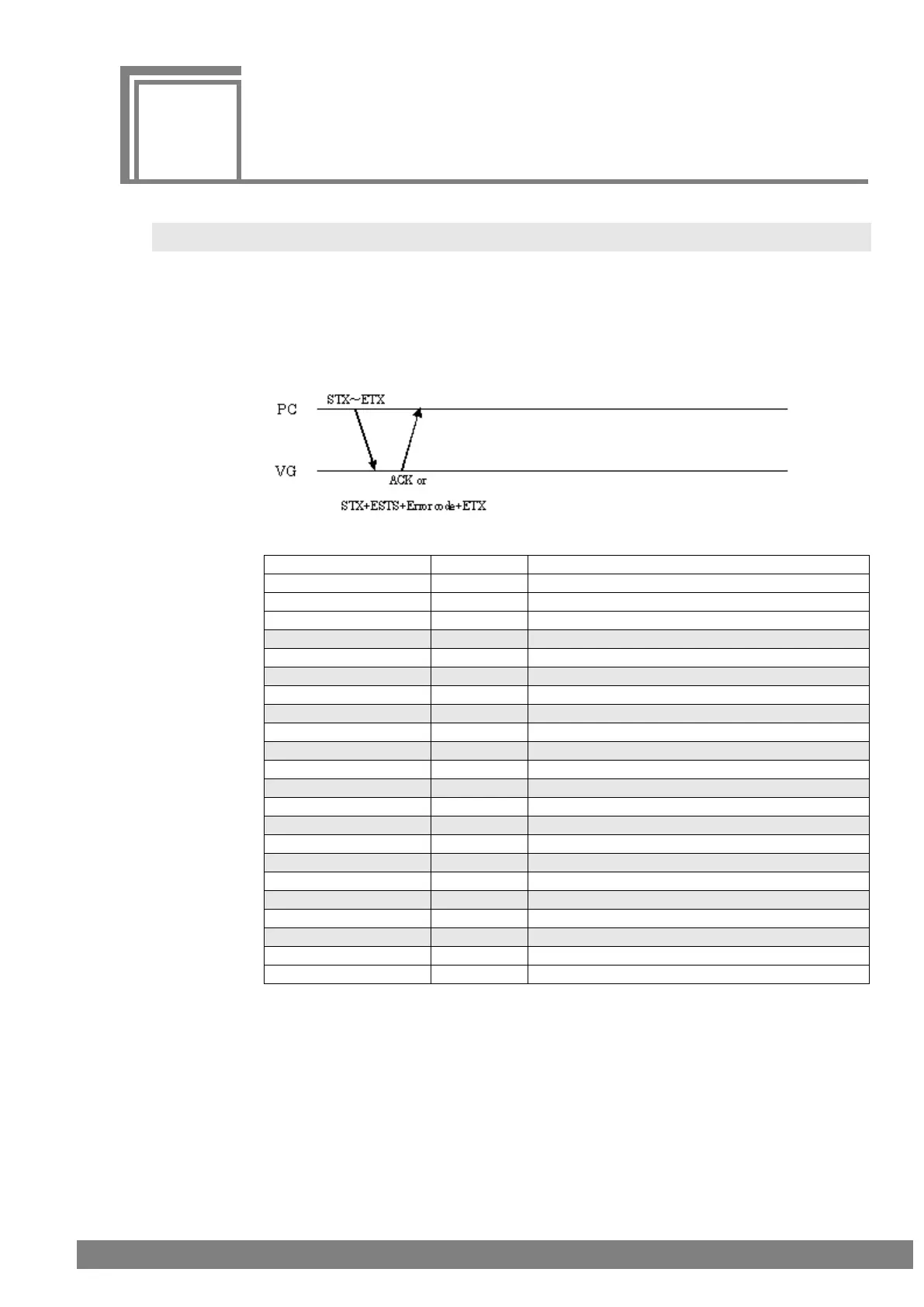

Fig. 2-1-1
