ASTRO VG-871 - SOPTB2 [7 AH]: Optional Board Data 2 Setting

Chapter 4 INDIVIDUAL FORMATS FOR CONTROL COMMANDS
421

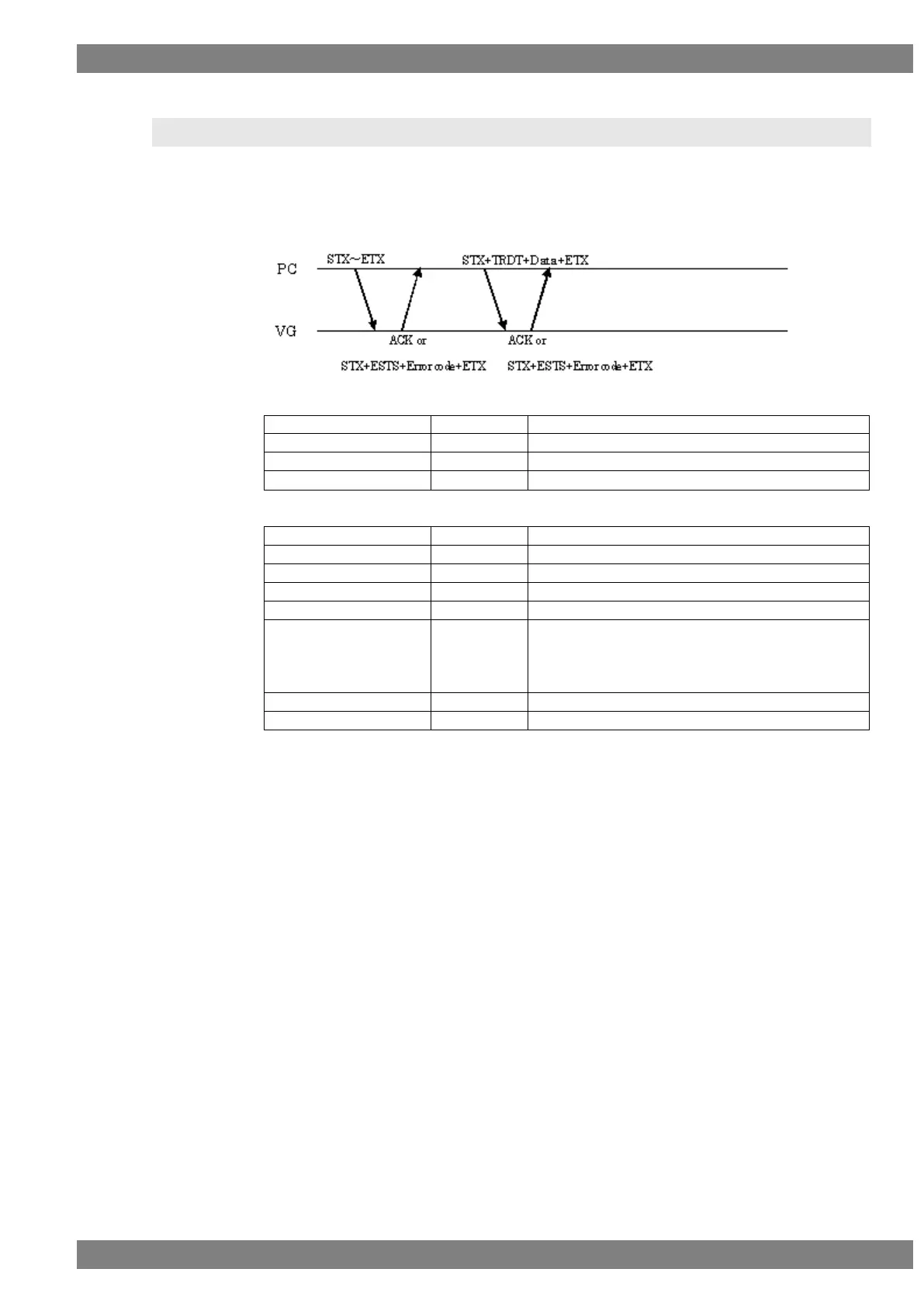

4.72 SOPTB2 [7AH]: Optional board data 2 setting
Function: This command sets the optional board data 2 of the designated program
number .
Sequence: Type 4
Parameters:
STX
1 byte
02H
SHDCPEN
1 byte
7AH
Program number
1 to 3 bytes
“0” to “849”
ETX
1 byte
03H
Fig. 4-74-1
STX
1 byte
02H
TRDT
1 byte
10H
LVDS 1ch
1 byte
“0” = OFF, “1” = ON
LVDS 2ch
1 byte
“0” = OFF, “1” = ON
rsv1
1 byte
“0”
Output Select
1 byte
“0” = DVI
“1” = Parallel
“2” = 4Head LVDS
“3” = 2Head LVDS
rsv2
28 bytes
All “0”
ETX
1 byte
03H
Fig. 4-72-2
Data: None
