2.148 QDISP4 [24H 2CH]: H/V Disp acquisition
Function: This command gets the H/V Disp (Number of display dots/lines).

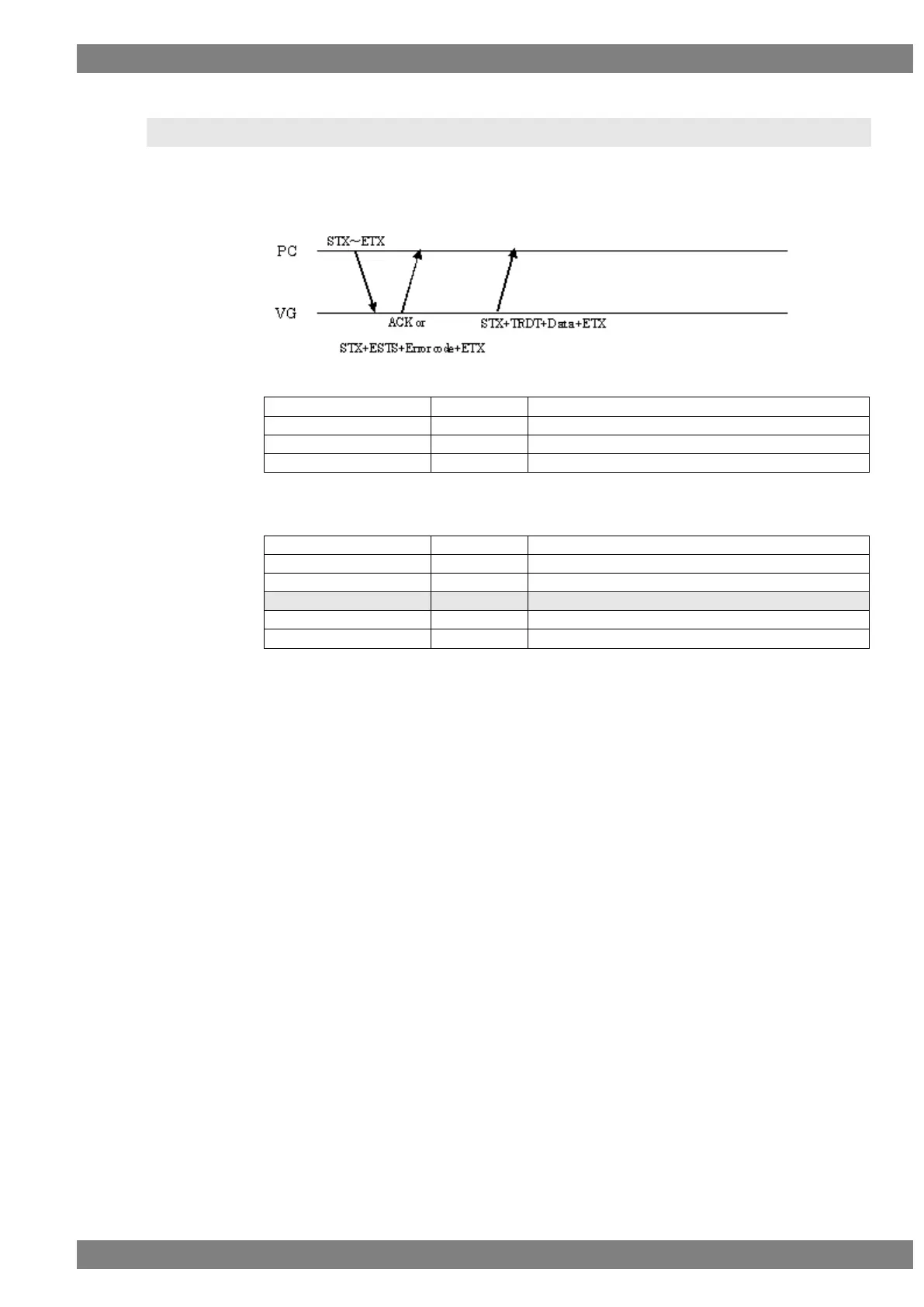

Sequence: Type 3
Command:
STX
1 byte
02H
VG4CMD
1 byte
FDH
QDISP4
2 bytes
24H 2CH
ETX
1 byte
03H
Fig. 2-148-1
Data:
STX
1 byte
02H
TRDT
1 byte
10H
H-Disp
1 to 4 bytes
“0” to “4095”
,
1 byte
2CH (Delimiter)
V-Disp
1 to 4 bytes
“0” to “4095”
ETX
1 byte
03H
Fig. 2-148-2
