ASTRO VG-871 - LAT4 [20 H 51 H]: Auto Display Data Readout

110

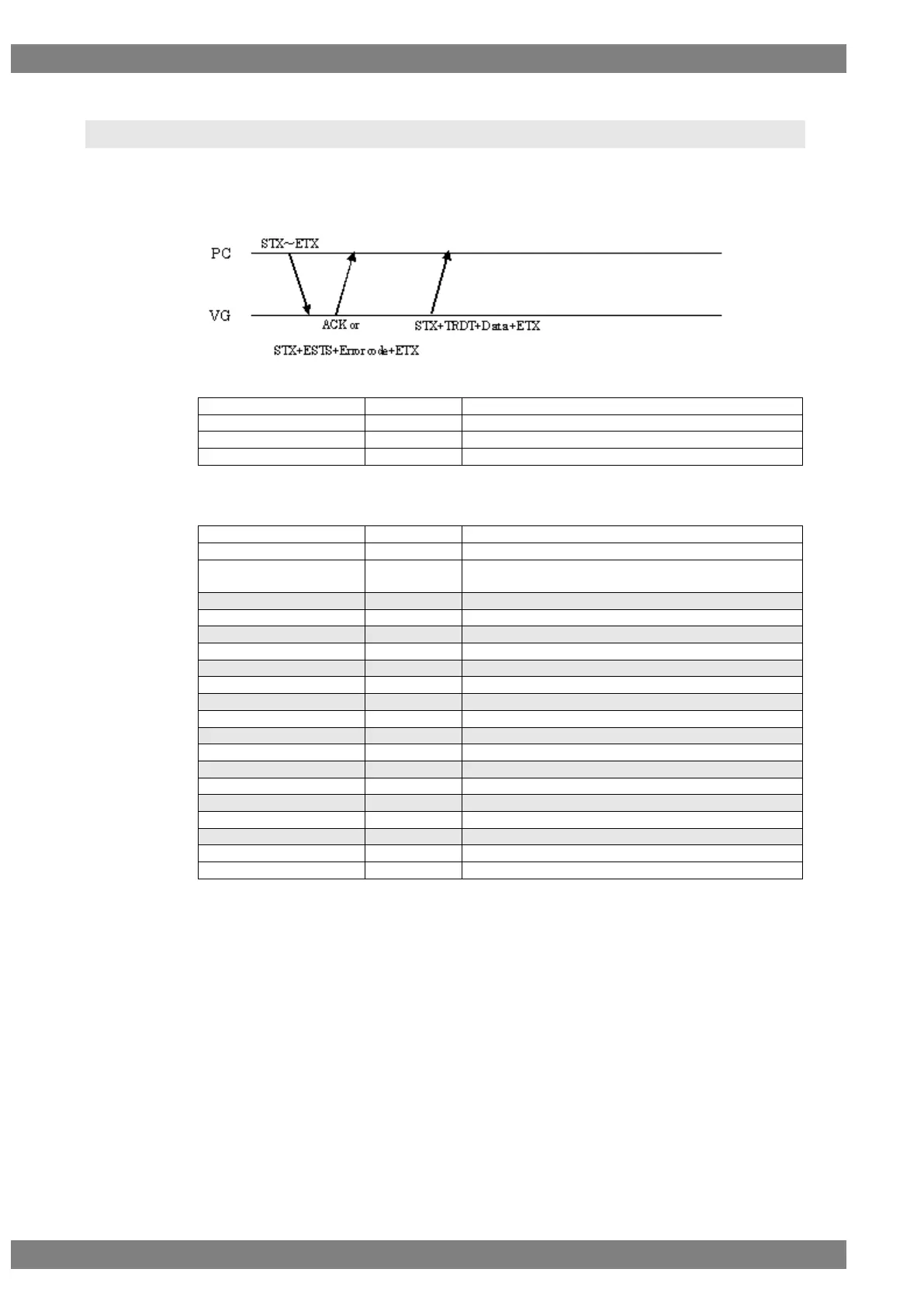

2.47 LAT4 [20H 51H]: Auto display data readout
Function: This command receives the data for executing auto display.
Sequence: Type 3
Command:
STX
1 byte
02H
VG4CMD
1 byte
FDH
LAT4
2 bytes
20H 51H
ETX
1 byte
03H
Fig. 2-47-1
Data:
STX
1 byte
02H
TRDT
1 byte
10H
Mode
1 byte
“0” = Normal Autodisplay, “1” = Group,
“2” = Large Group
,
1 byte
2CH (Delimiter)
Group No.
1 or 2 bytes
“0” to “99”
,
1 byte
2CH (Delimiter)
Interval time (Sec)
1 to 3 bytes
“0” to “999”
,
1 byte
2CH (Delimiter)
Block 1 (START)
1 to 4 bytes
“0” to “1000” (“0” = Not registered)
,
1 byte
2CH (Delimiter)
Block 1 (END)
1 to 4 bytes
“0” to “1000” (“0” = Not registered)
,
1 byte
2CH (Delimiter)
Block 2 (START)
1 to 4 bytes
“0” to “1000” (“0” = Not registered)
,
1 byte
2CH (Delimiter)
Block 2 (END)
1 to 4 bytes
“0” to “1000” (“0” = Not registered)
,
1 byte
2CH (Delimiter)
Block 3 (START)
1 to 4 bytes
“0” to “1000” (“0” = Not registered)
,
1 byte
2CH (Delimiter)
Block 3 (END)
1 to 4 bytes
“0” to “1000” (“0” = Not registered)
ETX
1 byte
03H
Fig. 2-47-2
