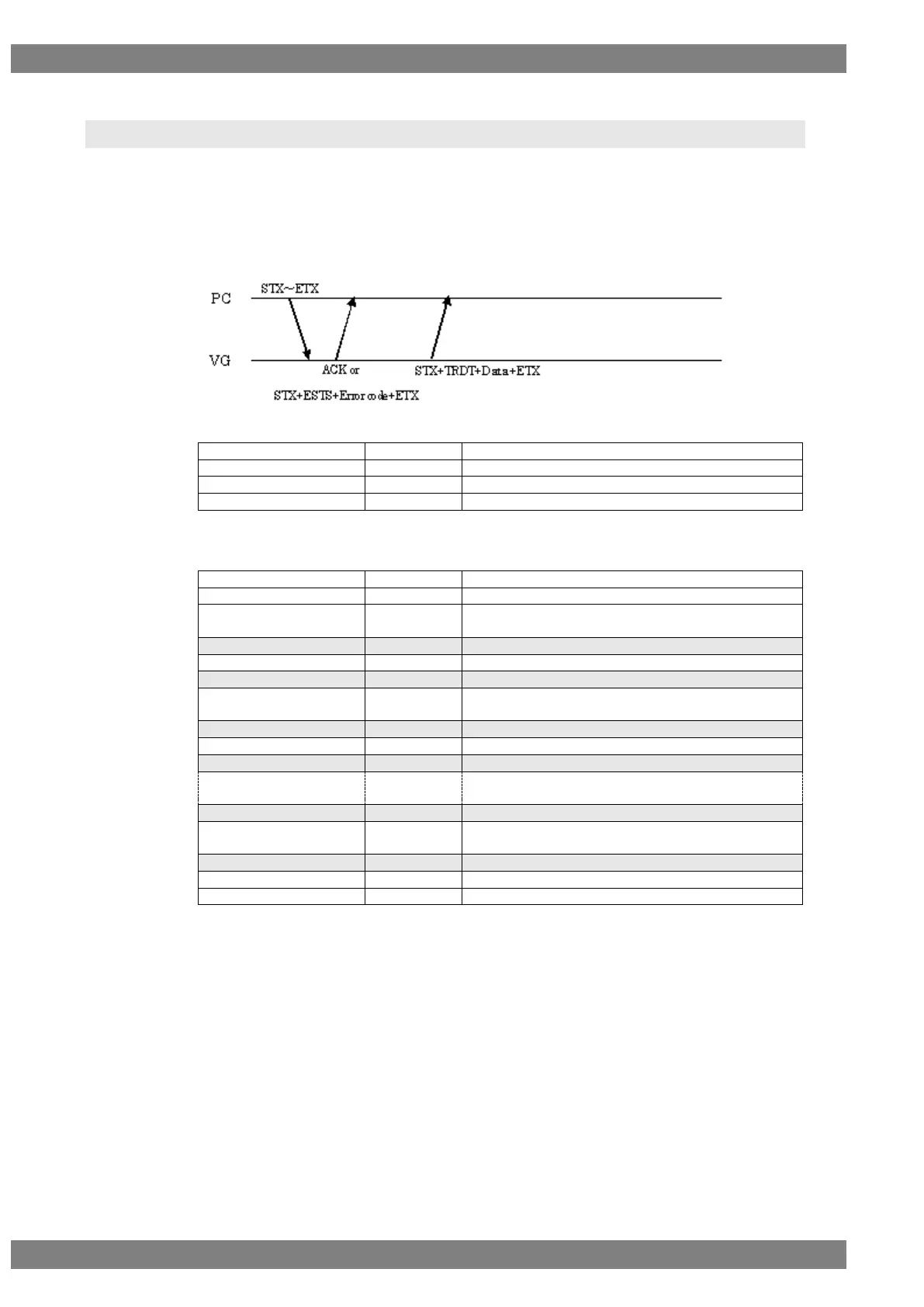

2.82 LKEYL4 [20H 74H]: Key lock data readout
Function: This command reads the key lock data of the system settings (config) from
the VG generator.
* This command is supported only by the VG-880 generator.
Sequence: Type 3
Command:
STX
1 byte
02H
VG4CMD
1 byte
FDH
LKEYL4
2 bytes
20H 74H
ETX
1 byte
03H
Fig. 2-82-1
Data:
STX
1 byte
02H
TRDT
1 byte
10H
Parameter 1 identification
code
1 or 2 bytes
“0” to “56”
,
1 byte
2CH (Delimiter)
Parameter 1 setting
? bytes
?
,
1 byte
2CH (Delimiter)
Parameter 2 identification
code
1 or 2 bytes
“0” to “56”
,
1 byte
2CH (Delimiter)
Parameter 2 setting
? bytes
?
,
1 byte
2CH (Delimiter)
,
1 byte
2CH (Delimiter)
Parameter N
identification code
1 or 2 bytes
“0” to “56”
,
1 byte
2CH (Delimiter)
Parameter N setting
? bytes
?
ETX
1 byte
03H
Fig. 2-82-2
For details on the identification codes, refer to Fig. 2-81-2.
