ASTRO VG-871 - SINB4 [20 H 56 H]: Black Insertion Data Registration

Chapter 2 INDIVIDUAL FORMATS FOR VG CONTROL COMMANDS
123
2.52 SINB4 [20H 56H]: Black insertion data registration
Function: This command registers the black insertion data of the designated program
number When the program number is 0, it writes the data into the buffer
RAM. When it is 9999, it writes the data into the command work RAM.

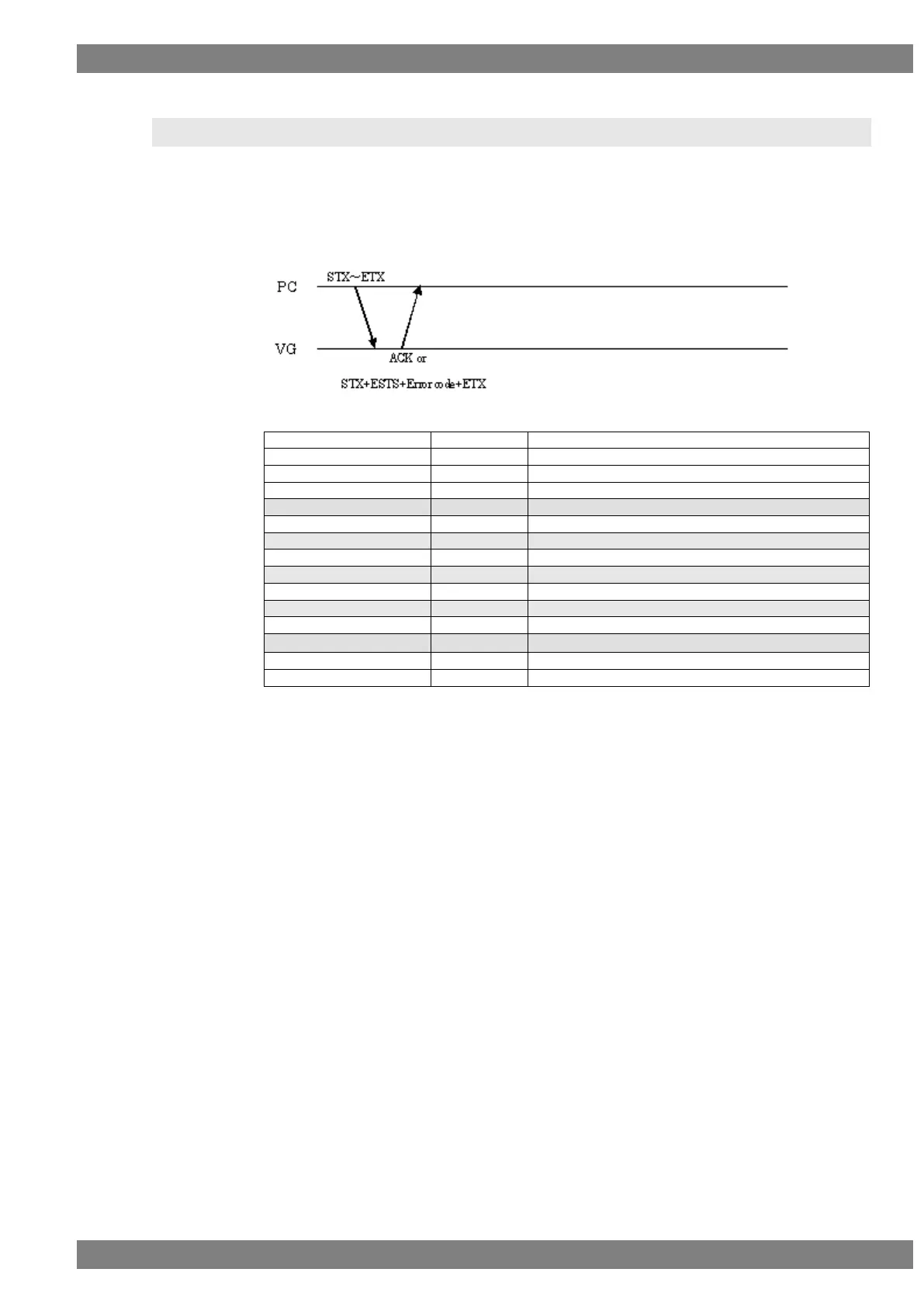

Sequence: Type 2
Command:
STX
1 byte
02H
VG4CMD
1 byte
FDH
SINB4
2 bytes
20H 56H
Program number
1 to 4 bytes
“0” to “1000”, “9999”
,
1 byte
2CH (Delimiter)
Insert Black Enable
1 byte
“0” = Disable, “1” = Enable
,
1 byte
2CH (Delimiter)
Insert Black Position
1 byte
“0” = All, “1” = Left, “2” = Right
,
1 byte
2CH (Delimiter)
Insert Black On Time
1 to 3 bytes
“0” to “255” (0 to 255 V)
,
1 byte
2CH (Delimiter)
Insert Black Off Time
1 to 3 bytes
“0” to “255” (0 to 255 V)
,
1 byte
2CH（Delimiter）
Level
1 to 3 bytes
"0" to "100" %
ETX
1 byte
03H
Fig. 2-52-1
