ASTRO VG-871 - LAP4 [20 H 6 EH]: Aspect Ratio Data Acquisition

Chapter 2 INDIVIDUAL FORMATS FOR VG CONTROL COMMANDS
153

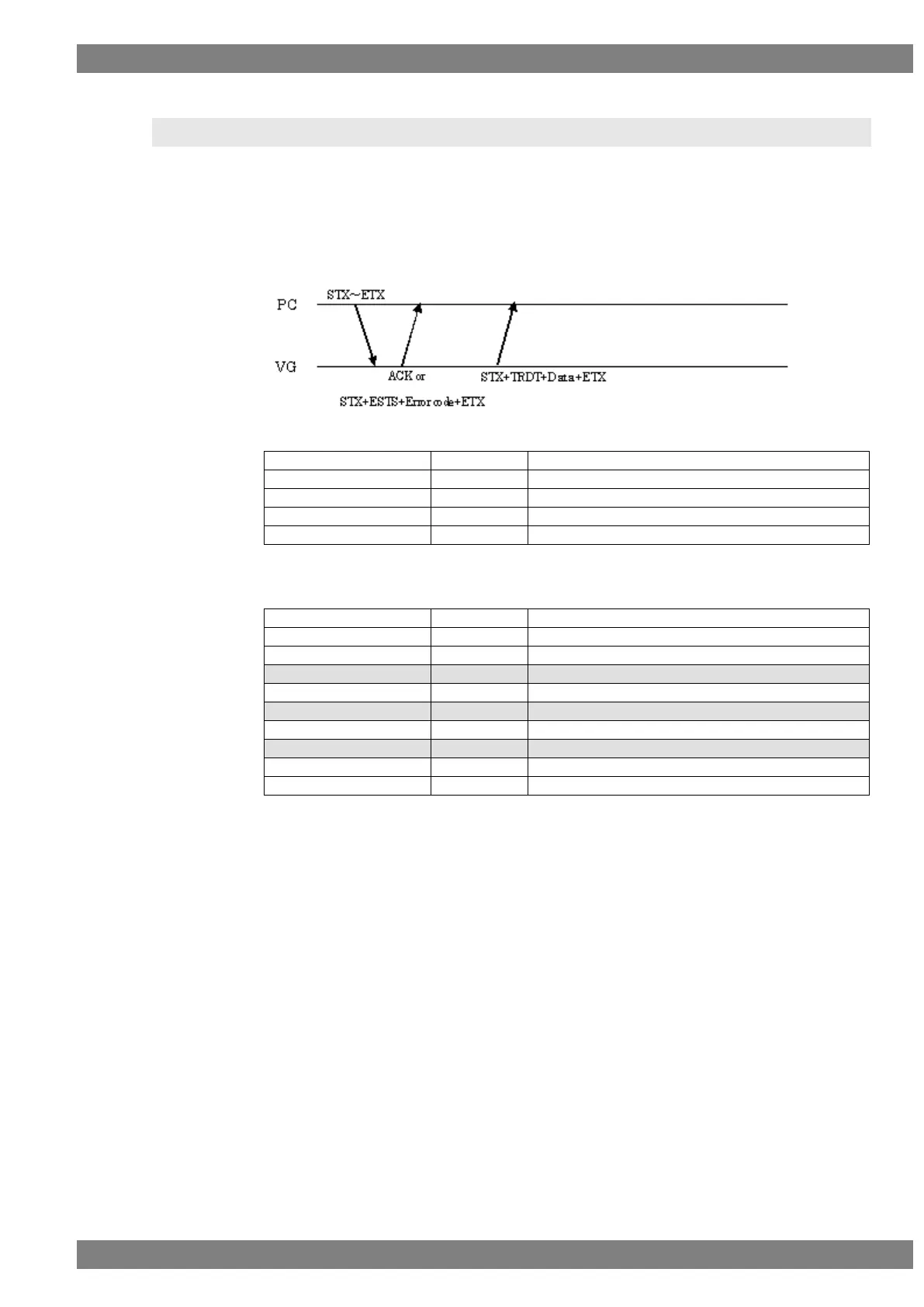

2.76 LAP4 [20H 6EH]: Aspect ratio data acquisition
Function: This command gets the aspect ratio data of the designated program number.
When the program has any number from 1001 to 2000, the command reads
out from the fixed data. When the program number is 9999, the command
reads the data from the command work RAM.
Sequence: Type 3
Parameters:
STX
1 byte
02H
VG4CMD
1 byte
FDH
LAP4
2 bytes
20H 6EH
Program number
1 to 4 bytes
“0” to “2000”, “9999”
ETX
1 byte
03H
Fig. 2-76-1
Data:
STX
1 byte
02H
TRDT
1 byte
10H
Enable
1 byte
“0” or “1”
,
1 byte
2CH (Delimiter)
EndLine
1 or 2 bytes
“0” to “63”
,
1 byte
2CH (Delimiter)
StartLine
1 or 2 bytes
“0” to “63”
,
1 byte
2CH (Delimiter)
Squeeze
1 byte
“0” or “1”
ETX
1 byte
03H
Fig. 2-76-2
