ASTRO VG-871 - L3 DPAT4［20 H AAH］:OPT 3 D Pattern Data Aquisition

218

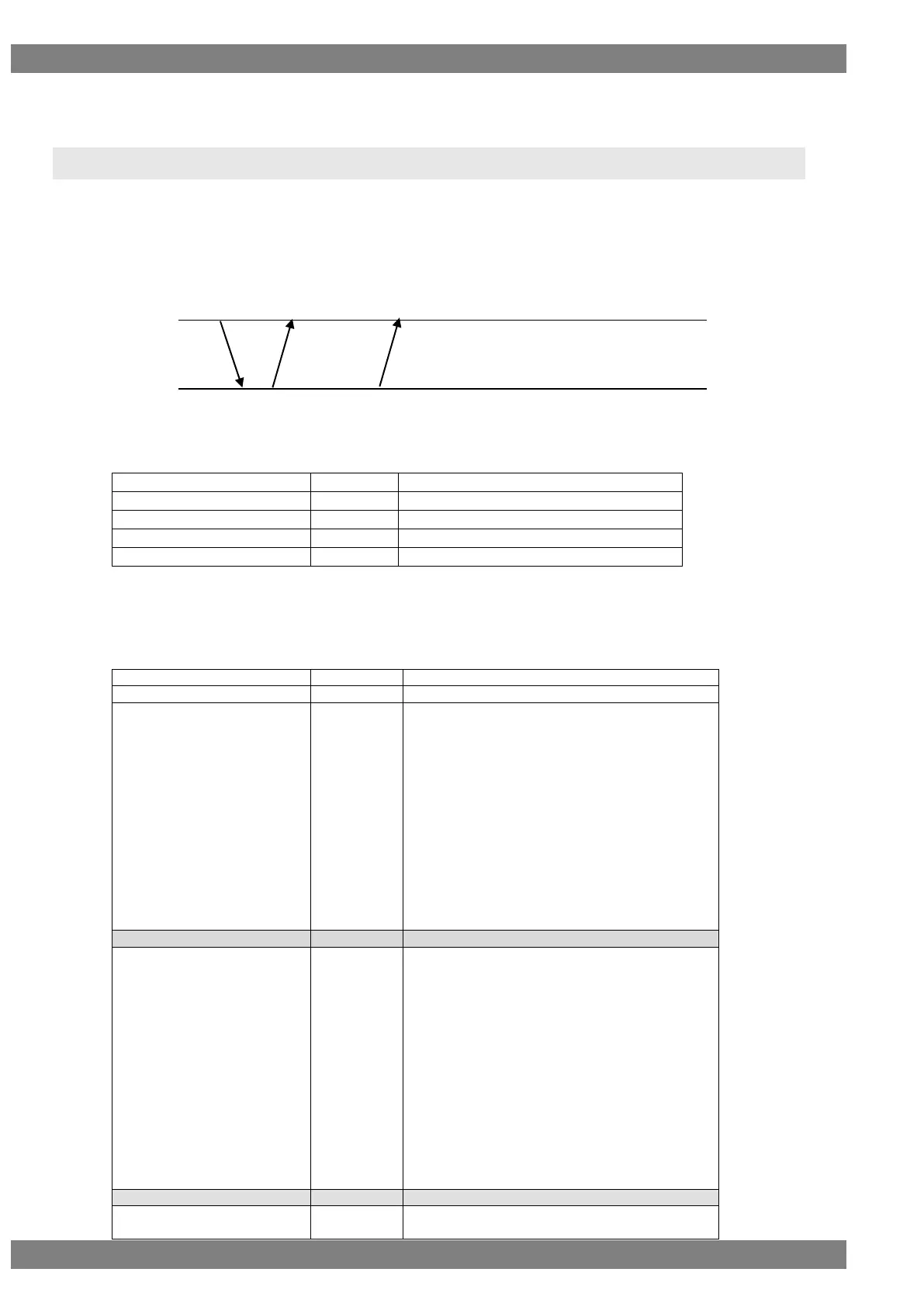

2.119 L3DPAT4［20H AAH］ :OPT 3D pattern data aquisition
Function : This command gets OPT 3D pattern data of the indicated program No. In case
program NO.1001 to 2000, the VG original data is read out. In case ,NO.9999, the
data is read out from command work RAM.
Sequence : TYPE 3
Parameter ：
STX
1 BYTE
02H
VG4CMD
1 BYTE
FDH
L3DPAT4
2 BYTE
20H AAH
Program NO
1-4 BYTE
"0"-"2000","9999"
ETX
1 BYTE
03H
Fig 2-119-1
Data ：
STX
1 BYTE
02H
TRDT
1 BYTE
10H
Type
1-2 BYTE
"0"= Color bar V-1
"1"= Color bar V-2
"2"= Vertical bar
"3"= Checker dot
"4"= Checker block
"5"= Slant color bar
"6"= Raster
"7"= □×＋○
"8"= Window
"9"= Circle
"10"= 9 Window
"11"= 9 Circle
"12"= Slant gray bar
"13"= Cross Hatch
,
1 BYTE
2CH (Delimiter)
LR ON/OFF
1-2 BYTE
"0"=L / R ON
"1"=L ON / R OFF
"2"=L OFF / R ON
"3"=L ON / R(O) ON / R(E) OFF
"4"=L ON / R(O) OFF / R(E) ON
"5"=L OFF / R(O) ON / R(E) OFF
"6"=L OFF / R(O) OFF / R(E) ON
"7"=L(O) ON / L(E) OFF / R ON
"8"=L(O) OFF / L(E) ON / R ON
"9"=L(O) ON / L(E) OFF / R OFF
"10"L(O) OFF / L(E) ON / R OFF
"11"=L(O) ON / L(E) OFF / R(O) ON / R(E) OFF
"12"=L(O) ON / L(E) OFF / R(O) OFF / R(E) ON
"13"=L(O) OFF / L(E) ON / R(O) ON / R(E) OFF
"14"=L(O) OFF / L(E) ON / R(O) OFF / R(E) ON
,
1 BYTE
2CH (Delimiter)
Color R
(When L or R is set OFF)
1-3 BYTE
"0"-"255"
PC
VG
STX～ETX
STX+TRDT+DATA+ETX
ACK or
STX+ESTS+ERROR CODE+ETX
