ASTRO VG-871 - SOPTB [75 H]: Optional Board Data Setting

Chapter 4 INDIVIDUAL FORMATS FOR CONTROL COMMANDS
419
4.70 SOPTB [75H]: Optional board data setting
Function: This command sets the optional board data of the designated program
number.

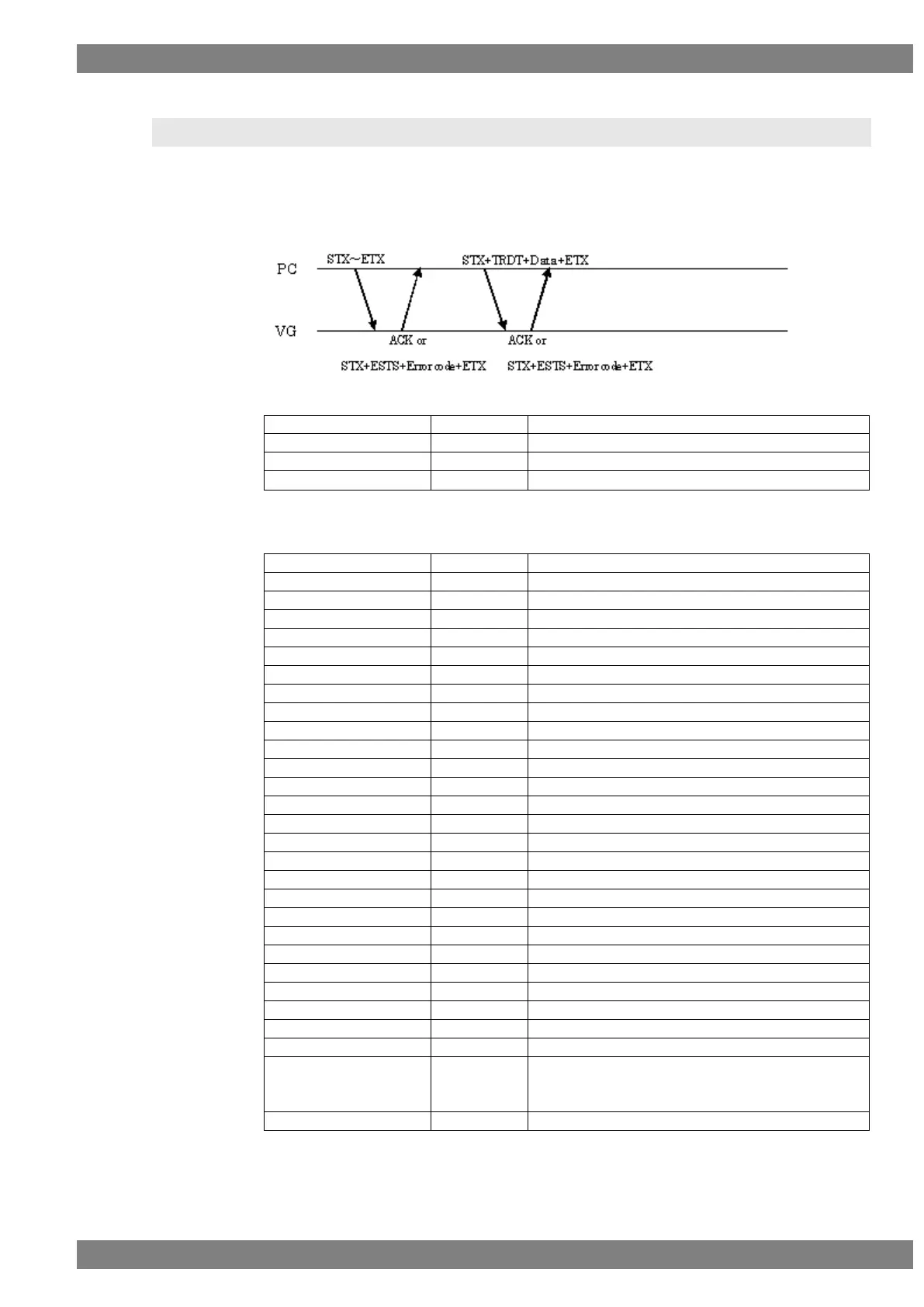

Sequence: Type 4
Parameters:
STX
1 byte
02H
SHDCPEN
1 byte
75H
Program number
1 to 3 bytes
“0” to “849”
ETX
1 byte
03H
Fig. 4-72-1
Data:
STX
1 byte
02H
TRDT
1 byte
10H
RGB1
1 byte
“0” = Nega, “1” = Posi
OUT1
1 byte
“0” = Hi-Z, “1” = ON
CLOCK1
1 byte
“0” = Hi-Z, “1” = ON
SYNC1
1 byte
“0” = Hi-Z, “1” = ON
POW1
1 byte
“0” = Hi-Z, “1” = ON
RGB2
1 byte
“0” = Nega, “1” = Posi
OUT2
1 byte
“0” = Hi-Z, “1” = ON
CLOCK2
1 byte
“0” = Hi-Z, “1” = ON
SYNC2
1 byte
“0” = Hi-Z, “1” = ON
POW2
1 byte
“0” = Hi-Z, “1” = ON
RGB3
1 byte
“0” = Nega, “1” = Posi
OUT3
1 byte
“0” = Hi-Z, “1” = ON
CLOCK3
1 byte
“0” = Hi-Z, “1” = ON
SYNC3
1 byte
“0” = Hi-Z, “1” = ON
POW3
1 byte
“0” = Hi-Z, “1” = ON
RGB4
1 byte
“0” = Nega, “1” = Posi
OUT4
1 byte
“0” = Hi-Z, “1” = ON
CLOCK4
1 byte
“0” = Hi-Z, “1” = ON
SYNC4
1 byte
“0” = Hi-Z, “1” = ON
POW4
1 byte
“0” = Hi-Z, “1” = ON
LVDS 1ch
1 byte
“0” = OFF, “1” = ON
LVDS 2ch
1 byte
“0” = OFF, “1” = ON
LVDS 3ch
1 byte
“0” = OFF, “1” = ON
LVDS 4ch
1 byte
“0” = OFF, “1” = ON
LVDS Split
1 byte
“0” to “6”
LVDS Dual
1 byte
“0” = MODE0 (Singl)
“1” = MODE1 (Dual)
“3” = MODE3
ETX
1 byte
03H
Fig. 4-70-2
