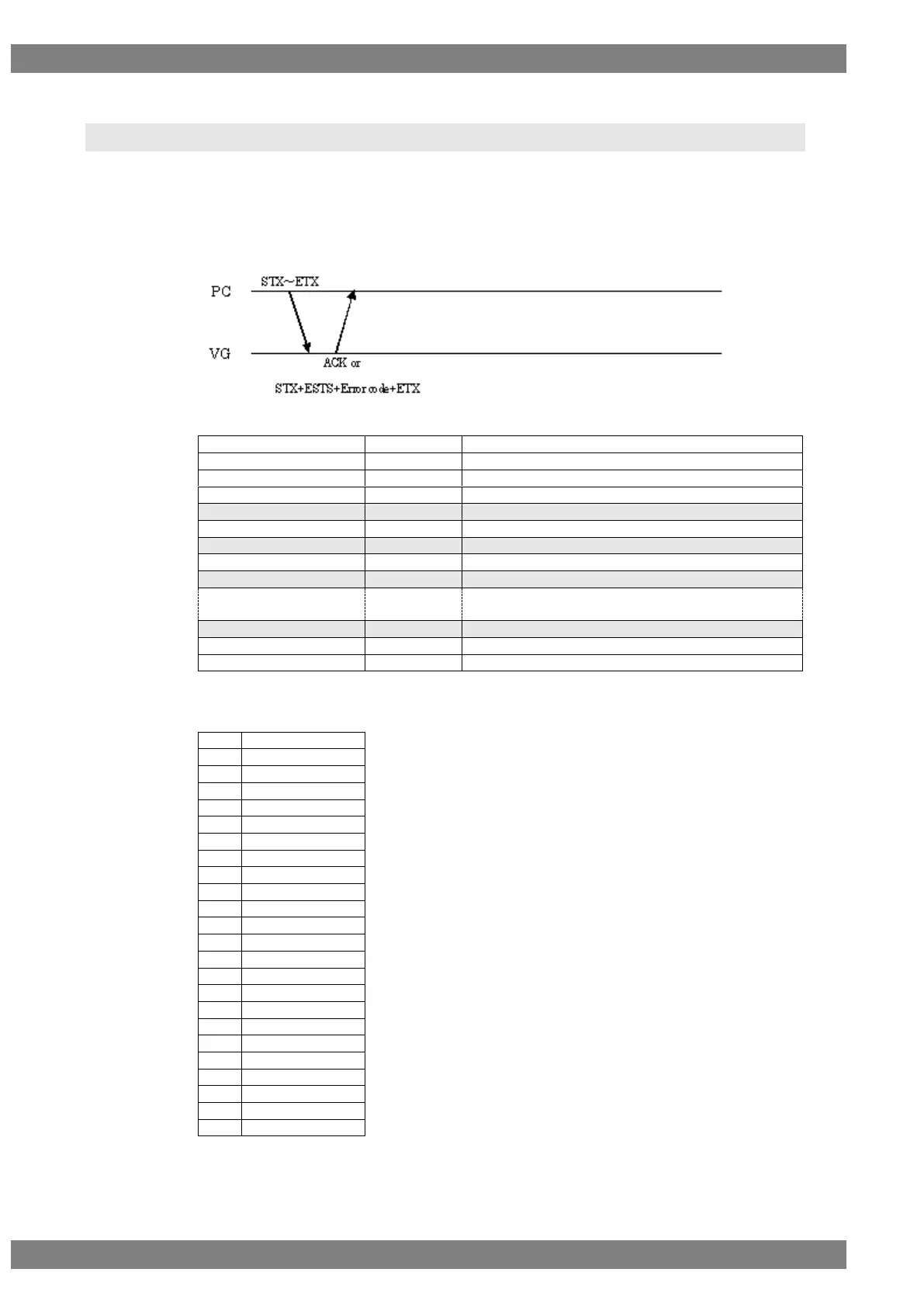

2.11 SPTS4 [20H 2AH]: Pattern select data registration
Function: This command registers the pattern select data of the designated program.
When the program number is 0, it writes the data into the buffer RAM. When
it is 9999, it writes the data into the command work RAM.
Sequence: Type 2
Command:
STX
1 byte
02H
VG4CMD
1 byte
FDH
SPTS4
2 bytes
20H 2AH
Program number
1 to 4 bytes
“0” to “1000”, “9999”
,
1 byte
2CH (Delimiter)
Pattern select code #1
1 or 2 bytes
“0” to “99”
,
1 byte
2CH (Delimiter)
Pattern select code #2
1 or 2 bytes
“0” to “99”
,
1 byte
2CH (Delimiter)
,
1 byte
2CH (Delimiter)
Pattern select code #N
1 or 2 bytes
“0” to “99”
ETX
1 byte
03H
Fig. 2-11-1
Concerning the pattern select codes
Code
Pattern
0
R
1
G
2
B
3
INV
6
Character Plane
7
OPT
8
Checker
9
Aspect
10
Raster
11
Moonscape
12
Sweep
13
Ramp
14
Gray Scale
15
ColorBar
17
Name
18
Cursor
19
Window
24
Burst
25
Circle
26

