5.3.2 CLINE [13H]: Straight line clearing
Function: This command clears the straight line on the graphic plane (1-bit plane).
The start and end point coordinates are set by the parameters.
Sequence: Type 2
Parameters:
STX
1 byte
02H
CLINE
1 byte
13H
Start point coordinate X
2 to 5 bytes
Sign code + “0” to “4095” e.g. 100 “0100”
Sign code: “0” = +, “1” = -
*-2048 (“12048”) to +4096 (“04095”) in numerical
terms
Data delimiter
1 byte
“, “
Start point coordinate Y
2 to 5 bytes
Sign code + “0” to “4095” e.g. 100 “0100”
Sign code: “0” = +, “1” = -
*-2048 (“12048”) to +4096 (“04095”) in numerical
terms
Data delimiter
1 byte
“, “
End point coordinate X 1
2 to 5 bytes
Sign code + “0” to “4095” e.g. 100 “0100”
Sign code: “0” = +, “1” = -
*-2048 (“12048”) to +4096 (“04095”) in numerical
terms
Data delimiter
1 byte
“, “
End point coordinate Y 1
2 to 5 bytes
Sign code + “0” to “4095” e.g. 100 “0100”
Sign code: “0” = +, “1” = -
*-2048 (“12048”) to +4096 (“04095”) in numerical
terms
ETX
1 byte
03H

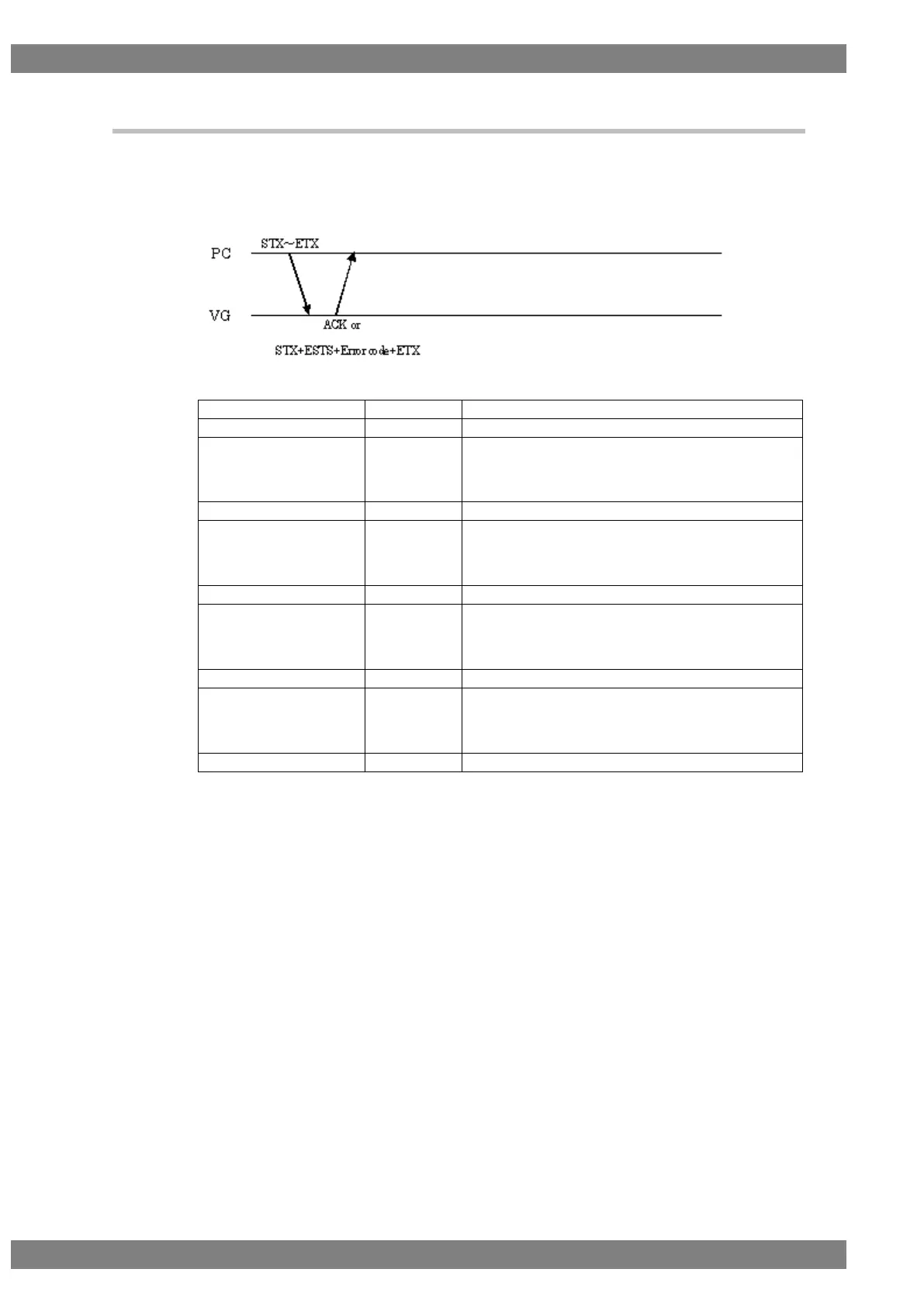

Fig. 5-3-2
* Sign codes are provided.
