4.39 LGROUP3 [ABH]: Group number readout (Type 3)
Function: This command reads the data of the designated group number.
Sequence: Type 3
Command:
STX
1 byte
02H
LGROUP3
1 byte
ABH
Group No.
2 bytes
“01” to “99”
ETX
1 byte
03H

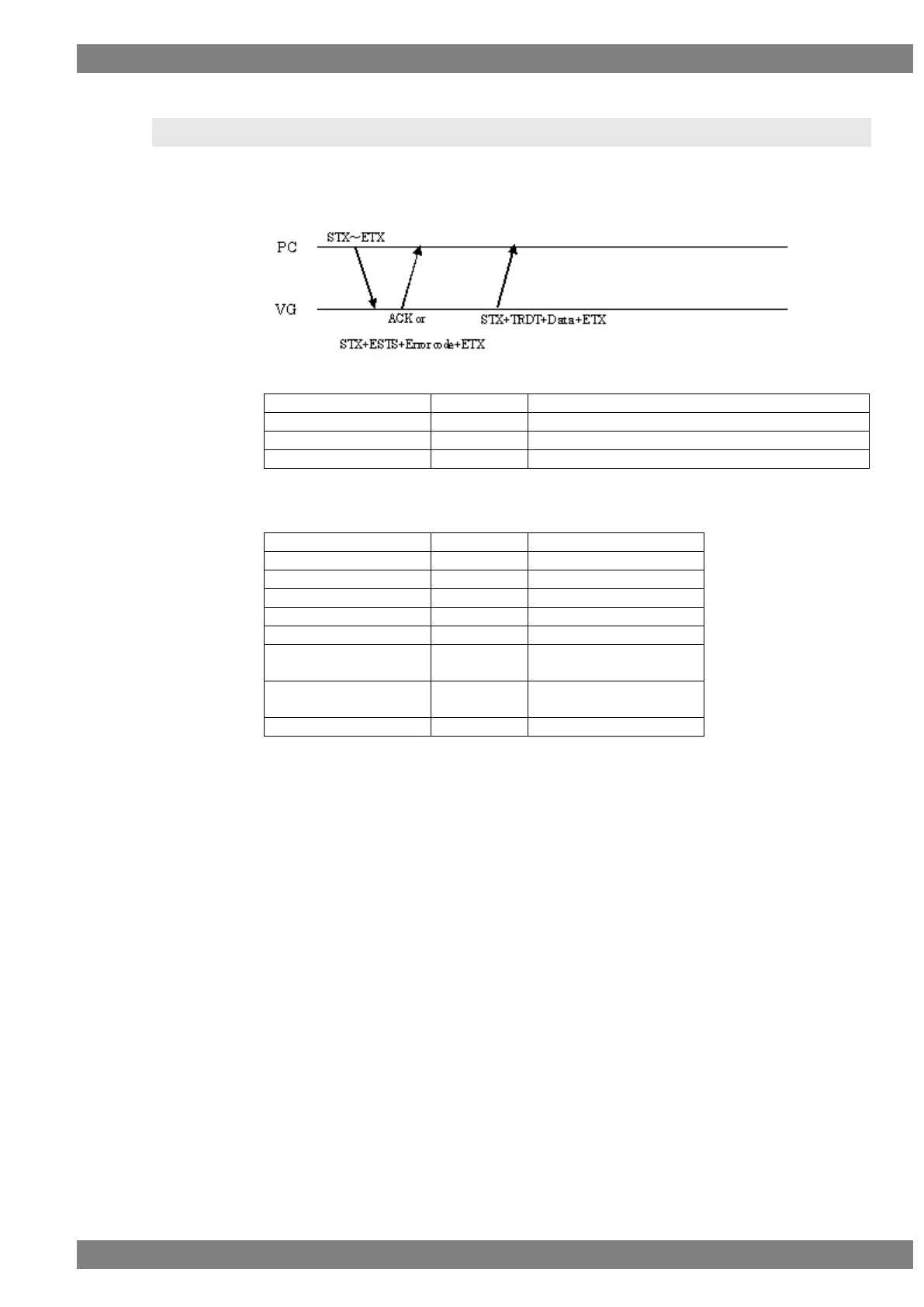

Fig. 4-39-1
Data:
STX
1 byte
02H
TRDT
1 byte
10H
GSW0 start status
1 byte
“0” = Off, “1” = On
GSW1 start status
1 byte
“0” = Off, “1” = On
GSW0 end status
1 byte
“0” = Off, “1” = On
GSW1 end status
1 byte
“0” = Off, “1” = On
Timing data program
No.
3 bytes
“001” to “999”
Repeated up to 98
times in this increment
((3 +3) × 98 bytes)
Pattern data program
No.
3 bytes
“001” to “999”
ETX
1 byte
03H
Fig. 4-39-2
