ASTRO VG-871 - SAFD4 [20 H 42 H]: AFD Data Registration

96
2.35 SAFD4 [20H 42H]: AFD data registration
Function: This command registers the AFD data of the designated program number.
When the program number is 0, it writes the data into the buffer RAM. When
it is 9999, it writes the data into the command work RAM.

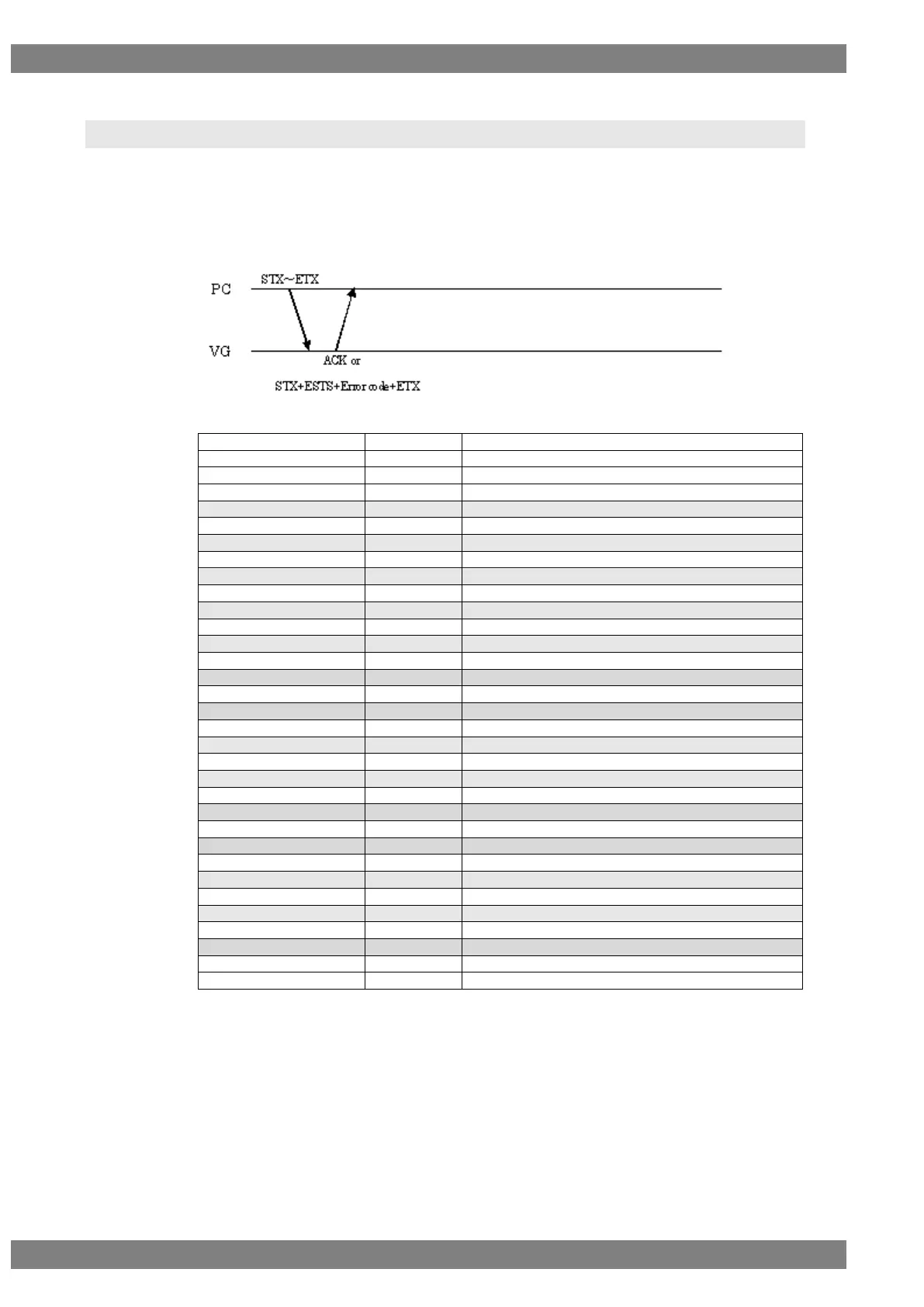

Sequence: Type 2
Command:
STX
1 byte
02H
VG4CMD
1 byte
FDH
SAFD4
2 bytes
20H 42H
Program number
1 to 4 bytes
“0” to “1000”, “9999”
,
1 byte
2CH (Delimiter)
Aspect
1 byte
“0” = 4:3, “1” = 16:9
,
1 byte
2CH (Delimiter)
Type
1 or 2 bytes
“0” to “12”
,
1 byte
2CH (Delimiter)
Color R
1 to 5 bytes
“0” to “65535”
,
1 byte
2CH (Delimiter)
Color G
1 to 5 bytes
“0” to “65535”
,
1 byte
2CH (Delimiter)
Color B
1 to 5 bytes
“0” to “65535”
,
1 byte
2CH (Delimiter)
Color Bit Mode
1 or 2 bytes
“8” to “16”
,
1 byte
2CH (Delimiter)
BG R
1 to 5 bytes
“0” to “65535”
,
1 byte
2CH (Delimiter)
BG G
1 to 5 bytes
“0” to “65535”
,
1 byte
2CH (Delimiter)
BG B
1 to 5 bytes
“0” to “65535”
,
1 byte
2CH (Delimiter)
Back Bit Mode
1 or 2 bytes
“8” to “16”
,
1 byte
2CH (Delimiter)
Bar R
1 to 5 bytes
“0” to “65535”
,
1 byte
2CH (Delimiter)
Bar G
1 to 5 bytes
“0” to “65535”
,
1 byte
2CH (Delimiter)
Bar B
1 to 5 bytes
“0” to “65535”
,
1 byte
2CH (Delimiter)
Bar Bit Mode
1 or 2 bytes
“8” to “16”
ETX
1 byte
03H
Fig. 2-35-1
