ASTRO VG-871 - SPDS [69 H]: Pulldown Scroll Setting Data Registration

408

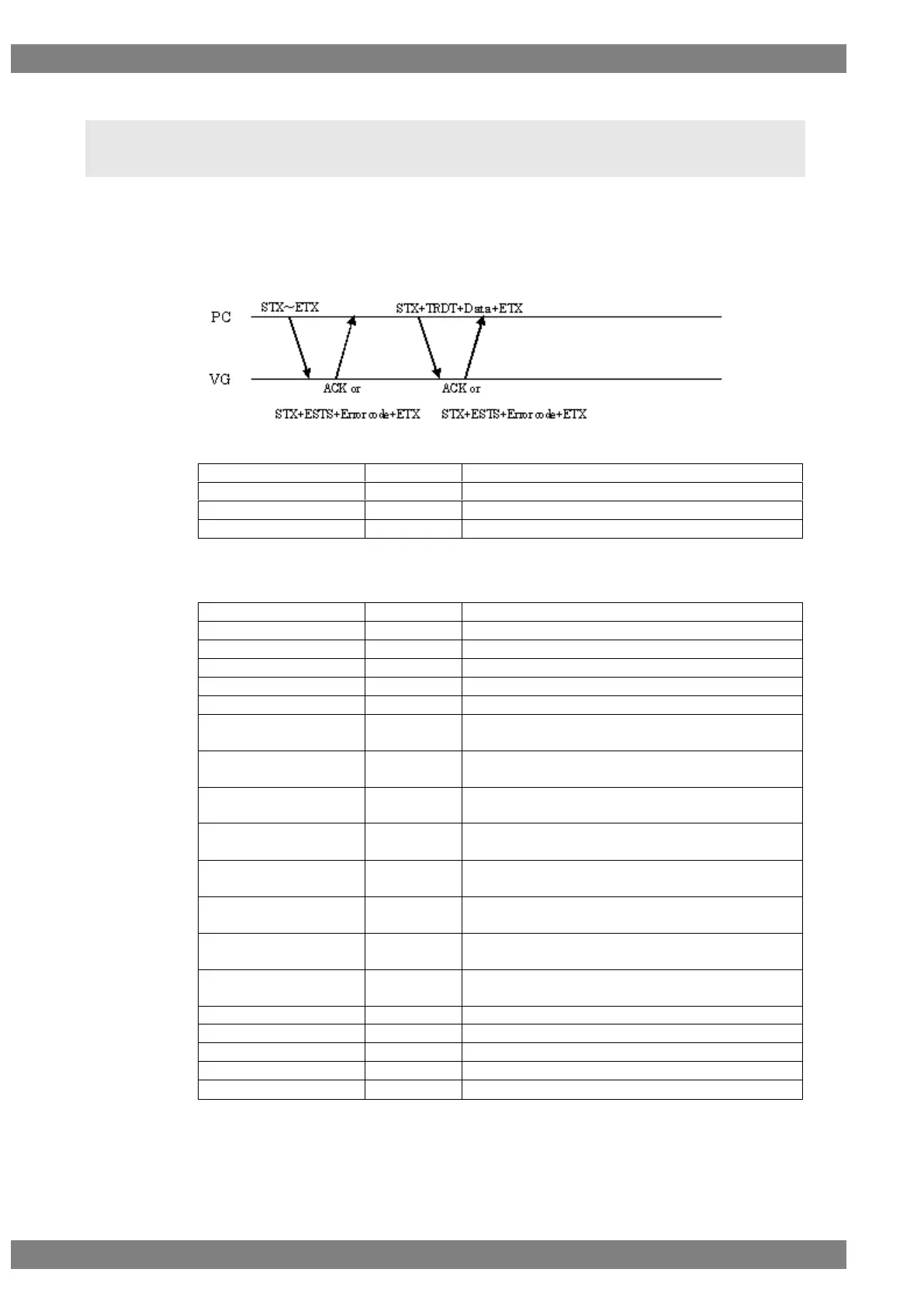

4.59 SPDS [69H]: Pulldown scroll setting data
registration
Function: This command sends the pulldown scroll setting data of the designated
program number. If the program number is 0, it writes the data into the
buffer RAM.
Sequence: Type 4
Command:
STX
1 byte
02H
SPDS
1 byte
69H
Program number
1 to 3 bytes
“0” to “849”
ETX
1 byte
03H
Fig. 4-59-1
Data:
STX
1 byte
02H
TRDT
1 byte
10H
Interval 1
3 bytes
“001” to “255” = 1 V to 255 V
Interval 2
3 bytes
“000” to “255” = 0 V to 255 V
Interval 3
3 bytes
“000” to “255” = 0 V to 255 V
Interval 4
3 bytes
“000” to “255” = 0 V to 255 V
Graphic & character
H-Step1
4 bytes
“0001” to “0255” = 1Step to 255Step
Graphic & character
H-Step2
4 bytes
“0000” to “0255” = 0Step to 255Step
Graphic & character
H-Step3
4 bytes
“0000” to “0255” = 0Step to 255Step
Graphic & character
H-Step4
4 bytes
“0000” to “0255” = 0Step to 255Step
Graphic & character
V-Step1
4 bytes
“0001” to “0255” = 1Step to 255Step
Graphic & character
V-Step2
4 bytes
“0000” to “0255” = 0Step to 255Step
Graphic & character
V-Step3
4 bytes
“0000” to “0255” = 0Step to 255Step
Graphic & character
V-Step4
4 bytes
“0000” to “0255” = 0Step to 255Step
Window Step1
3 bytes
“001” to “255”
Window Step2
3 bytes
“000” to “255”
Window Step3
3 bytes
“000” to “255”
Window Step4
3 bytes
“000” to “255”
ETX
1 byte
03H
Fig. 4-59-2
