ASTRO VG-871 - G8 TRIPA [E5 H]: Filled-In Triangle Drawing (Color Designation)

Chapter 5 INDIVIDUAL DRAWING COMMAND FORMATS
455
5.21 G8TRIPA [E5H]: Filled-in triangle drawing
(color designation)
Function : This command draws filled-in triangles on the color bar plane (8-bit plane). The
coordinates of the three points and the color are designated by the parameters.

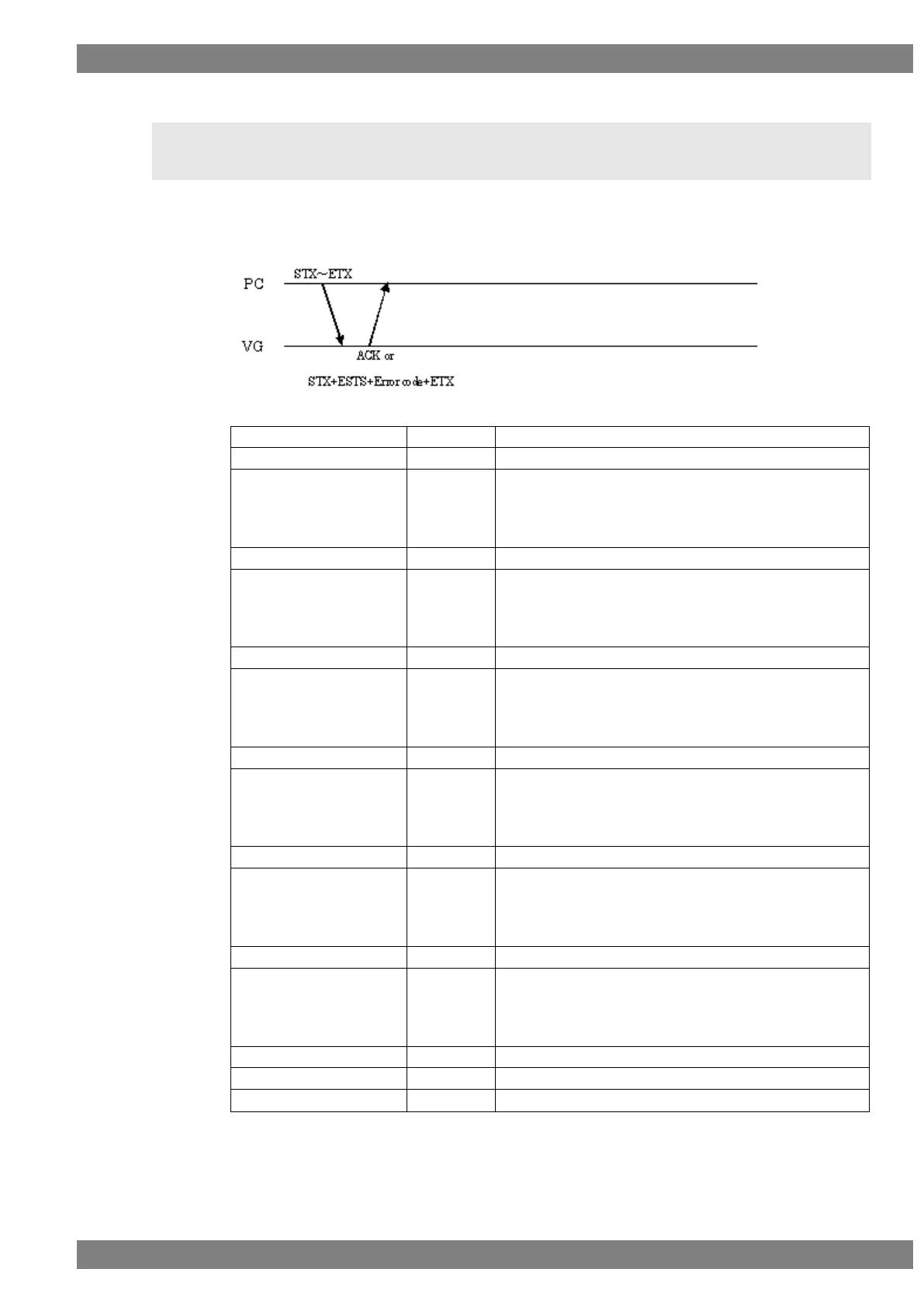

Sequence : Type 2
Parameter :
STX
1 byte
02H
G8TRIPA
1 byte
E5H
Coordinate X1
2 to 5 bytes
“0” to “4095”, example: 100  “0100”
Sign codes for byte 0: “0” = +, “1” = -
Note) In numerical value terms, the settings range
from -2048 to +4096.
Data delimiter
1 byte
“,”
Coordinate Y1
2 to 5 bytes
“0” to “4095”, example: 100  “0100”
Sign codes for byte 0: “0” = +, “1” = -
Note) In numerical value terms, the settings range
from -2048 to +4096.
Data delimiter
1 byte
“,”
Coordinate X2
2 to 5 bytes
“0” to “4095”, example: 100  “0100”
Sign codes for byte 0: “0” = +, “1” = -
Note) In numerical value terms, the settings range
from -2048 to +4096.
Data delimiter
1 byte
“,”
Coordinate Y2
2 to 5 bytes
“0” to “4095”, example: 100  “0100”
Sign codes for byte 0: “0” = +, “1” = -
Note) In numerical value terms, the settings range
from -2048 to +4096.
Data delimiter
1 byte
“,”
Coordinate X3
2 to 5 bytes
“0” to “4095”, example: 100  “0100”
Sign codes for byte 0: “0” = +, “1” = -
Note) In numerical value terms, the settings range
from -2048 to +4096.
Data delimiter
1 byte
“,”
Coordinate Y3
2 to 5 bytes
“0” to “4095”, example: 100  “0100”
Sign codes for byte 0: “0” = +, “1” = -
Note) In numerical value terms, the settings range
from -2048 to +4096.
Data delimiter
1 byte
“,”
Color
1 to 3 bytes
“0” to “255”
ETX
1 byte
03H
Fig. 5-21-1
* Execute this command after having set the sync signals.
