5.13 GRPHCL [3BH]: Graphic color setting
Function: This command sets the graphic colors. The R, G and B colors are set by the
parameters.

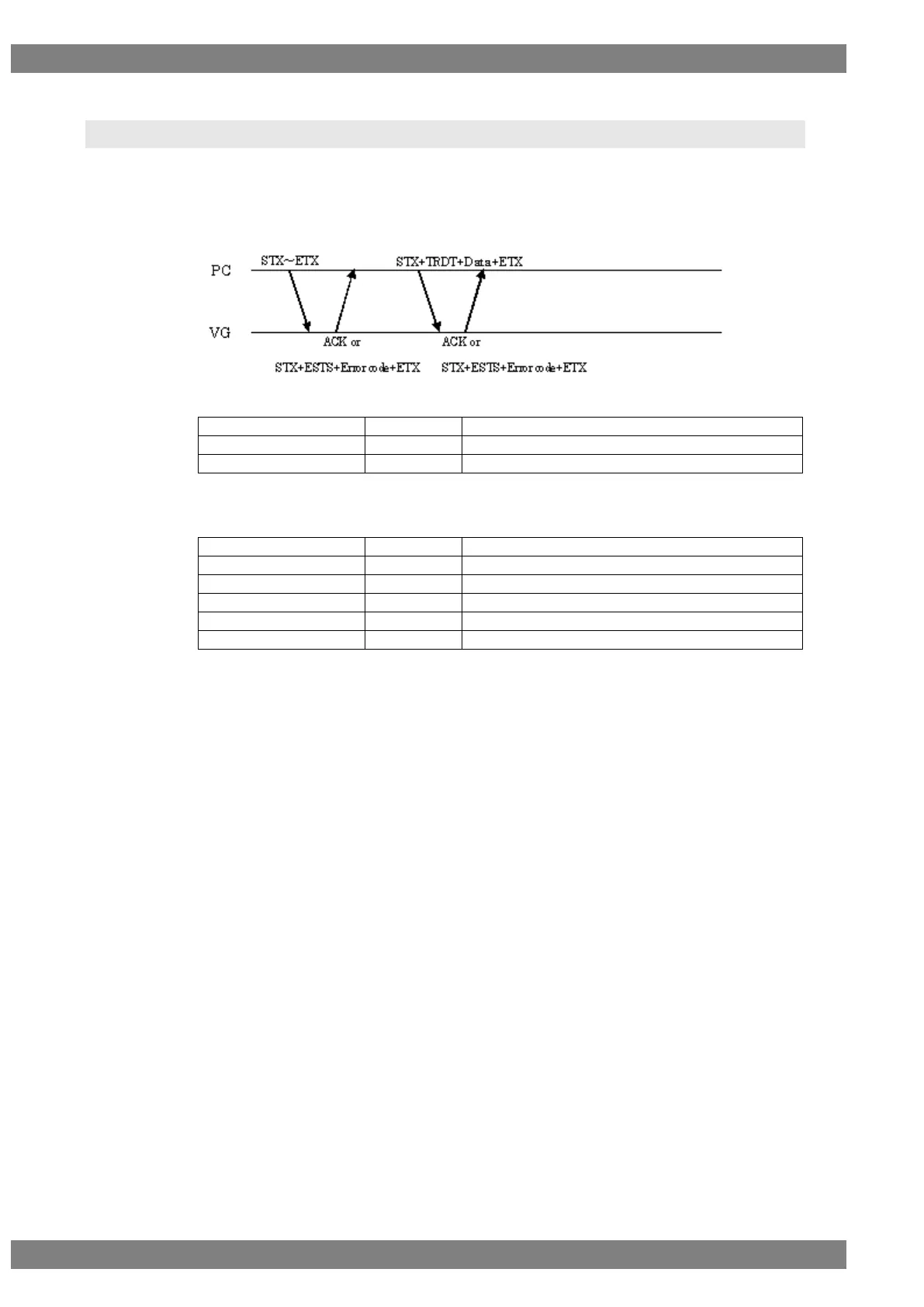

Sequence: Type 4
Command:
STX
1 byte
02H
GRPHCL
1 byte
3BH
ETX
1 byte
03H
Fig. 5-13-1
Data:
STX
1 byte
02H
TRDT
1 byte
10H
R
3 bytes
“000” to “255”
G
3 bytes
“000” to “255”
B
3 bytes
“000” to “255”
ETX
1 byte
03H
Fig. 5-13-2
