4.13 SPTS [47H]: Pattern select data registration
Function: This command registers the pattern select data of the designated program
number. . When the program number is 0, it writes the data into the buffer
RAM.

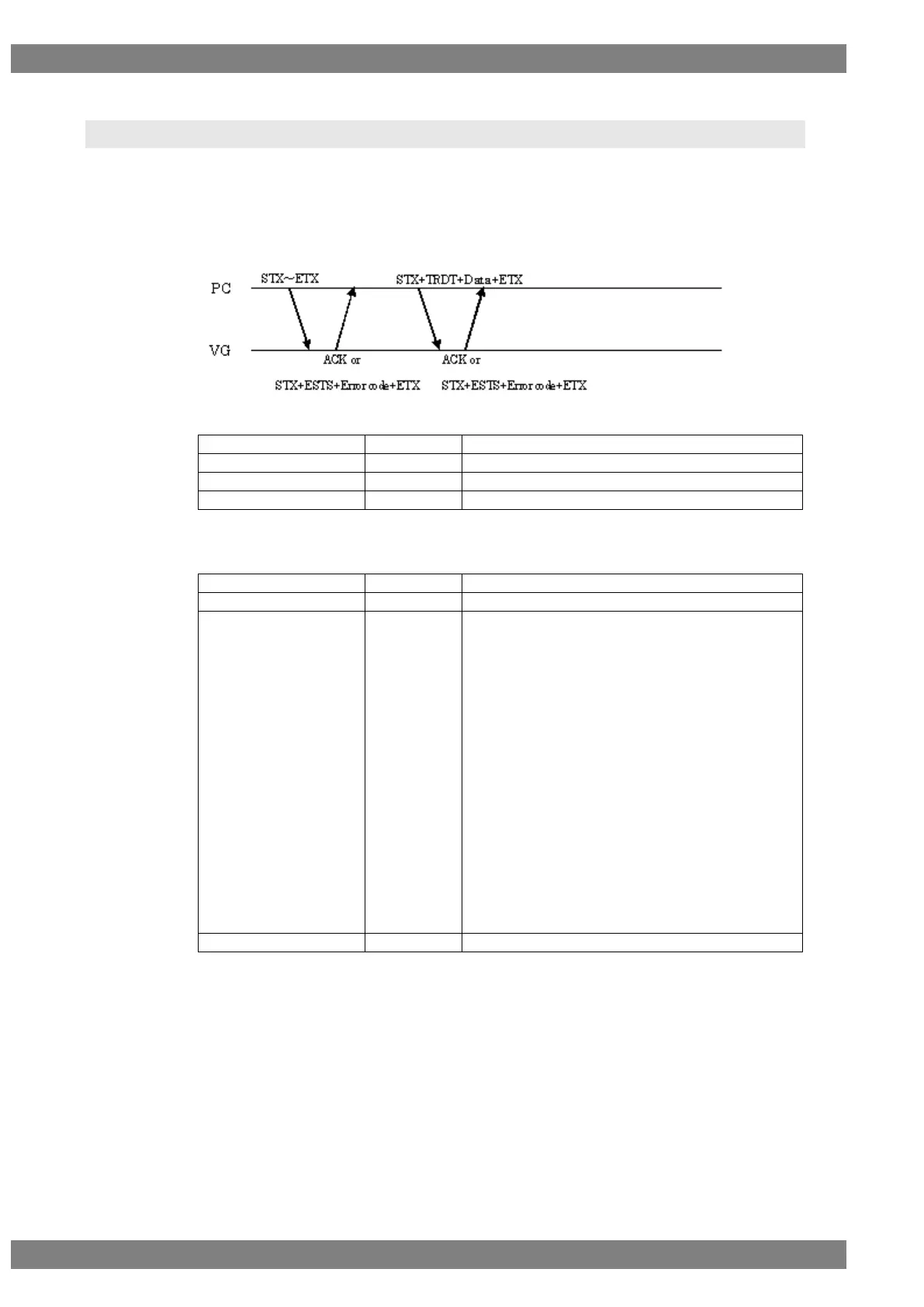

Sequence: Type 4
Command:
STX
1 byte
02H
SPTS
1 byte
47H
Program number
1 to 3 bytes
“0” to “849”
ETX
1 byte
03H
Fig. 4-13-1
Data:
STX
1 byte
02H
TRDT
1 byte
10H
Pattern select
0 to 18 bytes
'50H' = CHARA
'51H' = CROSS
'52H' = DOTS
'53H' = CIRCLE
'54H' = 
'55H' = 
'56H' = 
'57H' = COLOR
'58H' = GRAY
'59H' = BURST
'5AH' = WINDOW
'5BH' = OPTION1
'5CH' = OPTION2
'5EH' = R
'5FH' = G
'60H' = B
'62H' = INV
'69H' = CURSOR
ETX
1 byte
03H
Fig. 4-13-2
