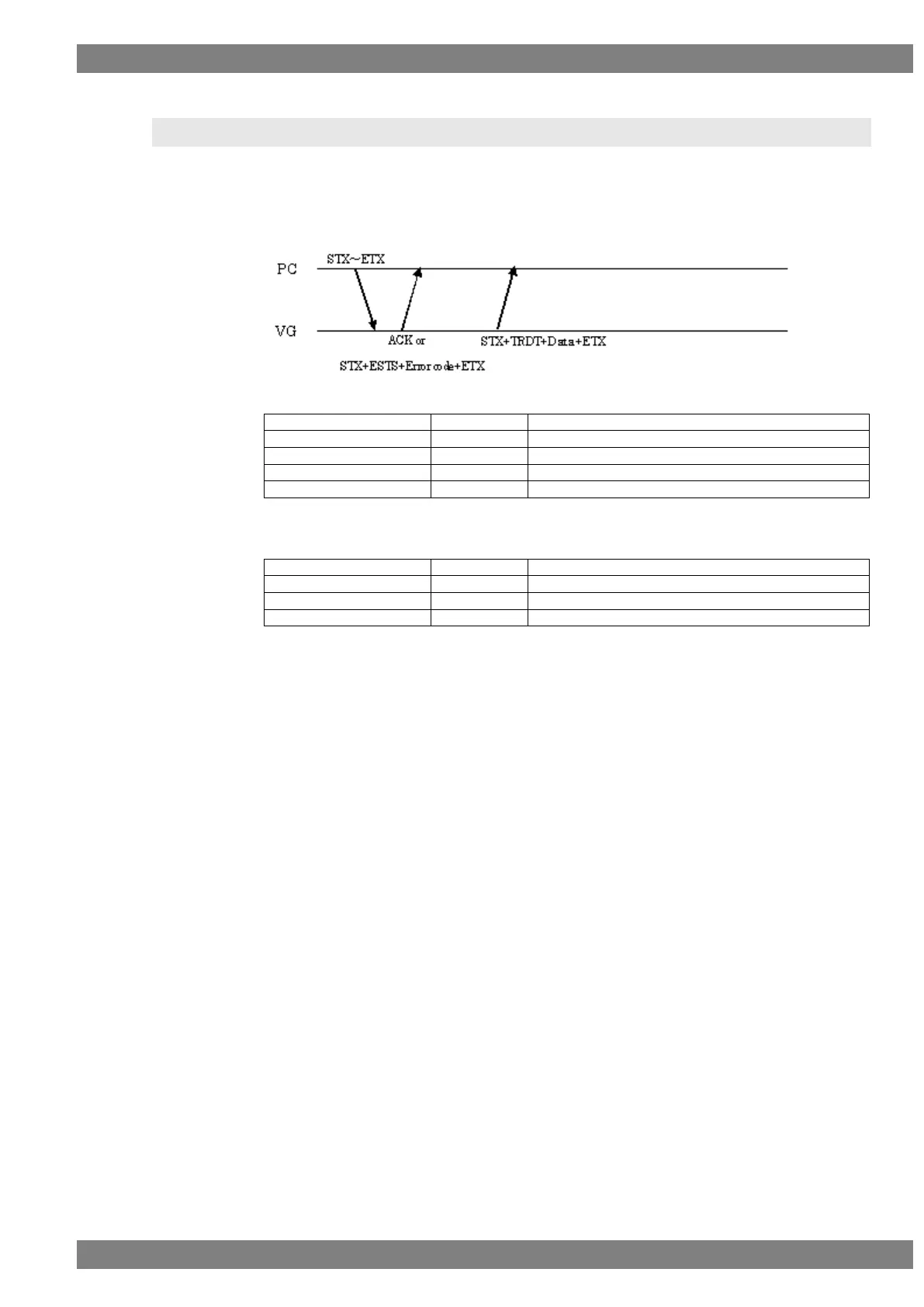

2.56 LBED4 [20H 5AH]: Bitmap enable readout
Function: This command reads enable or disable for the bitmap whose number has
been designated.
Sequence: Type 3
Command:
STX
1 byte
02H
VG4CMD
1 byte
FDH
LBED4
2 bytes
20H 5AH
Program number
1 to 3 bytes
“1” to “899”
ETX
1 byte
03H
Fig. 2-56-1
Data:
STX
1 byte
02H
TRDT
1 byte
10H
Enable/disable
1 byte
“0” = Enable, “1” = Disable
ETX
1 byte
03H
Fig. 2-56-2
