Chapter 5 INDIVIDUAL DRAWING COMMAND FORMATS
453
5.20 G8SQRE [E4H]: Square drawing (color designation)
G8SQPA [E3H]: Filled-in square drawing
(color designation)
5.20.1 G8SQRE [E4H]: Square drawing (color designation)
Function : This command draws squares on the color bar plane (8-bit plane). The start and
end point coordinates and the color are designated by the parameters.

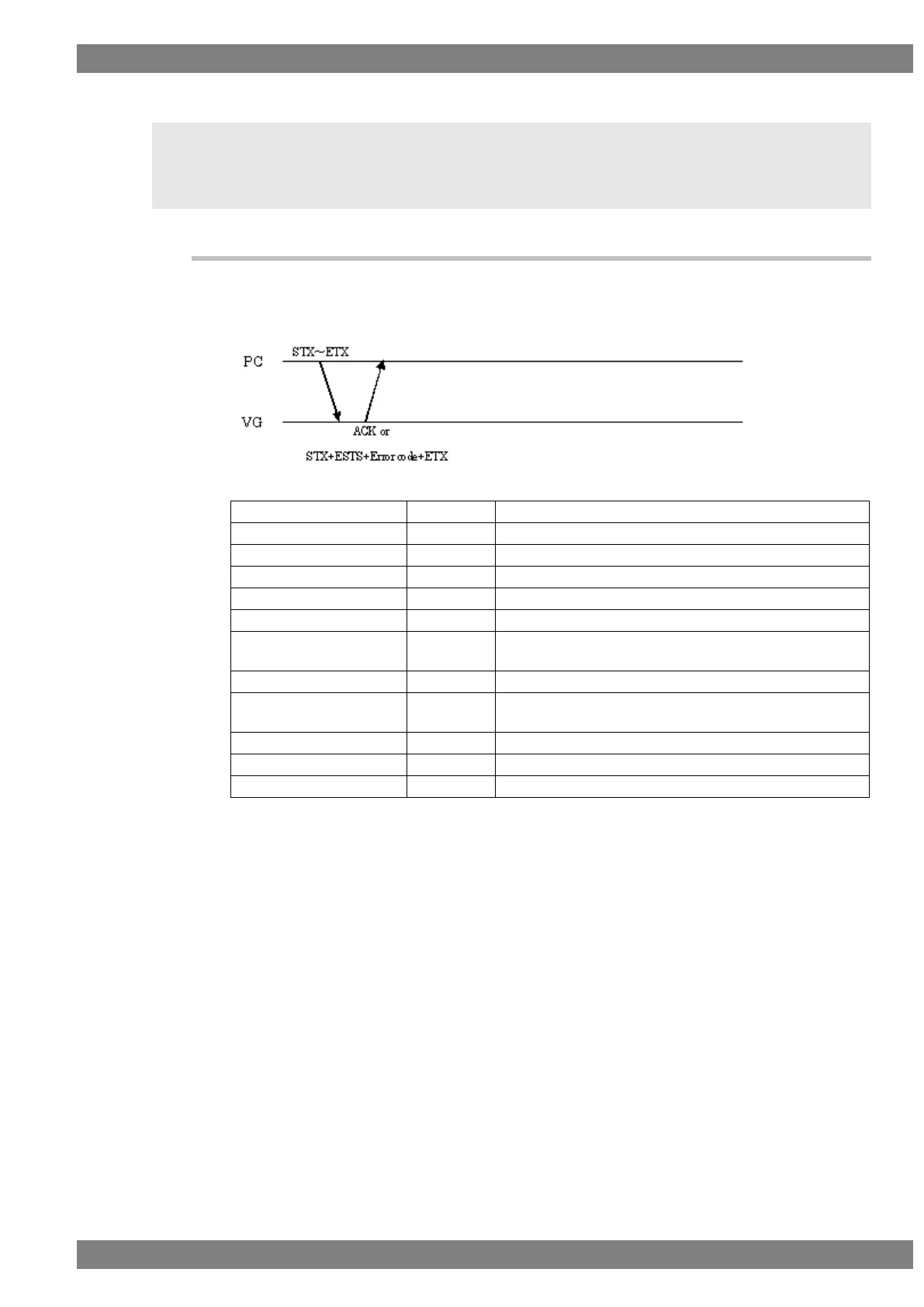

Sequence : Type 2
Parameter :
STX
1 byte
02H
G8SQRE
1 byte
E4H
Top left coordinate X
1 to 4 bytes
“0” to “4095”
Data delimiter
1 byte
“,”
Top left coordinate Y
1 to 4 bytes
“0” to “4095”
Data delimiter
1 byte
“,”
Bottom right coordinate
X1
1 to 4 bytes
“0” to “4095”
Data delimiter
1 byte
“,”
Bottom right coordinate
Y1
1 to 4 bytes
“0” to “4095”
Data delimiter
1 byte
“,”
Color
1 to 3 bytes
“0” to “255”
ETX
1 byte
03H
Fig. 5-20-1
