ASTRO VG-871 - SACT4 [20 H 2 EH]: Action Data Registration

Chapter 2 INDIVIDUAL FORMATS FOR VG CONTROL COMMANDS
61
2.15 SACT4 [20H 2EH]: Action data registration
Function: This command registers the action data of the designated program. When
the program number is 0, it writes the data into the buffer RAM. When it is
9999, it writes the data into the command work RAM.

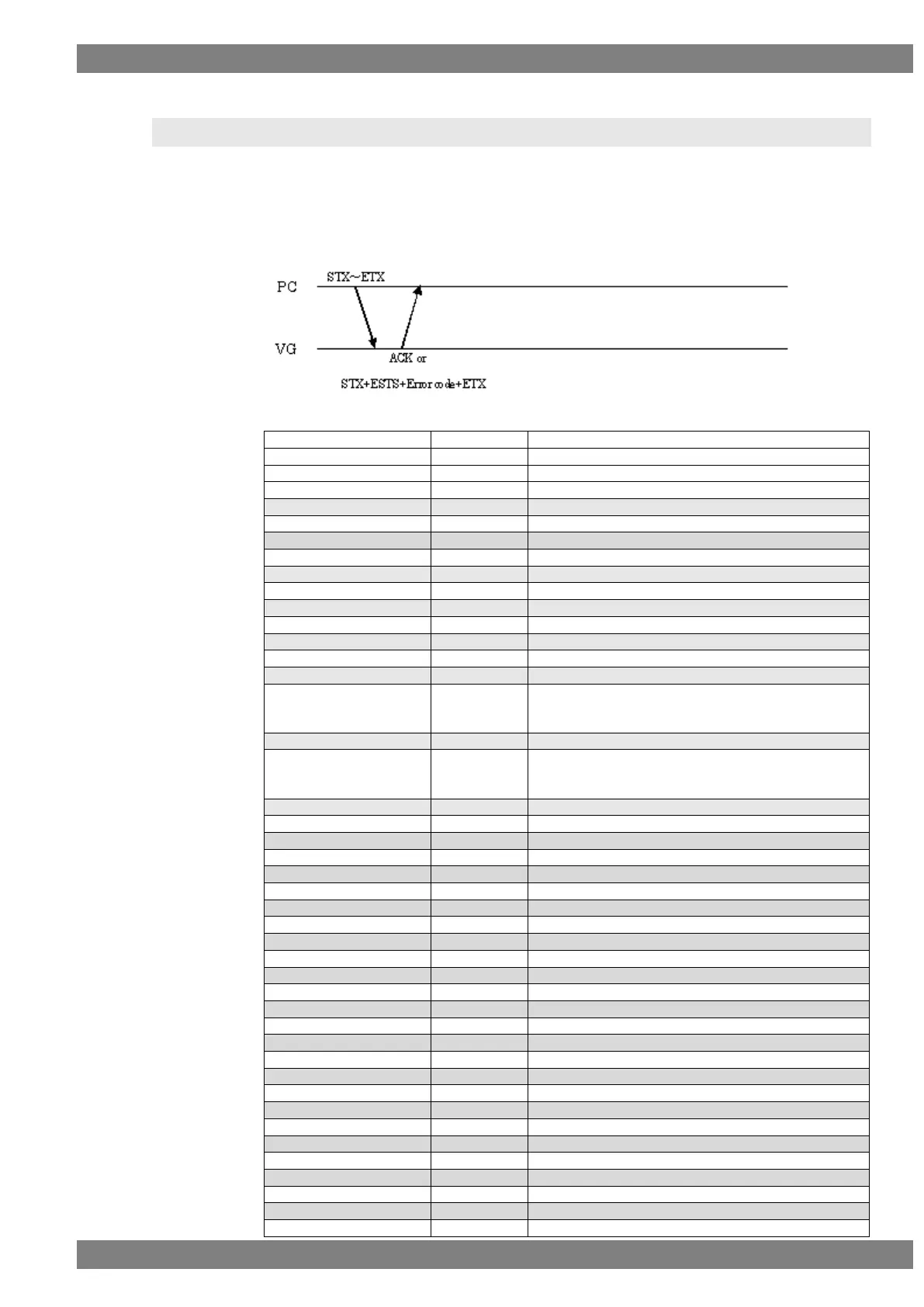

Sequence: Type 2
Command:
STX
1 byte
02H
VG4CMD
1 byte
FDH
SACT4
2 bytes
20H 2EH
Program number
1 to 4 bytes
“0” to “1000”, “9999”
,
1 byte
2CH (Delimiter)
Window level
1 byte
“0” = Not provided, “1” = Provided
,
1 byte
2CH (Delimiter)
Window flicker
1 byte
“0” = Not provided, “1” = Provided
,
1 byte
2CH (Delimiter)
Character scroll
1 byte
“0” = Not provided, “1” = Provided
,
1 byte
2CH (Delimiter)
Graphic scroll
1 byte
“0” = Not provided, “1” = Provided
,
1 byte
2CH (Delimiter)
Window scroll
1 byte
“0” = Not provided, “1” = Provided
,
1 byte
2CH (Delimiter)
Character scroll mode
1 byte
“0” = Left, “1” = Right, “2” = Up, “3” = Down,
“4” = Top left, “5” = Bottom left, “6” = Top right,
“7” = Bottom right
,
1 byte
2CH (Delimiter)
Graphic scroll mode
1 byte
“0” = Left, “1” = Right, “2” = Up, “3” = Down,
“4” = Top left, “5” = Bottom left, “6” = Top right,
“7” = Bottom right, “8” = Move display position
,
1 byte
2CH (Delimiter)
Character pattern interval 1
1 to 3 bytes
“1” to “255”
,
1 byte
2CH (Delimiter)
Character pattern interval 2
1 to 3 bytes
“0” to “255”
,
1 byte
2CH (Delimiter)
Character pattern interval 3
1 to 3 bytes
“0” to “255”
,
1 byte
2CH (Delimiter)
Character pattern interval 4
1 to 3 bytes
“0” to “255”
,
1 byte
2CH (Delimiter)
Character pattern step H1
1 to 4 bytes
“1” to “4095”
,
1 byte
2CH (Delimiter)
Character pattern step H2
1 to 3 bytes
“0” to “255”
,
1 byte
2CH (Delimiter)
Character pattern step H3
1 to 3 bytes
“0” to “255”
,
1 byte
2CH (Delimiter)
Character pattern step H4
1 to 3 bytes
“0” to “255”
,
1 byte
2CH (Delimiter)
Character pattern step V1
1 to 4 bytes
“1” to “4095”
,
1 byte
2CH (Delimiter)
Character pattern step V2
1 to 3 bytes
“0” to “255”
,
1 byte
2CH (Delimiter)
Character pattern step V3
1 to 3 bytes
“0” to “255”
,
1 byte
2CH (Delimiter)
Character pattern step V4
1 to 3 bytes
“0” to “255”
,
1 byte
2CH (Delimiter)
Group pattern interval 1
1 to 3 bytes
“1” to “255”
