3.13 CHACOL4 [28H 2CH]: Character plane color setting
Function: This command sets the color of the character plane.
Sequence: Type 2
Command:
STX
1 byte
02H
VG4CMD
1 byte
FDH
CHACOL4
2 bytes
28H 2CH
R
1 to 5 bytes
“0” to “65535”
,
1 byte
2CH (Delimiter)
G
1 to 5 bytes
“0” to “65535”
,
1 byte
2CH (Delimiter)
B
1 to 5 bytes
“0” to “65535”
,
1 byte
2CH (Delimiter)
Bit Mode
1 or 2 bytes
“8” to “16”
ETX
1 byte
03H

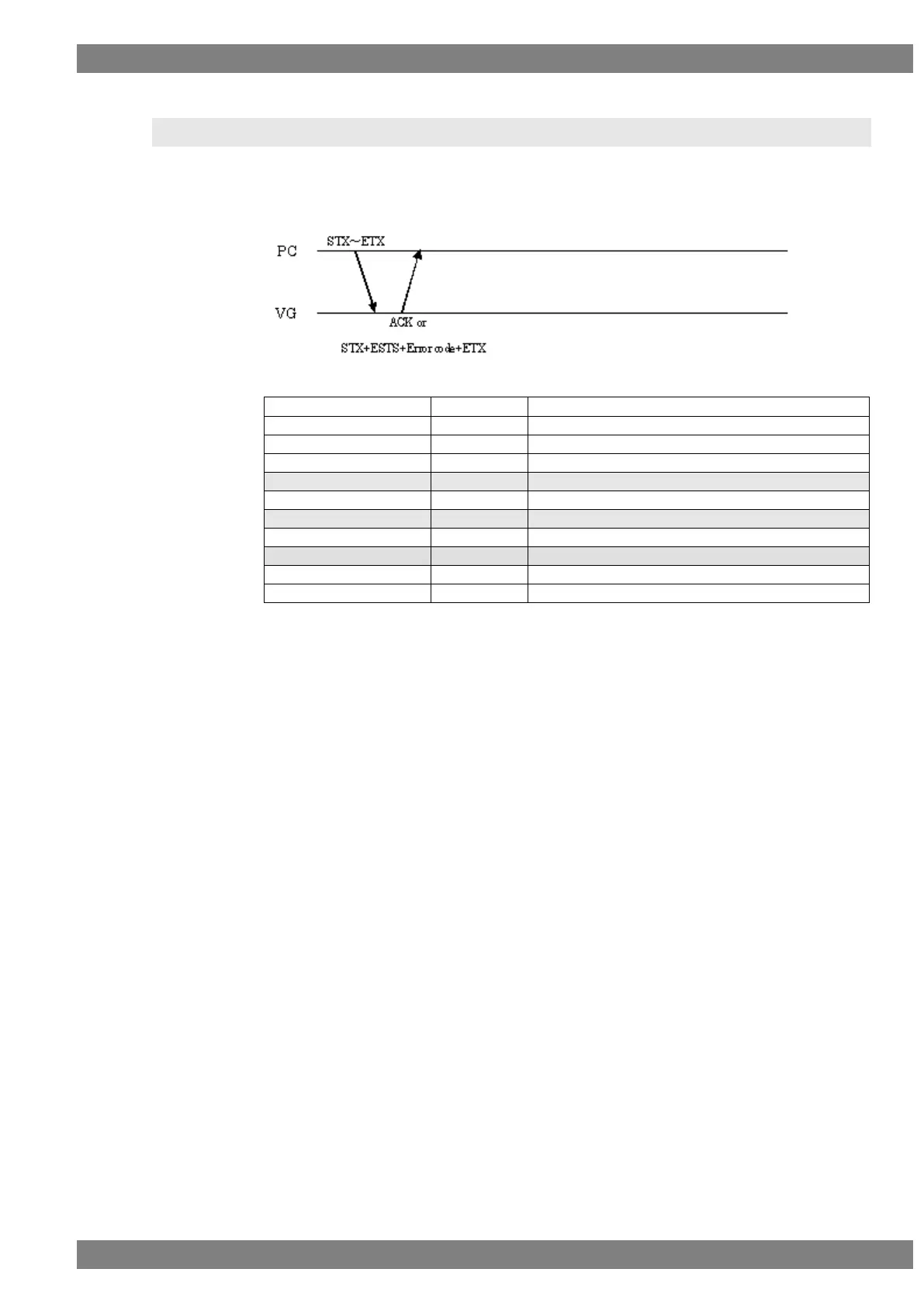

Fig. 3-131
