ASTRO VG-871 - LACT4 [20 H 2 FH]: Action Data Readout

64

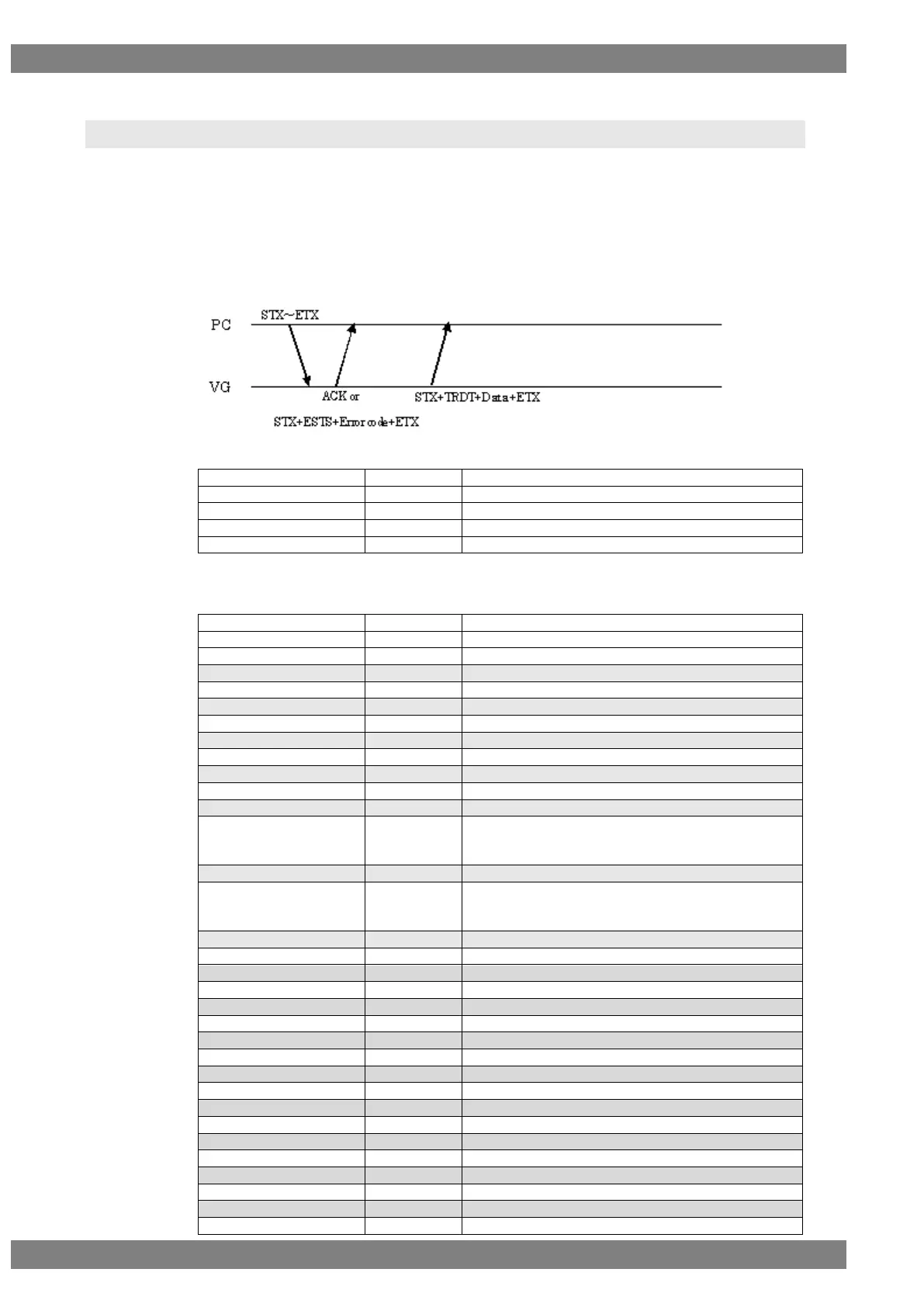

2.16 LACT4 [20H 2FH]: Action data readout
Function: This command reads the action data of the designated program. When the
program number is 0, it reads out the data from the buffer RAM. When the
program has any number from 1001 to 2000, the command reads out from
the fixed data. When the program number is 9999, the command reads the
data from the command work RAM.
Sequence: Type 3
Command:
STX
1 byte
02H
VG4CMD
1 byte
FDH
LACT4
2 bytes
20H 2FH
Program number
1 to 4 bytes
“0” to “2000”, “9999”
ETX
1 byte
03H
Fig. 2-16-1
Data:
STX
1 byte
02H
TRDT
1 byte
10H
Window level
1 byte
“0” = Not provided, “1” = Provided
,
1 byte
2CH (Delimiter)
Window flicker
1 byte
“0” = Not provided, “1” = Provided
,
1 byte
2CH (Delimiter)
Character scroll
1 byte
“0” = Not provided, “1” = Provided
,
1 byte
2CH (Delimiter)
Graphic scroll
1 byte
“0” = Not provided, “1” = Provided
,
1 byte
2CH (Delimiter)
Window scroll
1 byte
“0” = Not provided, “1” = Provided
,
1 byte
2CH (Delimiter)
Character scroll mode
1 byte
“0” = Left, “1” = Right, “2” = Up, “3” = Down,
“4” = Top left, “5” = Bottom left, “6” = Top right,
“7” = Bottom right
,
1 byte
2CH (Delimiter)
Graphic scroll mode
1 byte
“0” = Left, “1” = Right, “2” = Up, “3” = Down,
“4” = Top left, “5” = Bottom left, “6” = Top right,
“7” = Bottom right, “8” = Move display position
,
1 byte
2CH (Delimiter)
Character pattern interval 1
1 to 3 bytes
“1” to “255”
,
1 byte
2CH (Delimiter)
Character pattern interval 2
1 to 3 bytes
“0” to “255”
,
1 byte
2CH (Delimiter)
Character pattern interval 3
1 to 3 bytes
“0” to “255”
,
1 byte
2CH (Delimiter)
Character pattern interval 4
1 to 3 bytes
“0” to “255”
,
1 byte
2CH (Delimiter)
Character pattern step H1
1 to 4 bytes
“1” to “4095”
,
1 byte
2CH (Delimiter)
Character pattern step H2
1 to 3 bytes
“0” to “255”
,
1 byte
2CH (Delimiter)
Character pattern step H3
1 to 3 bytes
“0” to “255”
,
1 byte
2CH (Delimiter)
Character pattern step H4
1 to 3 bytes
“0” to “255”
,
1 byte
2CH (Delimiter)
Character pattern step V1
1 to 4 bytes
“1” to “4095”
