Chapter 4 INDIVIDUAL FORMATS FOR CONTROL COMMANDS
333
3.35 ALLSCOL4 [28H 70H] : RGB output ON/IFF and Color
setting
Function : this command sets RGB output ON/OFF and colors of all planes.

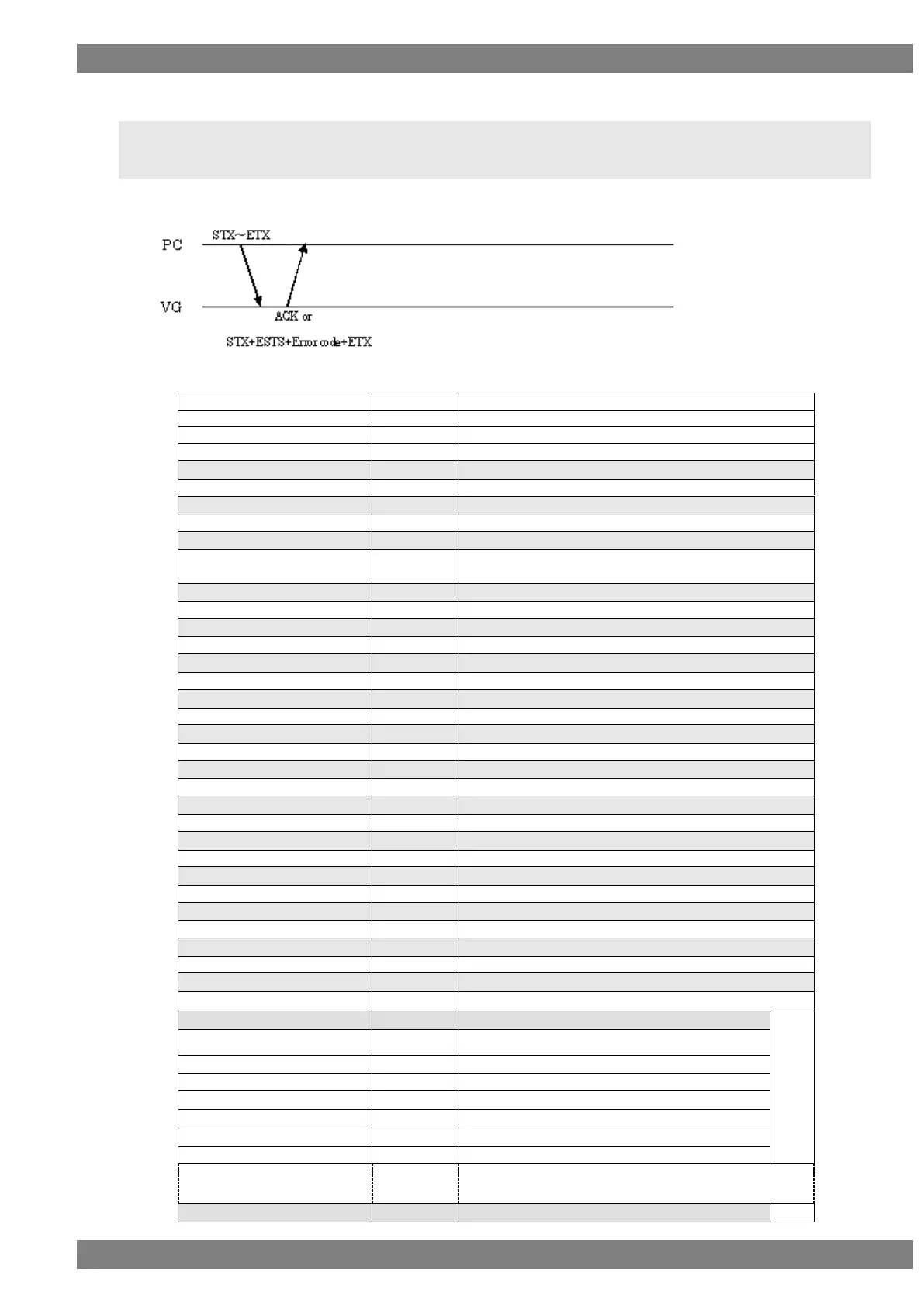

Sequence： Type 2
Command :
STX
1 BYTE
02H
VG4CMD
1 BYTE
FDH
ALLSCOL4
2 BYTE
28H 70H
R
1 BYTE
"0"=OFF, "1"=ON
,
1 BYTE
2CH (Delimiter)
G
1 BYTE
"0"=OFF, "1"=ON
,
1 BYTE
2CH (Delimiter)
B
1 BYTE
"0"=OFF, "1"=ON
,
1 BYTE
2CH (Delimiter)
Bit Mode
1-2 BYTE
"0", "8"-"16"
In case it is set as “0”, RGB value is set as it is.
,
1 BYTE
2CH (Delimiter)
Plane Code
1 BYTE
"C" code of character plane
,
1 BYTE
2CH (Delimiter)
R
1-5 BYTE
"0"-"65535"
,
1 BYTE
2CH (Delimiter)
G
1-5 BYTE
"0"-"65535"
,
1 BYTE
2CH (Delimiter)
B
1-5 BYTE
"0"-"65535"
,
1 BYTE
2CH (Delimiter)
Plane Code
1 BYTE
"W" code of Window plane
,
1 BYTE
2CH (Delimiter)
R
1-5 BYTE
"0"-"65535"
,
1 BYTE
2CH (Delimiter)
G
1-5 BYTE
"0"-"65535"
,
1 BYTE
2CH (Delimiter)
B
1-5 BYTE
"0"-"65535"
,
1 BYTE
2CH (Delimiter)
Plane Code
1 BYTE
"B" code of background
,
1 BYTE
2CH (Delimiter)
R
1-5 BYTE
"0"-"65535"
,
1 BYTE
2CH (Delimiter)
G
1-5 BYTE
"0"-"65535"
,
1 BYTE
2CH (Delimiter)
B
1-5 BYTE
"0"～"65535"
,
1 BYTE
2CH (Delimiter)
#1
Palette No.
1-3 BYTE
"0"-"255" Palette No. of graphic plane
,
1 BYTE
2CH (Delimiter)
R
1-5 BYTE
"0"-"65535"
,
1 BYTE
2CH (Delimiter)
G
1～5 BYTE
"0"-"65535"
,
1 BYTE
2CH (Delimiter)
B
1-5 BYTE
"0"-"65535"
,
1 BYTE
2CH (Delimiter)
#16
