4.44 SPbPrD [92H]: Color difference coefficient data
registration
Function: This command registers the color difference coefficient data.
Note) This command is not supported by the VG-880 generator.
Sequence: Type 4
Command:
STX
1 byte
02H
SPbPrD
1 byte
92H
Color difference table
No.
1 byte
“0” to “3”
ETX
1 byte
03H

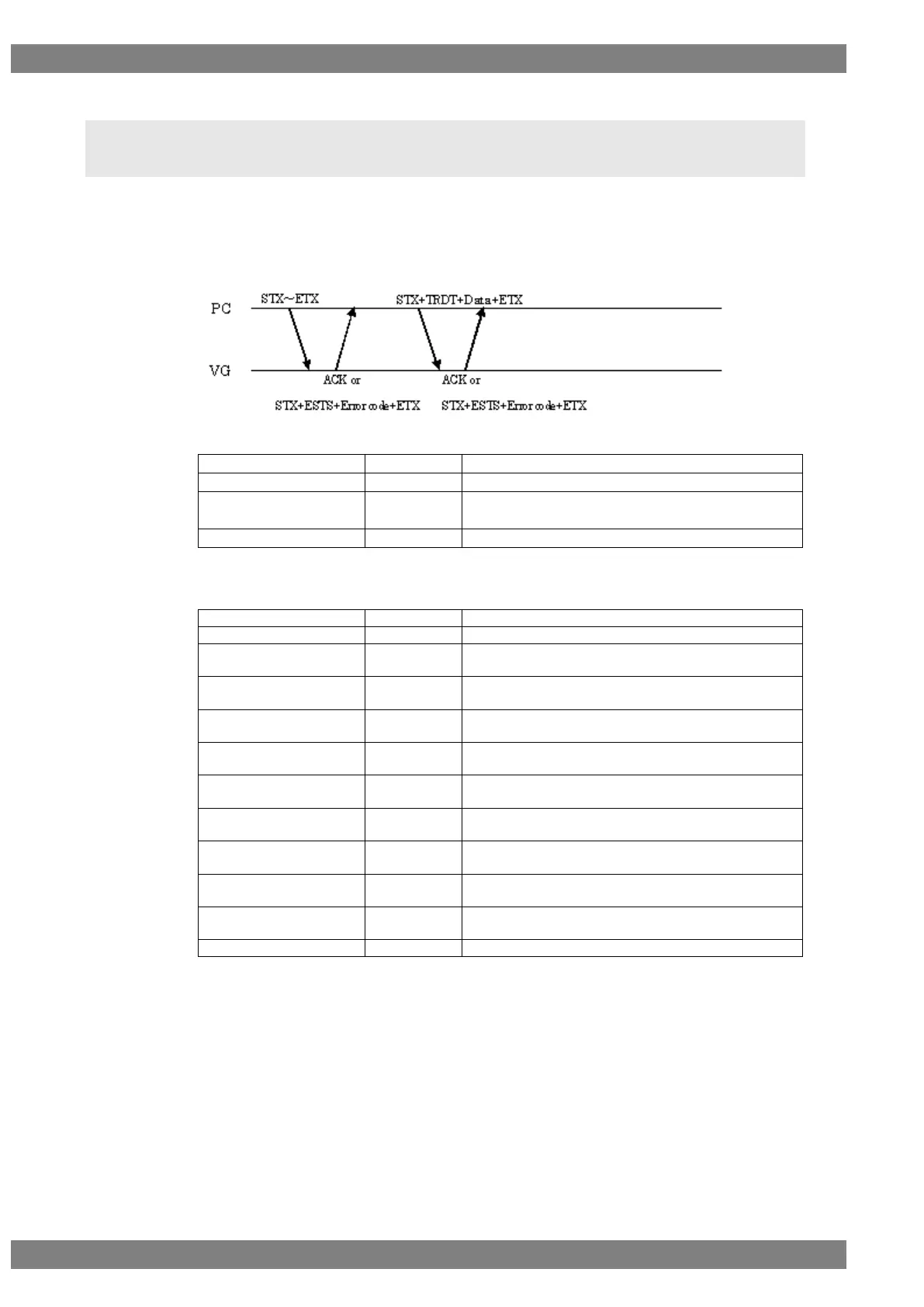

Fig. 4-44-1
Data:
STX
1 byte
02H
TRDT
1 byte
10H
YR
5 bytes
“00000” to “10000”
Total value of YG + YB must be set to under 10000.
YG
5 bytes
“00000” to “10000”
Total value of YR + YB must be set to under 10000.
YB
5 bytes
“00000” to “10000”
Total value of YR + YG must be set to under 10000.
PbR
5 bytes
“00000” to “05000”
Total value of PbG + PbB must be set to under 10000.
PbG
5 bytes
“00000” to “05000”
Total value of PbR + PbB must be set to under 10000.
PbB
5 bytes
“00000” to “05000”
Total value of PbR + PbG must be set to under 10000.
PrR
5 bytes
“00000” to “05000”
Total value of PrR + PrG must be set to under 10000.
PrG
5 bytes
“00000” to “05000”
Total value of PrR + PrB must be set to under 10000.
PrB
5 bytes
“00000” to “05000”
Total value of PrR + PrG must be set to under 10000.
ETX
1 byte
-
Fig. 4-44-2
