2.136 EXPDN4 [24H 20H]: Program data execution
Function: This command designates the program number and executes the program.
When the program number is 9999, it executes the data written in the
command work RAM.
Sequence: Type 2
Command:
STX
1 byte
02H
VG4CMD
1 byte
FDH
EXPDN4
2 bytes
24H 20H
Program number
1 to 4 bytes
“0” to “2000”, “9999”
,
1 byte
2CH (Delimiter)
Execution mode
1 byte
“0” = Program, “1” = Timing, “2” = Pattern
ETX
1 byte
03H

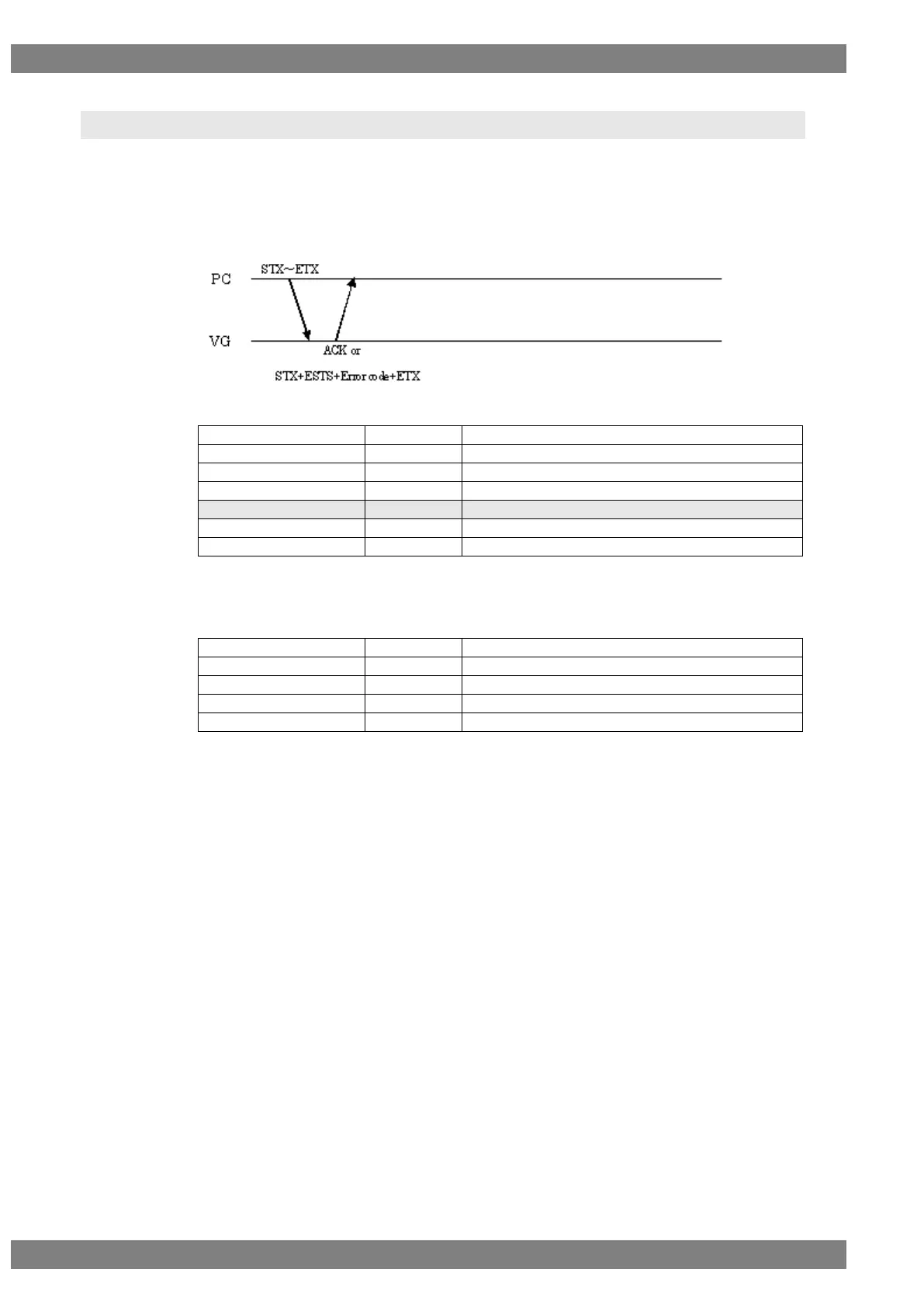

Fig. 2-136-1
When the execution mode setting has been omitted as in the figure below, the program
is executed in the program mode.
STX
1 byte
02H
VG4CMD
1 byte
FDH
EXPDN4
2 bytes
22H 20H
Program number
1 to 4 bytes
“0” to “2000”, “9999”
ETX
1 byte
03H
Fig. 2-136-2
