ASTRO VG-871 - SWSS4 [20 H 6 FH]: WSS Data Setting

154
2.77 SWSS4 [20H 6FH]: WSS data setting
Function: This command sets the WSS data of the designated program number.
When the program number is 0, it writes the data into the buffer RAM. When
it is 9999, it writes the data into the command work RAM.

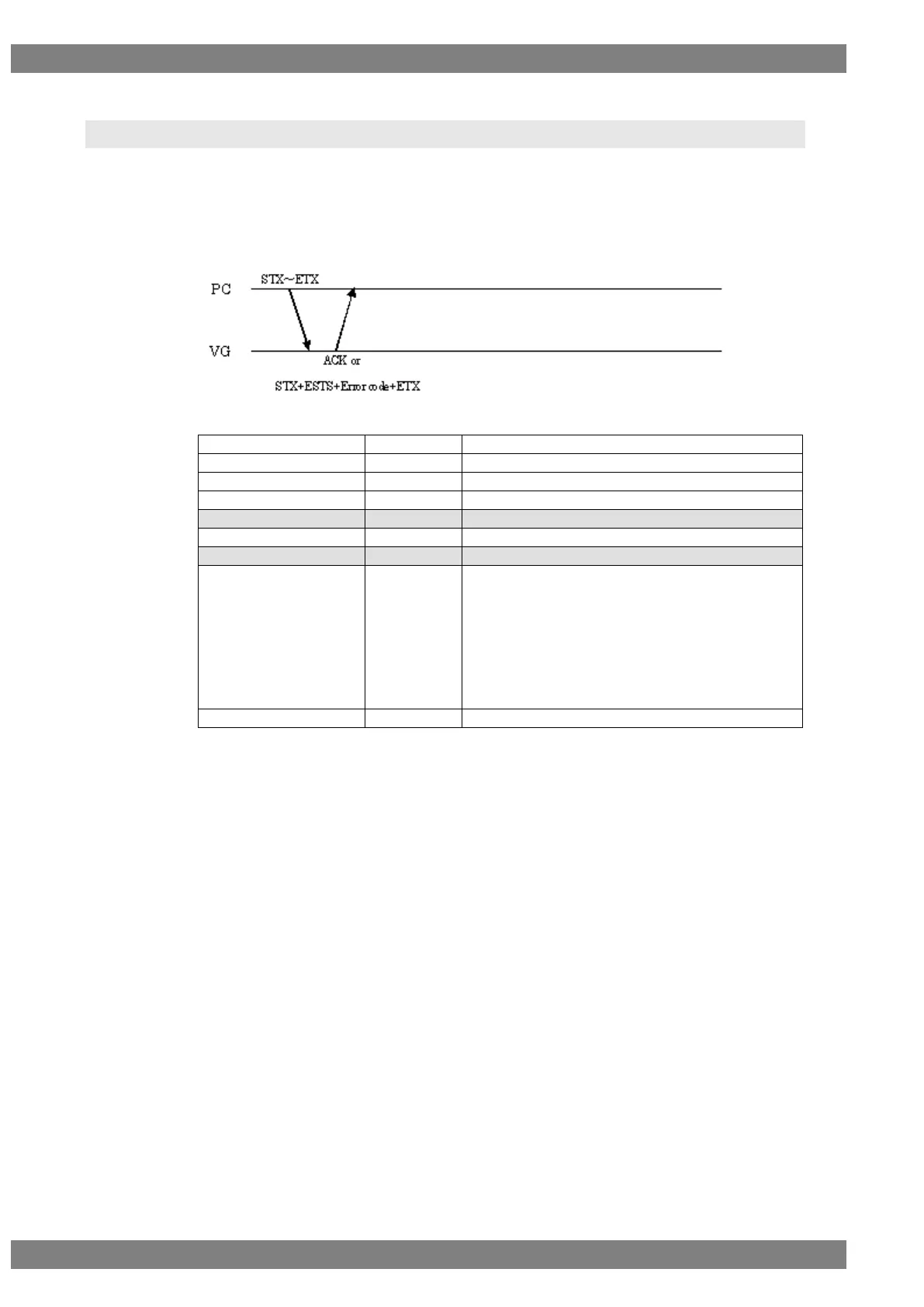

Sequence: Type 2
Parameters:
STX
1 byte
02H
VG4CMD
1 byte
FDH
SWSS4
2 bytes
20H 6EH
Program number
1 to 4 bytes
“0” to “1000”, “9999”
,
1 byte
2CH (Delimiter)
Enable
1 byte
“0” = OFF, “1” = ON
,
1 byte
2CH (Delimiter)
AspectRatio
1 byte
“0” = Full Format 4:3
“1” = LB 14:9 center
“2” = LB 14:9 top
“3” = LB 16:9 center
“4” = LB 16:9 top
“5” = LB >16:9 center
“6” = Full Format 14:9
“7” = Full Format 16:9
ETX
1 byte
03H
Fig. 2-77-1
