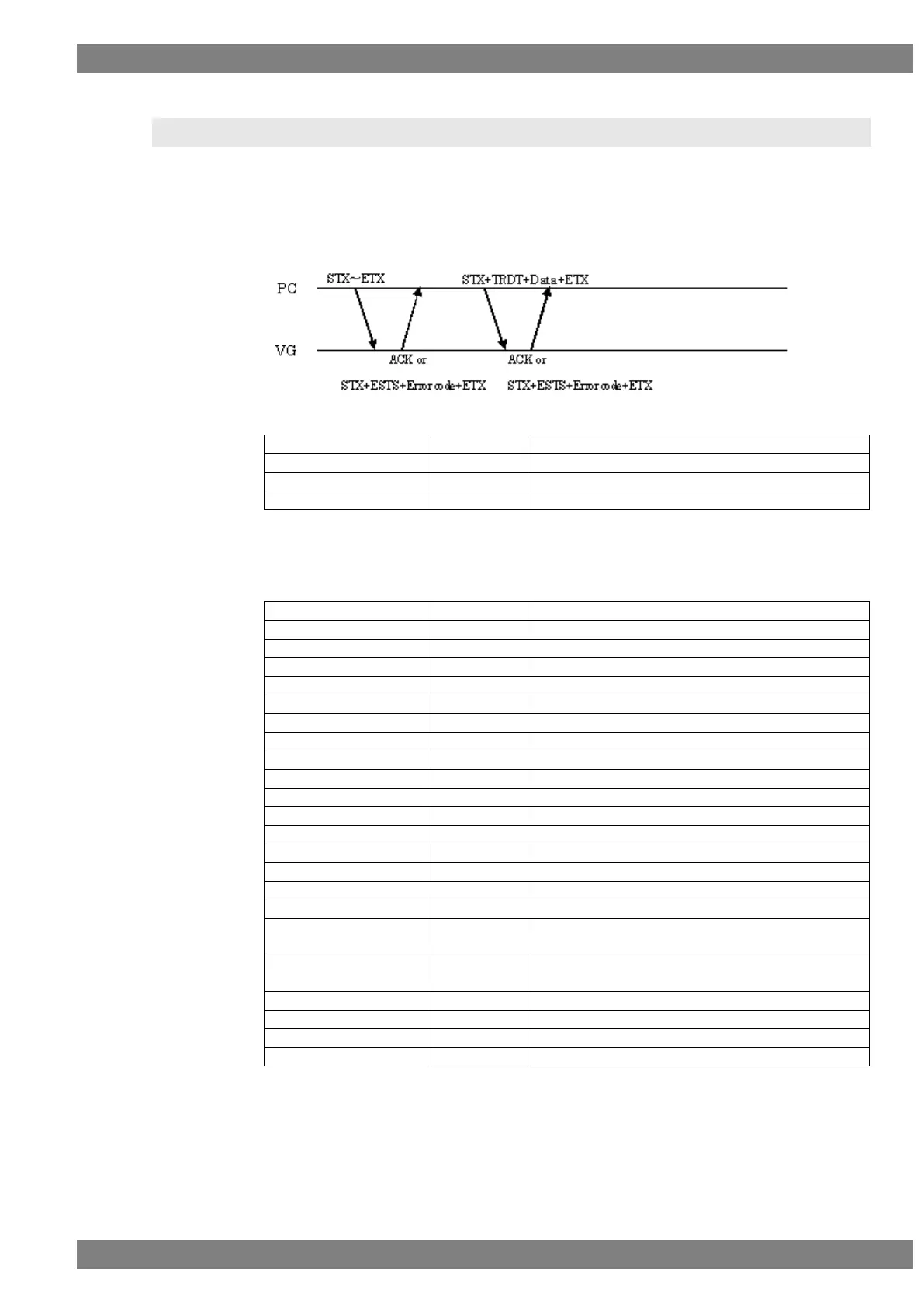

Chapter 4 INDIVIDUAL FORMATS FOR CONTROL COMMANDS
4.5 SOT [4AH]: Output condition data registration
Function: This command registers the output condition data of the designated
program number. The registered data is either digital data or analog data.
When the program number is 0, it writes the data into the buffer RAM.
Sequence: Type 4
Command:
Fig. 4-5-1
Data:
(1) Digital data
“0” = 1/1 clock, “1” = 1/2 clock
Fixed at “0” * This function cannot be used.
Fixed at “0” * This function cannot be used.
Fixed at “0” * This function cannot be used.
Fixed at “0” * This function cannot be used.
Fixed at “0” * This function cannot be used.
“1” = 4ns, “2” = 8ns, “3” = 12ns, “4” = 16ns, “5” =
20ns, “6” = 24ns, “7” = 28ns, “8” = 32ns
“1” = 1bit, “2” = 2 bits, “3” = 3 bits, “4” = 4 bits,
“5” = 5 bits, “6” = 6 bits, “7” = 7 bits, “8” = 8 bits
Fig. 4-5-2
