ASTRO VG-871 - SVIF4 [20 H 7 EH]: Vendor Specific Infoframe Data Setting

Chapter 2 INDIVIDUAL FORMATS FOR VG CONTROL COMMANDS
177

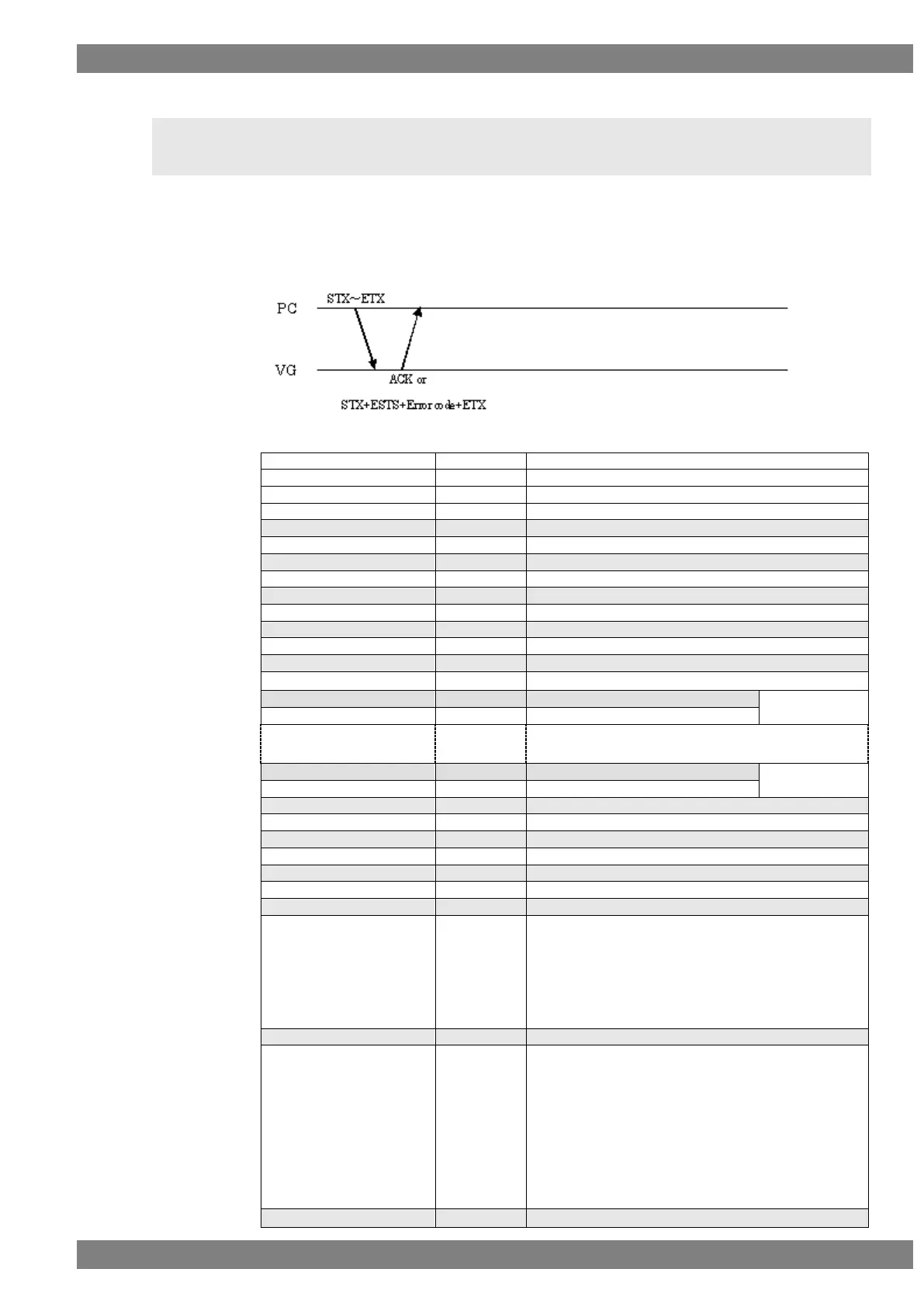

2.92 SVIF4 [20H 7EH]: Vendor Specific InfoFrame data
setting
Function: This command sets the Vendor Specific InfoFrame data of the designated program
number. When the program number is 0, it writes the data into the buffer RAM.
When it is 9999, it writes the data into the command work RAM.
Sequence: Type 2
Parameters:
STX
1 BYTE
02H
VG4CMD
1 BYTE
FDH
SVIF4
2 BYTE
20H 7EH
Program No.
1 to 4 bytes
“0” to “1000”, “9999”
,
1 BYTE
2CH (Delimiter)
On/Off
1 BYTE
"0"=OFF "1"=ON
,
1 BYTE
2CH (Delimiter)
Type
1 BYTE
"1"=1
,
1 BYTE
2CH (Delimiter)
Version
1 BYTE
"1"=1
,
1 BYTE
2CH (Delimiter)
IEEE ID
3 BYTE
"000000" to "FFFFFF"
,
1 BYTE
2CH (Delimiter)
Payload Length
1～2 BYTE
"1" to "23"
,
1 BYTE
2CH (Delimiter)
#1
Payload 1
2 BYTE
"00" to "FF"
,
1 BYTE
2CH (Delimiter)
#23
Payload 23
2 BYTE
"00" to "FF"
,
1 BYTE
2CH (Delimiter)
Rsv
1 BYTE
Fixed at "0"
,
1 BYTE
2CH (Delimiter)
HDMI VideoFormat
1 BYTE
"0"=Non,"1"=Ext Resolution format, "2"=3D format
,
1 BYTE
2CH (Delimiter)
HDMI VIC
1 BYTE
"1" to "4"
,
1 BYTE
2CH (Delimiter)
3D structure
1 BYTE
"0"=Frame Packing
"1"=Field Alternative
"2"=Line Alternative
"3"=Side-by-Side(Full)
"4"=L + depth
"5"=L + depth + graphics + gra-depth
"6"=Side-by-Side(Half)
,
1 BYTE
2CH (Delimiter)
3D Extension
1 BYTE
"0"=HorSubSampling (O/L,O/R)
"1"=HorSubSampling (O/L,E/R)
"2"=HorSubSampling (E/L,O/R)
"3"=HorSubSampling (E/L,E/R)
"4"=Quincunx Matrix(O/L,O/R)
"5"=Quincunx Matrix(O/L,E/R)
"6"=Quincunx Matrix(E/L,O/R)
"7"=Quincunx Matrix(E/L,E/R)
Note) these are effective when 3D structure="6".
,
1 BYTE
2CH (Delimiter)
