ASTRO VG-871 - G8 LINE [E1 H]: Straight Line Drawing (Color Designation)

Chapter 5 INDIVIDUAL DRAWING COMMAND FORMATS
451
5.18 G8LINE [E1H]: Straight line drawing
(color designation)
Function : This command draws straight lines on the color bar plane (8-bit plane). The start and end
point coordinates and the color are designated as the parameters.

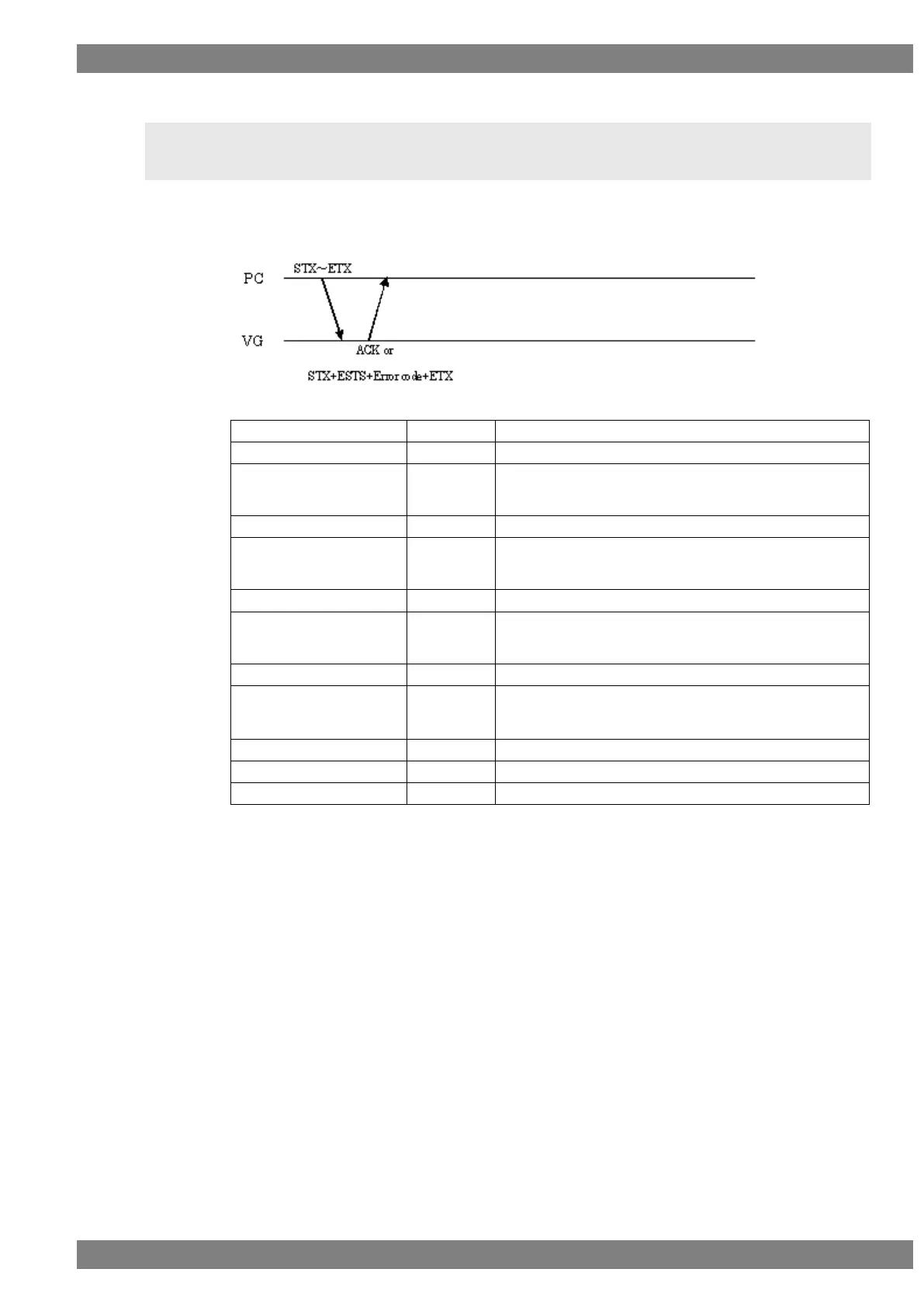

Sequence : Type 2
Parameter :
STX
1 byte
02H
G8LINE
1 byte
E1H
Start point coordinate X
2 to 5 bytes
Sign code + “0” to “4095” e.g. 100 “0100”
Sign code: “0” = +, “1” = -
*-2048 (“12048”) to +4096 (“04095”) in numerical terms
Data delimiter
1 byte
“,”
Start point coordinate Y
2 to 5 bytes
Sign code + “0” to “4095” e.g. 100 “0100”
Sign code: “0” = +, “1” = -
*-2048 (“12048”) to +4096 (“04095”) in numerical terms
Data delimiter
1 byte
“,”
End point coordinate X1
2 to 5 bytes
Sign code + “0” to “4095” e.g. 100 “0100”
Sign code: “0” = +, “1” = -
*-2048 (“12048”) to +4096 (“04095”) in numerical terms
Data delimiter
1 byte
“,”
End point coordinate Y1
2 to 5 bytes
Sign code + “0” to “4095” e.g. 100 “0100”
Sign code: “0” = +, “1” = -
*-2048 (“12048”) to +4096 (“04095”) in numerical terms.
Data delimiter
1 byte
“,”
Color
1 to 3 bytes
“0” to “255”
ETX
1 byte
03H
Fig. 5-18-1
