ASTRO VG-871 - LGROUP4 [20 H 53 H]: Group Data Readout

112

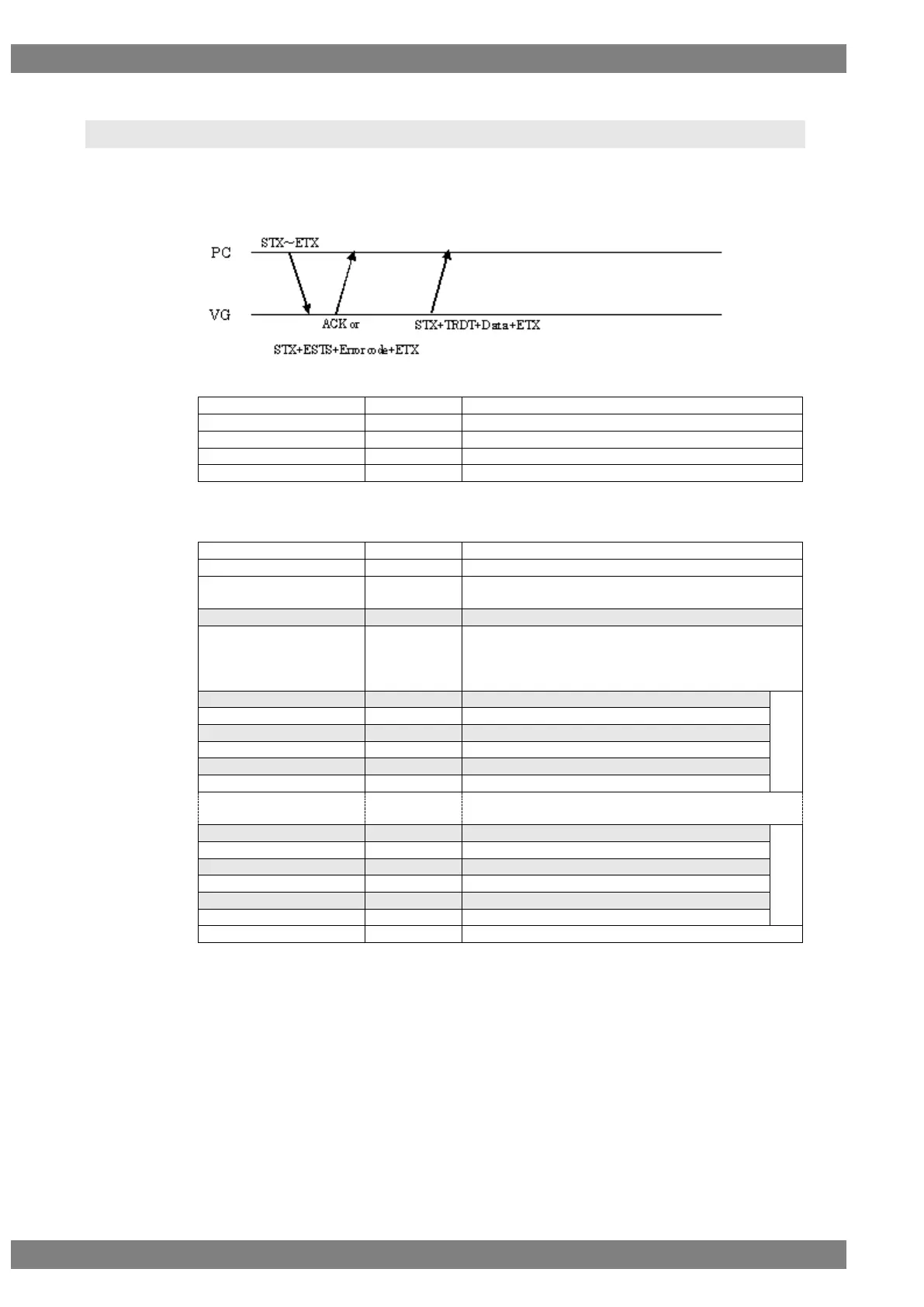

2.49 LGROUP4 [20H 53H]: Group data readout
Function: This command reads the data of the designated group number.
Sequence: Type 3
Command:
STX
1 byte
02H
VG4CMD
1 byte
FDH
LGROUP4
2 bytes
20H 53H
Group No.
1 or 2 bytes
“1” to “99”
ETX
1 byte
03H
Fig. 2-49-1
Data:
STX
1 byte
02H
TRDT
1 byte
10H
Number of characters in
group name
1 or 2 bytes
“1” to “20”
,
1 byte
2CH (Delimiter)
Group name
20 bytes
* 20 ASCII characters (When the string contains
fewer than 20 characters, enter a space or spaces
after the characters to bring the number of
characters up to 20)
,
1 byte
2CH (Delimiter)
#1
Timing data program No.
1 to 4 bytes
“0” to “2000” (“0” = Not registered)
,
1 byte
2CH (Delimiter)
Pattern data program No.
1 to 4 bytes
“0” to “2000” (“0” = Not registered)
,
1 byte
2CH (Delimiter)
Interval time (Sec)
1 to 3 bytes
“0” to “999”
,
1 byte
2CH (Delimiter)
#98
Timing data program No.
1 to 4 bytes
“0” to “2000” (“0” = Not registered)
,
1 byte
2CH (Delimiter)
Pattern data program No.
1 to 4 bytes
“0” to “2000” (“0” = Not registered)
,
1 byte
2CH (Delimiter)
Interval time (Sec)
1 to 3 bytes
“0” to “999”
ETX
1 byte
03H
Fig. 2-49-2
