5.2.2 CCIRCPA [D5H]: Filled-in circle clearing
Function: This command clears the filled-in circle on the graphic plane (1-bit plane).
The center coordinates and radius of the circle are set by the parameters.
Sequence: Type 2
Parameter:
STX
1 byte
02H
CCIRCPA
1 byte
D5H
Center X coordinate
2 to 5 bytes
Sign code + “0” to “4095” e.g. 100 “0100”
Sign code: “0” = +, “1” = -
*-2048 (“12048”) to +4096 (“04095”) in numerical
terms
Data delimiter
1 byte
“, “
Center Y coordinate
2 to 5 bytes
Sign code + “0” to “4095” e.g. 100 “0100”
Sign code: “0” = +, “1” = -
*-2048 (“12048”) to +4096 (“04095”) in numerical
terms
Data delimiter
1 byte
“, “
Radius
1 to 4 bytes
“1” to “4095”
ETX
1 byte
03H

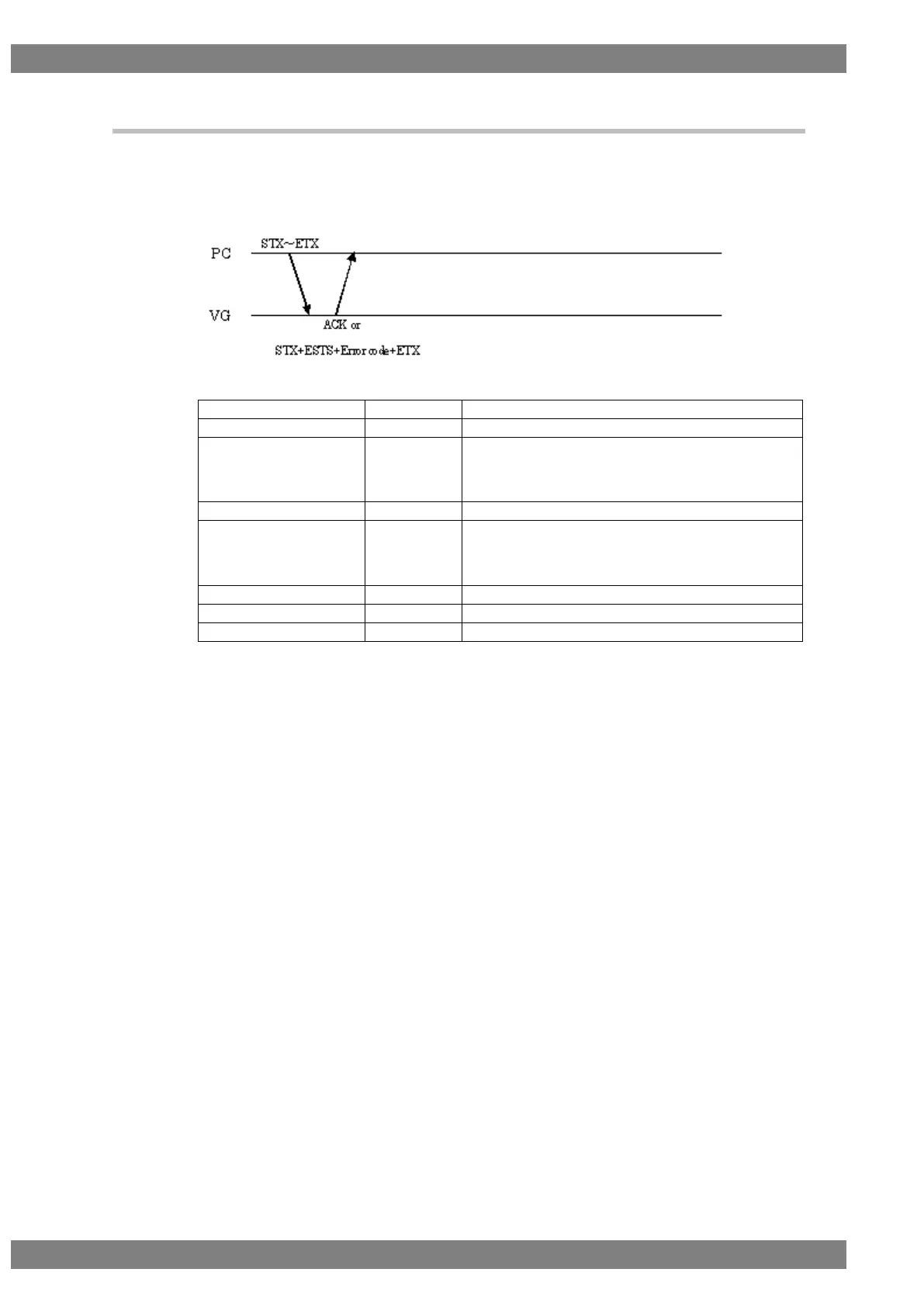

Fig. 5-2-2
* A sign code is provided for each of the center coordinates.
