ASTRO VG-871 - CSQPA [32 H]: Filled-In Square Clearing

438
5.10.2 CSQPA [32H]: Filled-in square clearing
Function: This command clears the filled-in square on the graphic plane (1-bit plane).
The start and end point coordinates are set by the parameters.

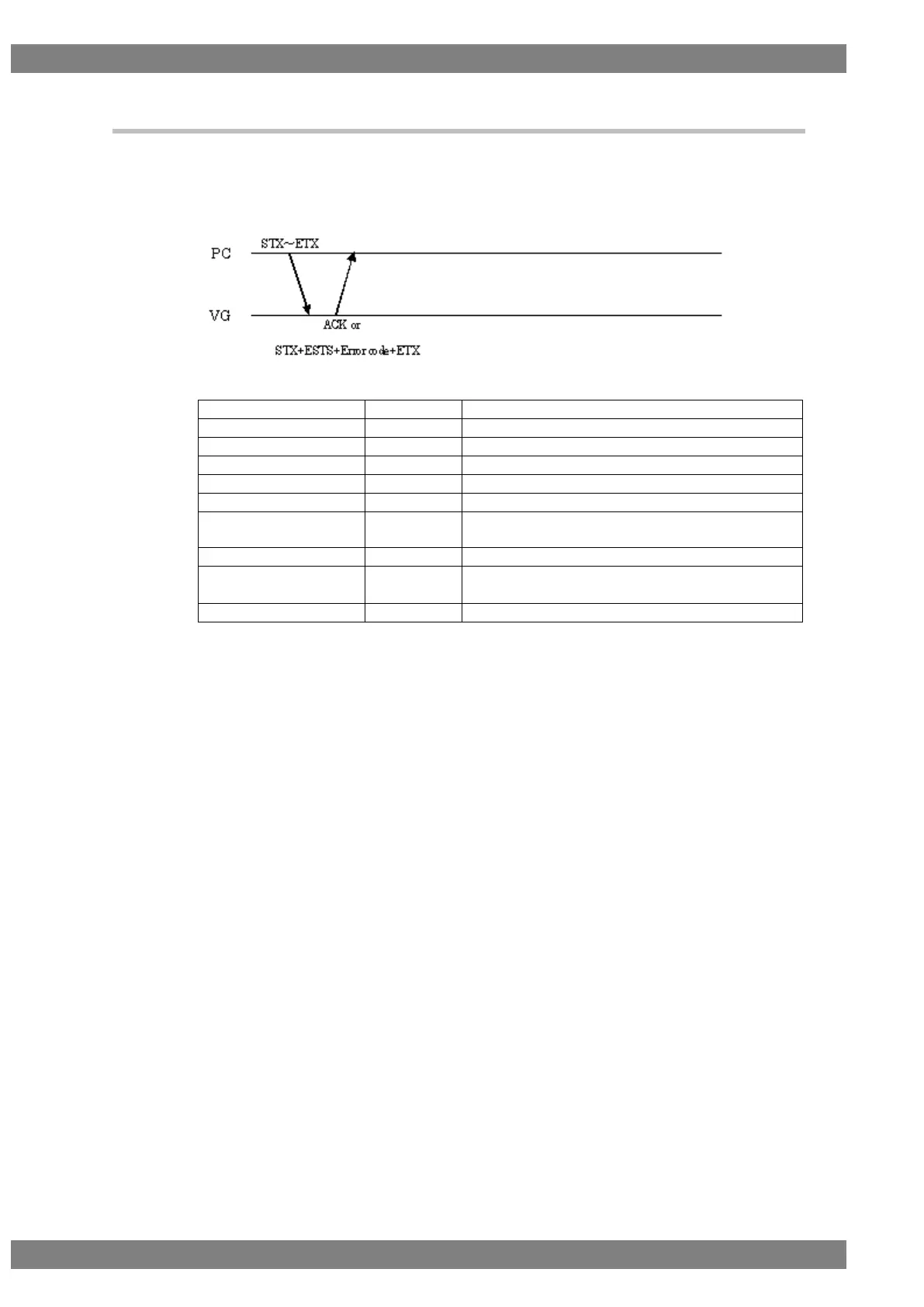

Sequence: Type 2
Parameters:
STX
1 byte
02H
CSQPA
1 byte
32H
Top left coordinate X
1 to 4 bytes
“0” to “4095”
Data delimiter
1 byte
“, “
Top left coordinate Y
1 to 4 bytes
“0” to “4095”
Data delimiter
1 byte
“, “
Bottom right
coordinate X 1
1 to 4 bytes
“0” to “4095”
Data delimiter
1 byte
“, “
Bottom right
coordinate Y 1
1 to 4 bytes
“0” to “4095”
ETX
1 byte
03H
Fig. 5-10-2
* X < X1, Y < Y1
