2.71 SEP4 [20H 69H]: EDID port data setting
Function: This command sets the EDID port data of the designated program number.
When the program number is 0, it writes the data into the buffer RAM. When
it is 9999, it writes the data into the command work RAM.
Sequence: Type 2
Parameters:
STX
1 byte
02H
VG4CMD
1 byte
FDH
SEP4
2 bytes
20H 69H
Program number
1 to 4 bytes
“0” to “1000”, “9999”
,
1 byte
2CH (Delimiter)
Port
1 byte
“1” = DVI-1
“2” = DVI-2
“3” = HDMI-1
“4” = HDMI-2
“5” = PC-DVI
“6” = PC-VGA
“7” = TV-VGA/DVI
"8" = Reserved
"9" = DisplayPort1
"10" = DisplayPort2
"11"=DVI(iTMDS)1
"12"=DVI(iTMDS)2
"13"=iTMDS-Quad1,2
"14"=iTMDS-Quad3,4
"15"=HDMI-3 (for VG-882, 883, 876)
"16"=HDMI-4 (for VG-882, 883, 876)
Below is for VG-876
"17"=HDMI5 "18"=HDMI6 "19"=HDMI7
"20"=HDMI8 "21"=HDMI9 "22"=HDMI10
"23"=HDMI11 "24"=HDMI12 "25"=HDMI13
"26"=HDMI14 "27"=HDMI15 "28"=HDMI16
"29"=DisplayPort3 "30"=DisplayPort4
"31"=DisplayPort5 "32"=DisplayPort6
"33"=DisplayPort7 "34"=DisplayPort8
ETX
1 byte
03H

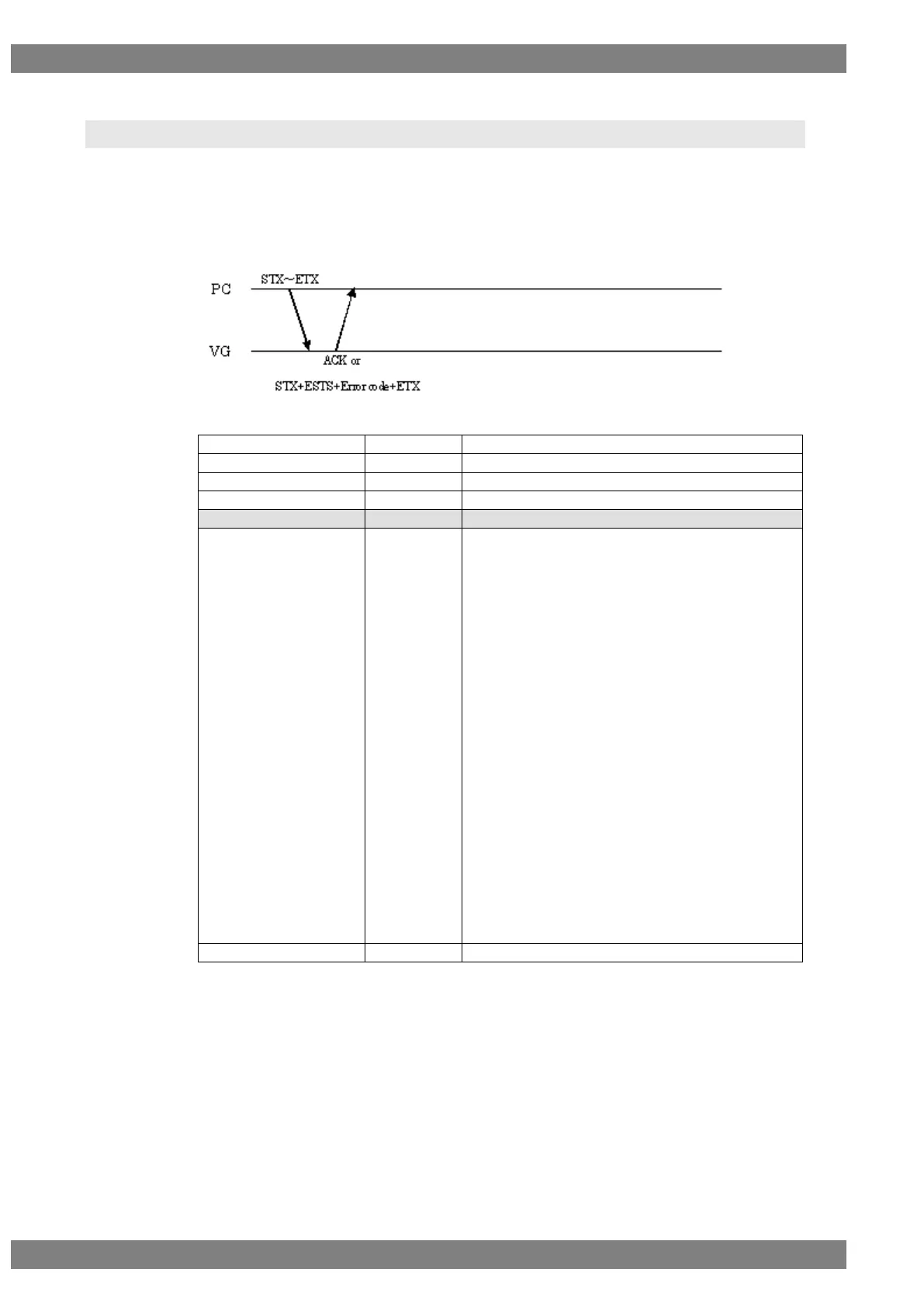

Fig. 2-71-1
