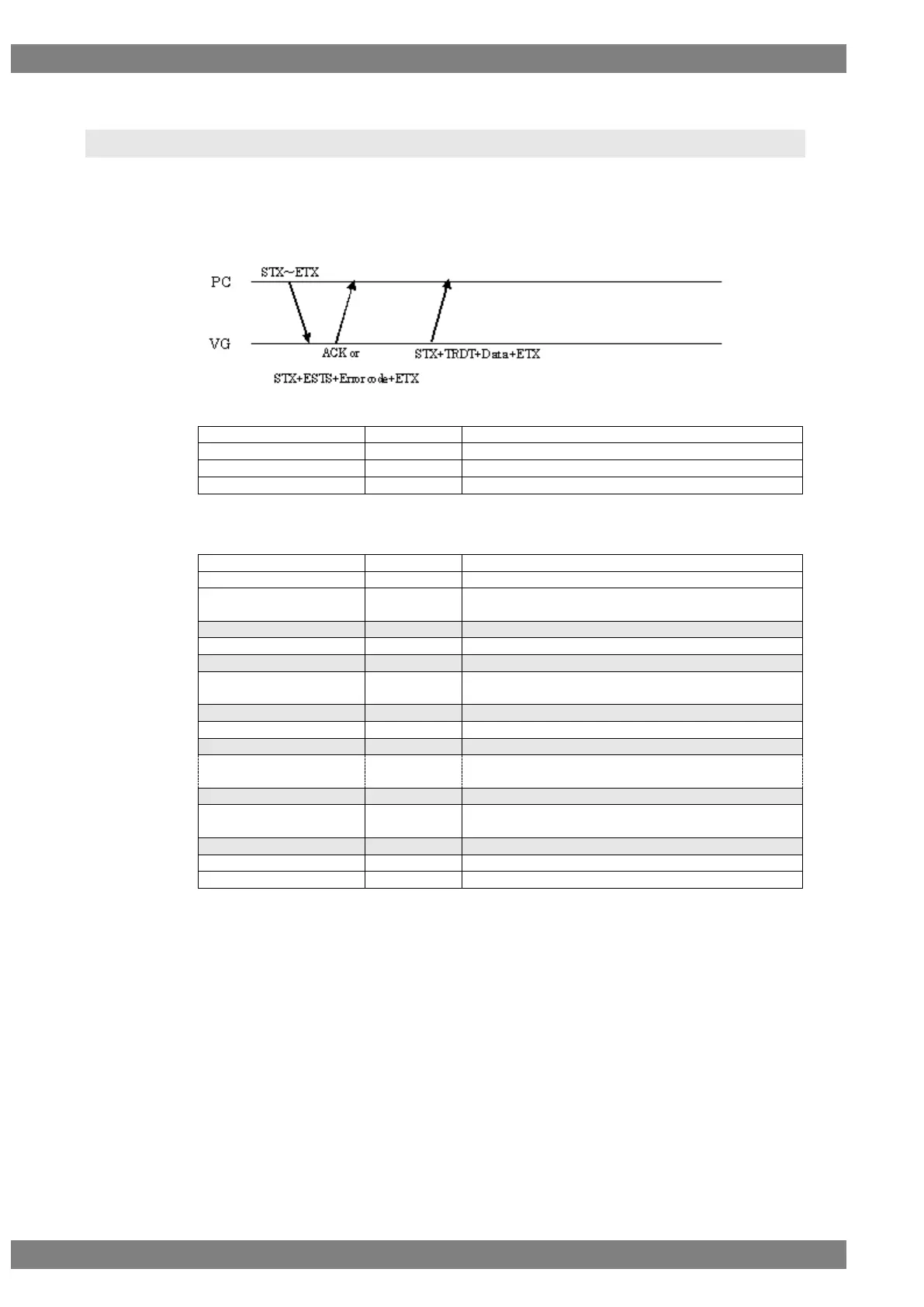

2.51 LCFG4 [20H 55H]: Config data readout
Function: This command reads the system setting (config) data from the VG
generator.
Sequence: Type 3
Command:
STX
1 byte
02H
VG4CMD
1 byte
FDH
LCFG4
2 bytes
20H 55H
ETX
1 byte
03H
Fig. 2-51-1
Data:
STX
1 byte
02H
TRDT
1 byte
10H
Parameter 1 identification
code
1 to 3 bytes
“0” to “999”
,
1 byte
2CH (Delimiter)
Parameter 1 setting
? bytes
?
,
1 byte
2CH (Delimiter)
Parameter 2 identification
code
1 to 3 bytes
“0” to “999”
,
1 byte
2CH (Delimiter)
Parameter 2 setting
? bytes
?
,
1 byte
2CH (Delimiter)
,
1 byte
2CH (Delimiter)
Parameter N
identification code
1 to 3 bytes
“0” to “999”
,
1 byte
2CH (Delimiter)
Parameter N setting
? bytes
?
ETX
1 byte
03H
Fig. 2-51-2
For details on the identification codes, refer to Fig. 2-50-2.
