ASTRO VG-871 - SDC [61 H]: D Connector Output Condition Registration

398
4.49 SDC [61H]: D connector output condition
registration
Function: This command registers the D connector output conditions of the
designated program number.
If the program number is 0, it writes the data into the buffer RAM.

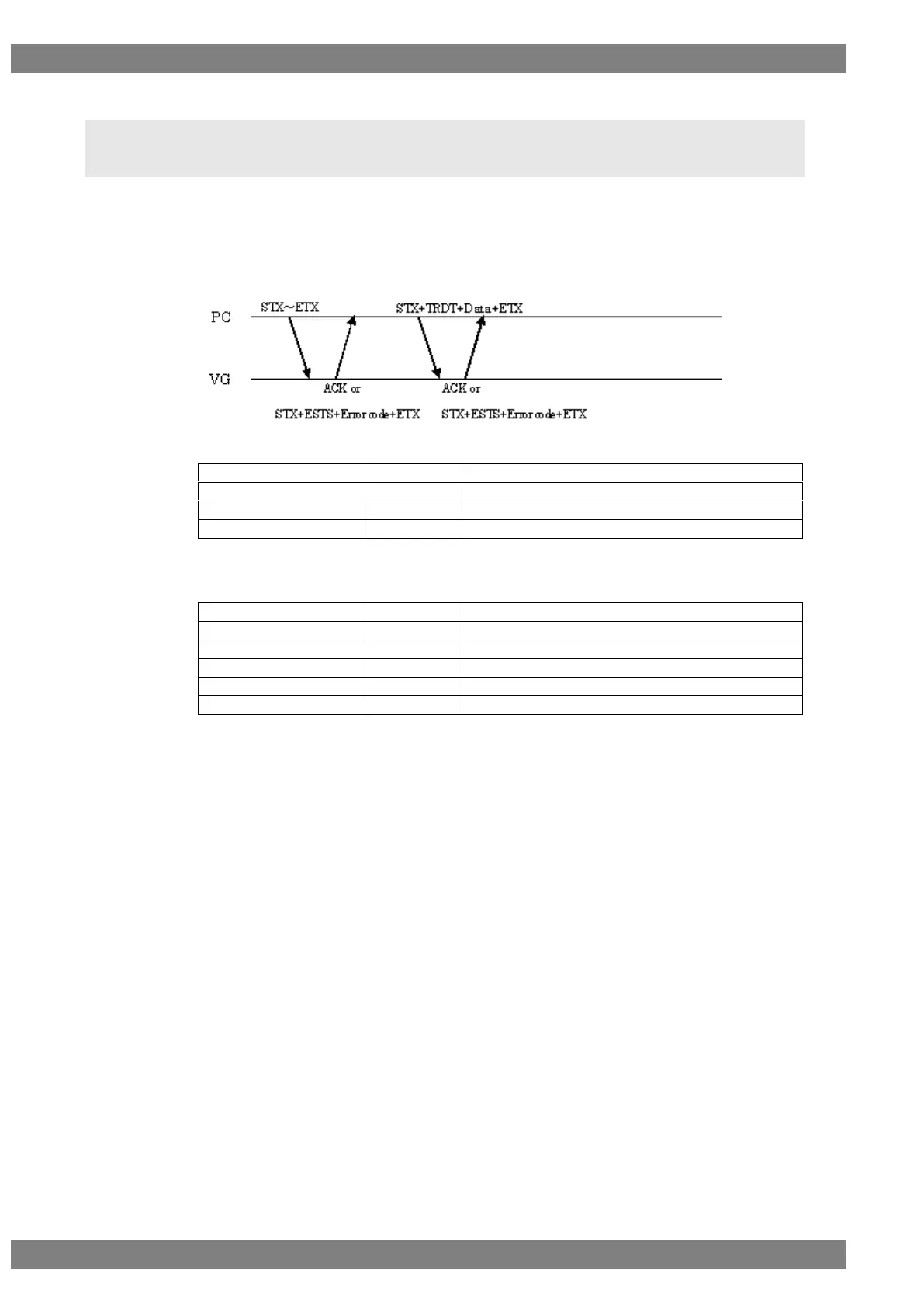

Sequence: Type 4
Command:
STX
1 byte
02H
SDC
1 byte
61H
Program number
1 to 3 bytes
“0” to “849”
ETX
1 byte
03H
Fig. 4-49-1
Data:
STX
1 byte
02H
TRDT
1 byte
10H
D connector LINE1
1 byte
“0” = 480, “1” = 720, “2” = 1080
D connector LINE2
1 byte
“0” = Interlace, “1” = Progressive
D connector LINE3
1 byte
“0” = 4:3, “1” = 4:3LB, “2” = 16:9
ETX
1 byte
03H
Fig. 4-49-2
