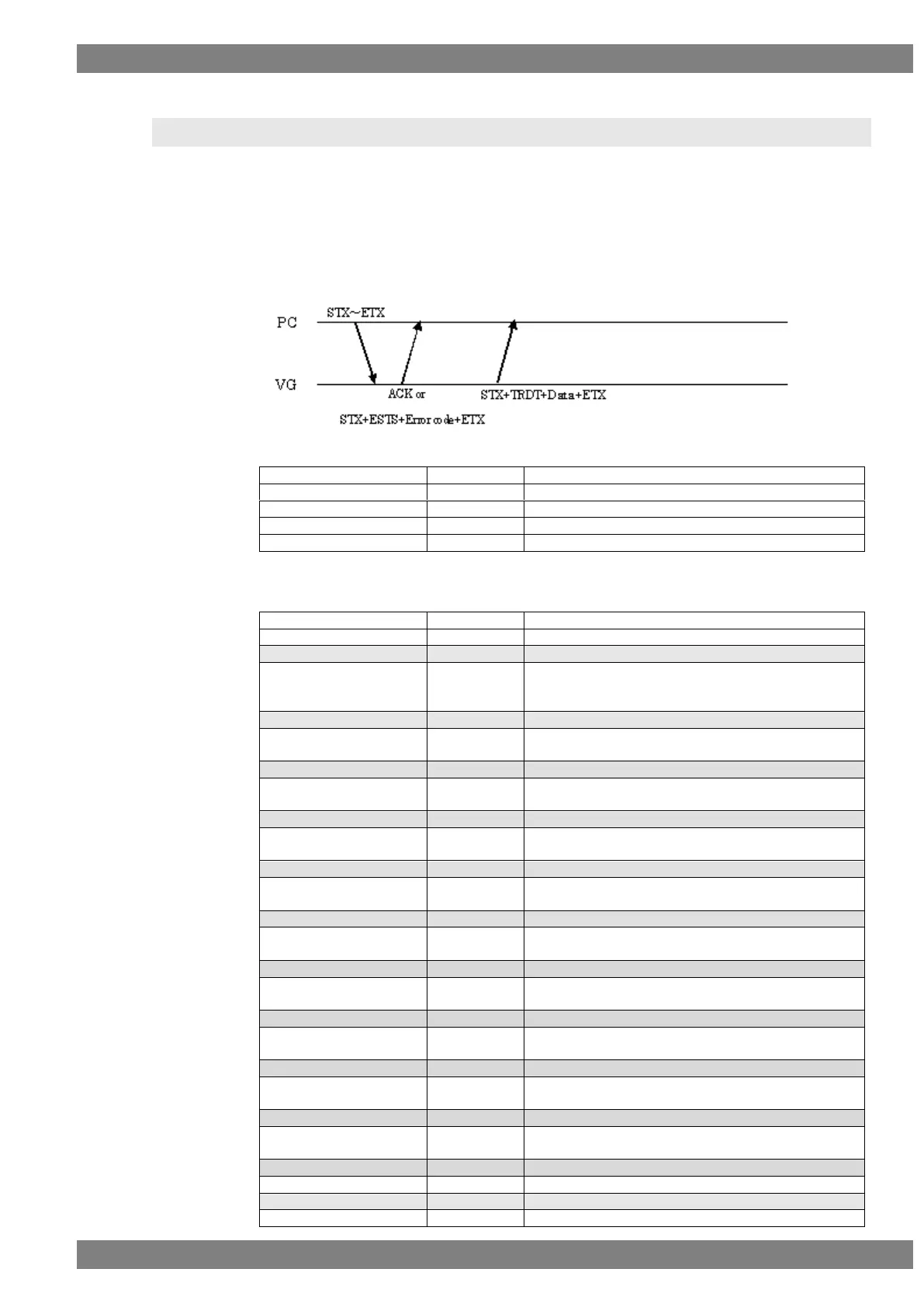

2.6 LOT4 [20H 25H]: Output condition data readout
Function: This command reads the output condition data of the designated program.
When the program number is 0, it reads out the data from the buffer RAM.
When the program has any number from 1001 to 2000, the command reads
out from the fixed data. When the program number is 9999, the command
reads the data from the command work RAM.
Sequence: Type 3
Command:
STX
1 byte
02H
VG4CMD
1 byte
FDH
LOT4
2 bytes
20H 25H
Program number
1 to 4 bytes
“0” to “2000”, “9999”
ETX
1 byte
03H
Fig. 2-6-1
Data:
STX
1 byte
02H
YPbPr
1 byte
“0” = OFF (RGB), “1” = ON (YPbPr)
,
1 byte
2CH (Delimiter)
YPbPrNo
1 byte
“0” to “5”
0 to 3, 5: Fixed data is used.
4: The values in coefficient tables below are used.
,
1 byte
2CH (Delimiter)
Color difference
coefficient YR
1 to 5 bytes
“0” to “10000”
Total value of YG + YB must be set to under 10000.
,
1 byte
2CH (Delimiter)
Color difference
coefficient YG
1 to 5 bytes
“0” to “10000”
Total value of YR + YB must be set to under 10000.
,
1 byte
2CH (Delimiter)
Color difference
coefficient YB
1 to 5 bytes
“0” to “10000”
Total value of YR + YG must be set to under 10000.
,
1 byte
2CH (Delimiter)
Color difference
coefficient CbR
1 to 4 bytes
“0” to “5000”
Total value of CbG + CbB must be set to under 10000.
,
1 byte
2CH (Delimiter)
Color difference
coefficient CbG
1 to 4 bytes
“0” to “5000”
Total value of CbR + CbB must be set to under 10000.
,
1 byte
2CH (Delimiter)
Color difference
coefficient CbB
1 to 4 bytes
“0” to “5000”
Total value of CbR + CbG must be set to under 10000.
,
1 byte
2CH (Delimiter)
Color difference
coefficient CrR
1 to 4 bytes
“0” to “5000”
Total value of CrR + CrG must be set to under 10000.
,
1 byte
2CH (Delimiter)
Color difference
coefficient CrG
1 to 4 bytes
“0” to “5000”
Total value of CrR + CrB must be set to under 10000.
,
1 byte
2CH (Delimiter)
Color difference
coefficient CrB
1 to 4 bytes
“0” to “5000”
Total value of CrR + CrG must be set to under 10000.
,
1 byte
2CH (Delimiter)
HS ON/OFF
1 byte
“0” = OFF, “1” = ON
,
1 byte
2CH (Delimiter)
HS MODE
1 byte
“0” = Nega, “1” = Posi
