2.73 SCGMS4 [20H 6BH]: CGMS data setting
Function: This command sets the CGMS data of the designated program number.
When the program number is 0, it writes the data into the buffer RAM. When
it is 9999, it writes the data into the command work RAM.
Sequence: Type 2
Parameters:
STX
1 byte
02H
VG4CMD
1 byte
FDH
SCGMS4
2 bytes
20H 6BH
Program number
1 to 4 bytes
“0” to “1000”, “9999”
,
1 byte
2CH (Delimiter)
Enable (Field-1)
1 byte
“0” or “1”
,
1 byte
2CH (Delimiter)
Enable (Field-2)
1 byte
“0” or “1”
,
1 byte
2CH (Delimiter)
CGMS
1 byte
“0” = Copying permitted
“1” = Not used condition
“2” = Copy Once
“3” = No copying permitted
ETX
1 byte
03H

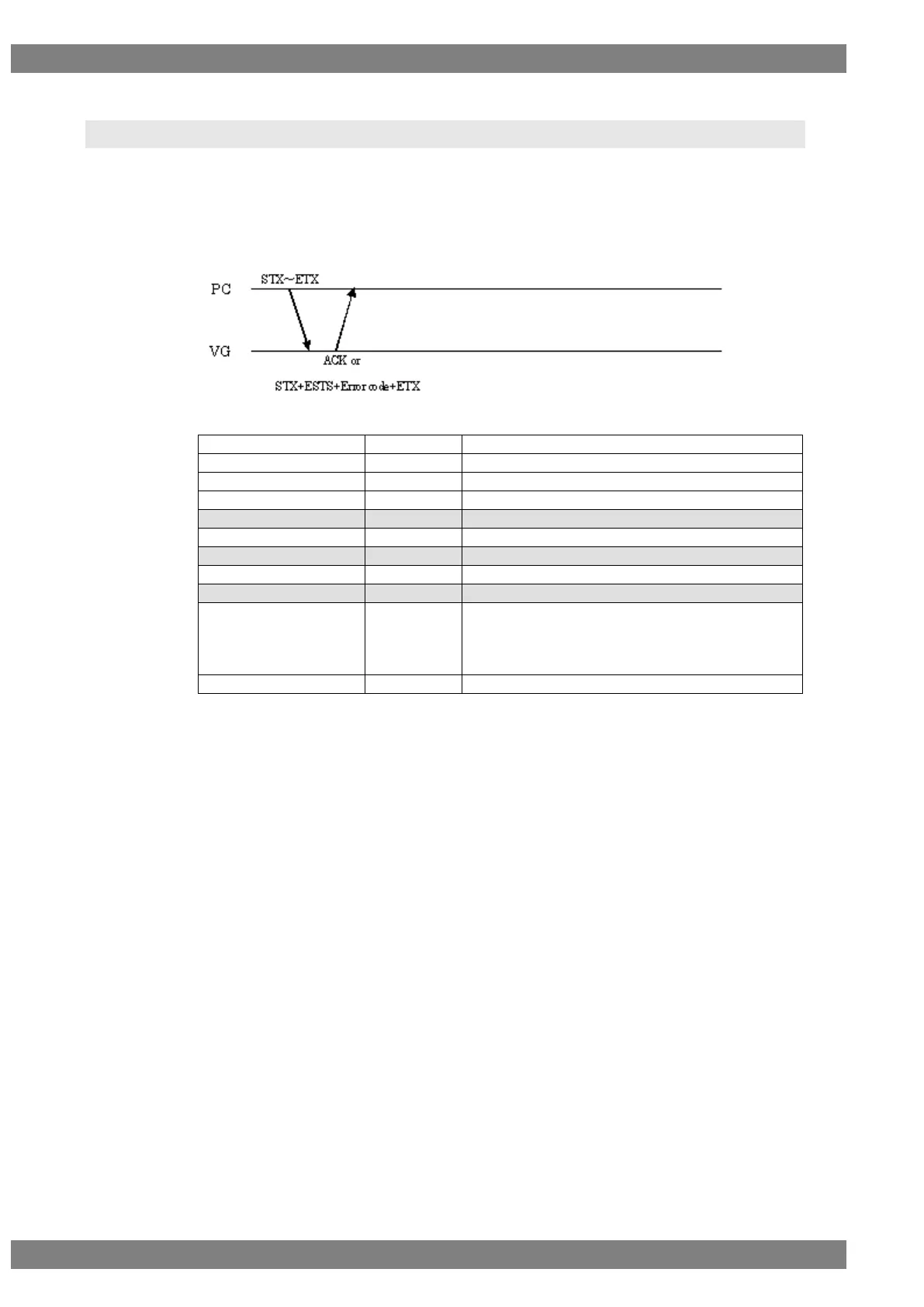

Fig. 2-73-1
