2.141 EXSYNC4 [24H 25H]: Separate sync ON/OFF
Function: This command sets each of the HS, VS and CS sync signals to ON or OFF.
Sequence: Type 2
Command:
STX
1 byte
02H
VG4CMD
1 byte
FDH
EXSYNC4
2 bytes
24H 25H
HS
1 byte
“0” = OFF, “1” = ON
,
1 byte
2CH (Delimiter)
VS
1 byte
“0” = OFF, “1” = ON
,
1 byte
2CH (Delimiter)
CS
1 byte
“0” = OFF, “1” = ON
ETX
1 byte
03H

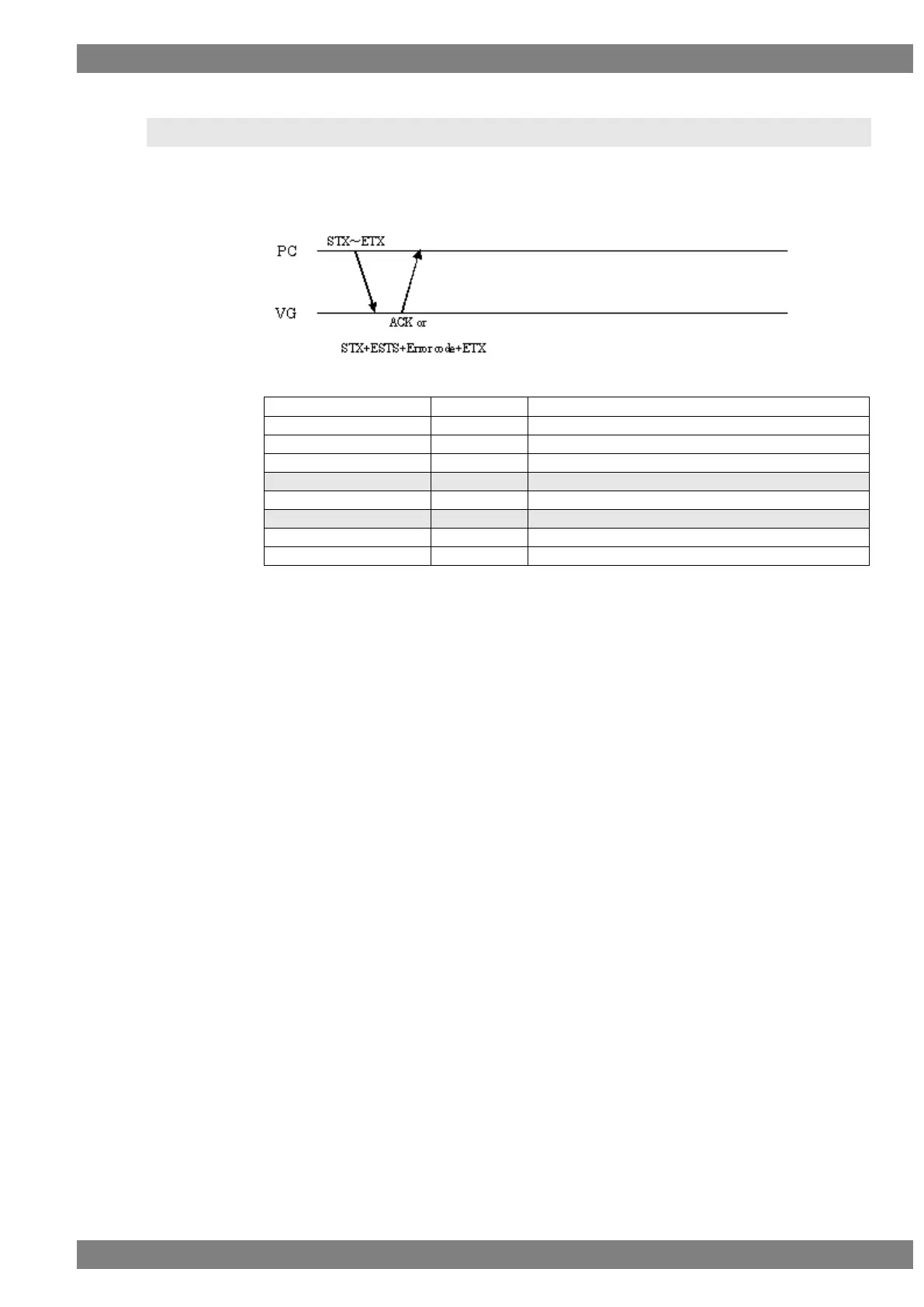

Fig. 2-141-1
