1.10.4 Type 4

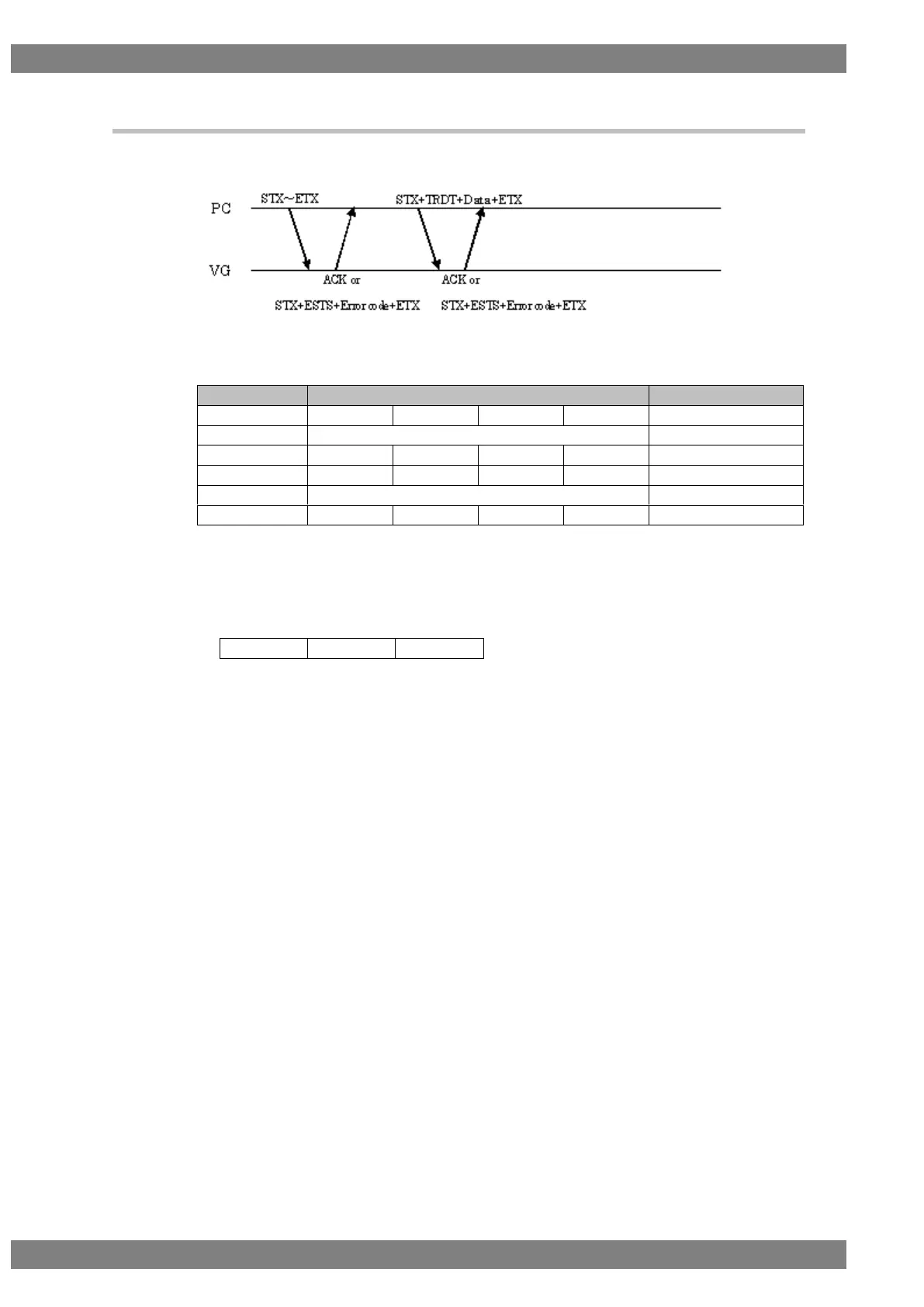

This is the sequence for sending the VG data.
Fig. 1-10-4-1
Flow
Command
Send/receive direction
1
STX
Command*1
(Parameters)
ETX
Send
2a (Successful)
ACK
Receive
2 b (Failed)
STX
ESTS
Error code
ETX
Receive
3
STX
TRDT
Data
ETX
Send
4a (Successful)
ACK
Receive
4b (Failed)
STX
ESTS
Error code
ETX
Receive
Fig. 1-10-4-2
Note1) It is assumed here that the following three codes are entered in the command
portion.
VG4CMD
Command 1
Command 2
Note2) The flow is terminated at 2b if communication failed.
