2.12 LPTS4 [20H 2BH]: Pattern select data readout
Function: This command reads the pattern select data of the designated program.
When the program number is 0, it reads out the data from the buffer RAM.
When the program has any number from 1001 to 2000, the command reads
out from the fixed data. When the program number is 9999, the command
reads the data from the command work RAM.

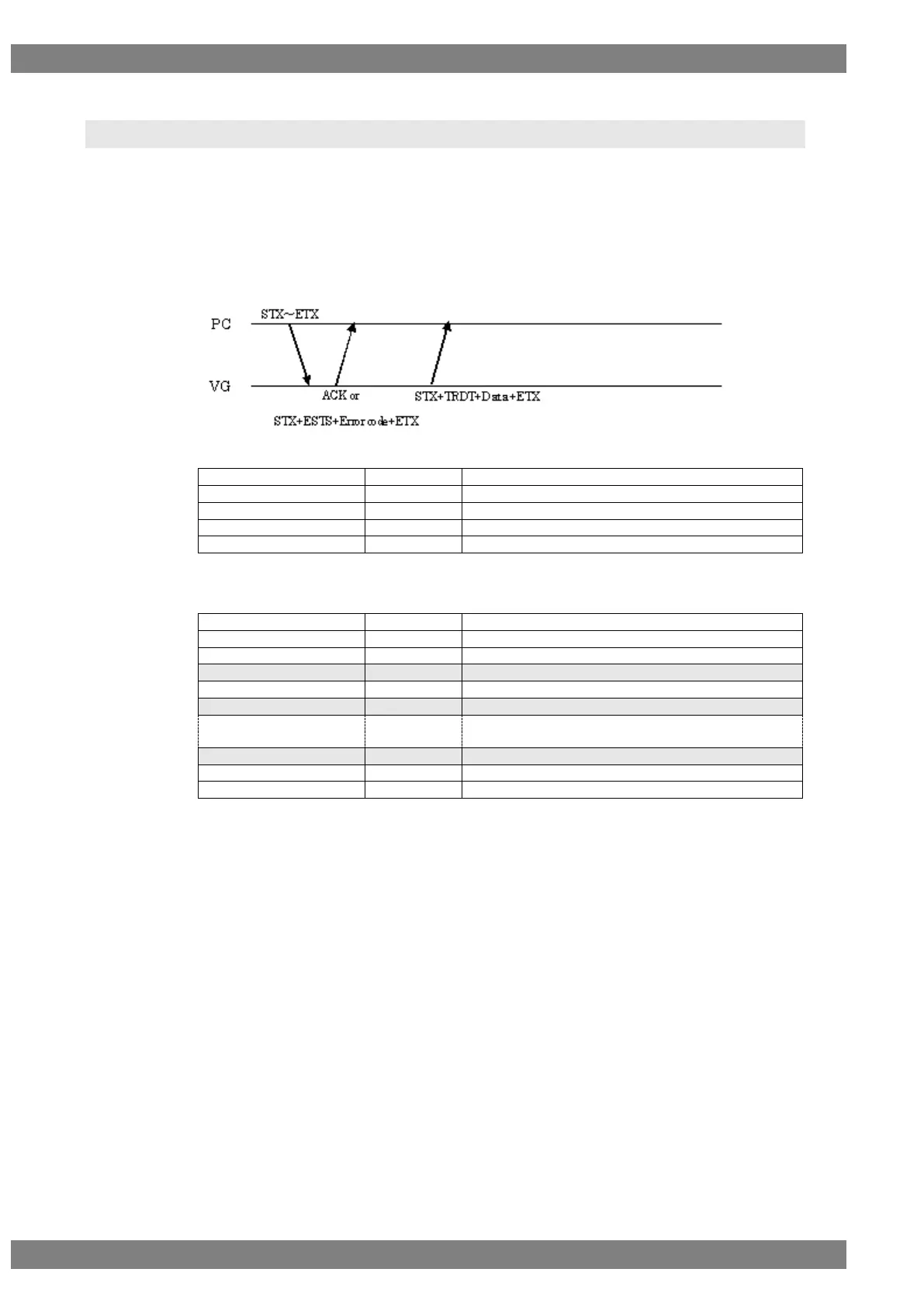

Sequence: Type 3
Command:
Fig. 2-12-1
Data:
Fig. 2-12-2
For details concerning the pattern select codes, refer to Fig. 2-11-2.
