Chapter 4 INDIVIDUAL FORMATS FOR CONTROL COMMANDS
4.30 LPT3 [A1H]: Pattern data readout (Type 3)
Function: This command reads the pattern data of the designated program number. It
selects the pattern block to be set in a parameter and receives the
corresponding data.

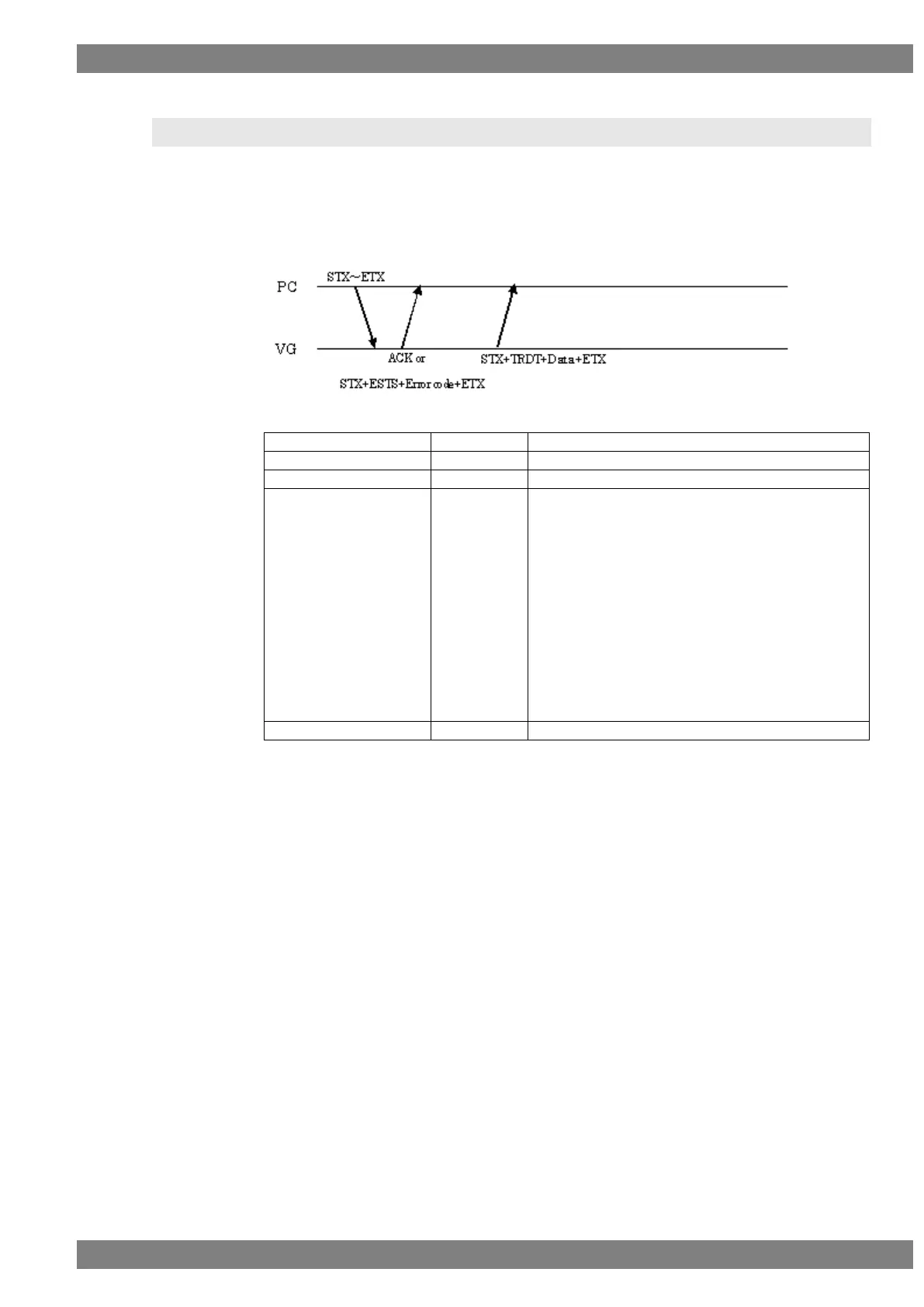

Sequence: Type 3
Command:
“02” = Character
“03” = Crosshatch
“04” = Dot
“05” = Circle
“06” = Burst
“07” = Window
“08” = Optional pattern 1
“09” = Optional pattern 2
“10” = Color bar
“11” = Gray scale
“13” = Cursor
“14” = Action
Fig. 4-30-1
Data: The data in Figs. 4-29-2 to 4-29-14 corresponding to the designated pattern
block number is received.
