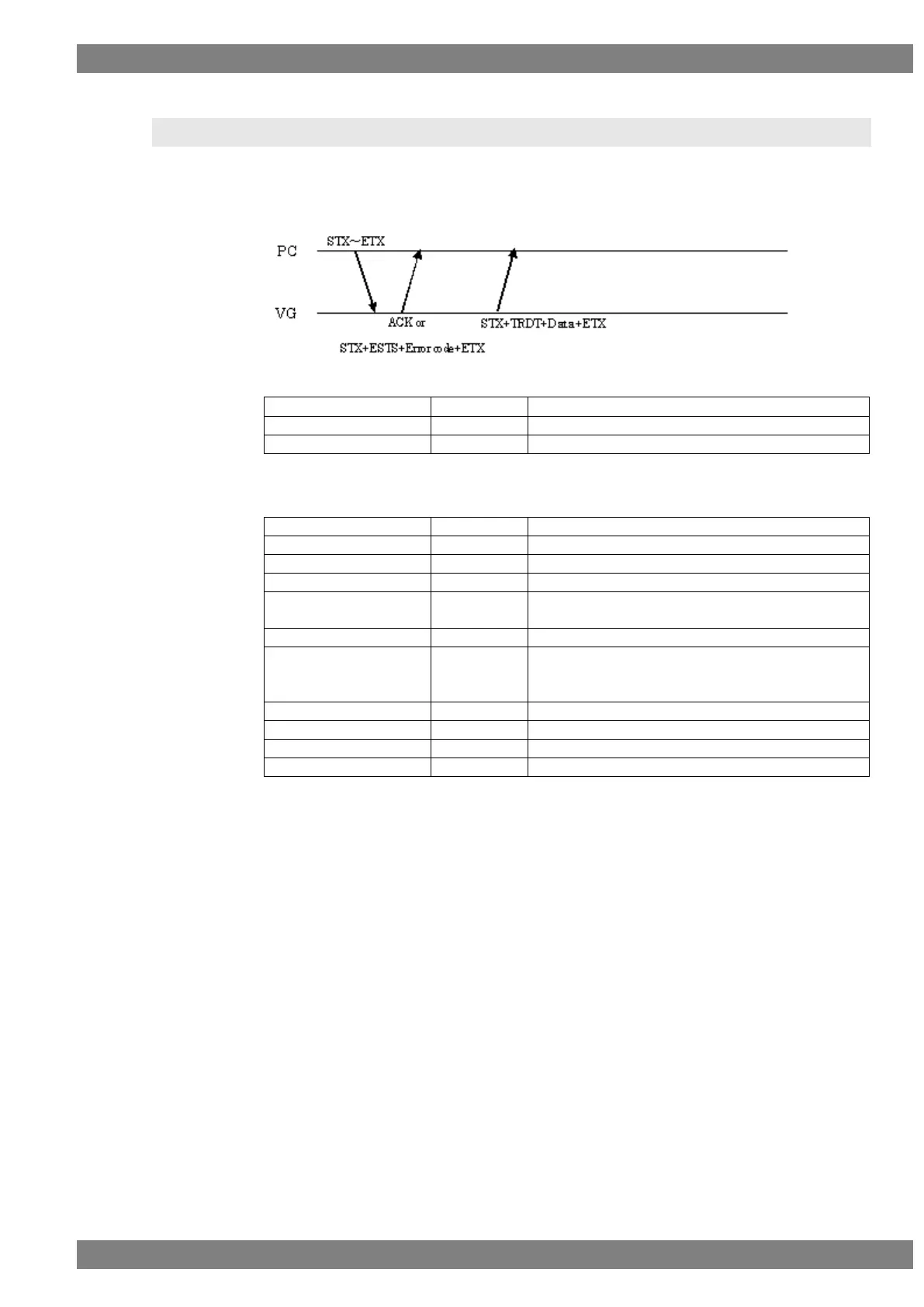

4.43 LCFG3 [7EH]: Config data readout (Type 3)
Function: This command reads the configuration data.
Sequence: Type 3
Command:
STX
1 byte
02H
LCFG3
1 byte
7EH
ETX
1 byte
03H
Fig. 4-43-1
Data:
STX
1 byte
02H
TRDT
1 byte
10H
Program data device
1 byte
“0” = Memory card
Pattern display mode
1 byte
“0” = Single-action switching, “1” = Overwriting
Group No.
2 bytes
“00” = Group not used
“01” to “99” = Designated group executed
Beep tone
1 byte
“0” = OFF, “1” = ON
Baud rate
1 byte
“0” = 9600, “1” = 19200, “2” = 38400, “3” =
57600,
“4” = 115200
Data length
1 byte
“0” = 7, “1” = 8
Parity
1 byte
“0” = None, “1” = Even, “2” = Odd
Stop length
1 byte
“0” = 1, “1” = 2
ETX
1 byte
03H
