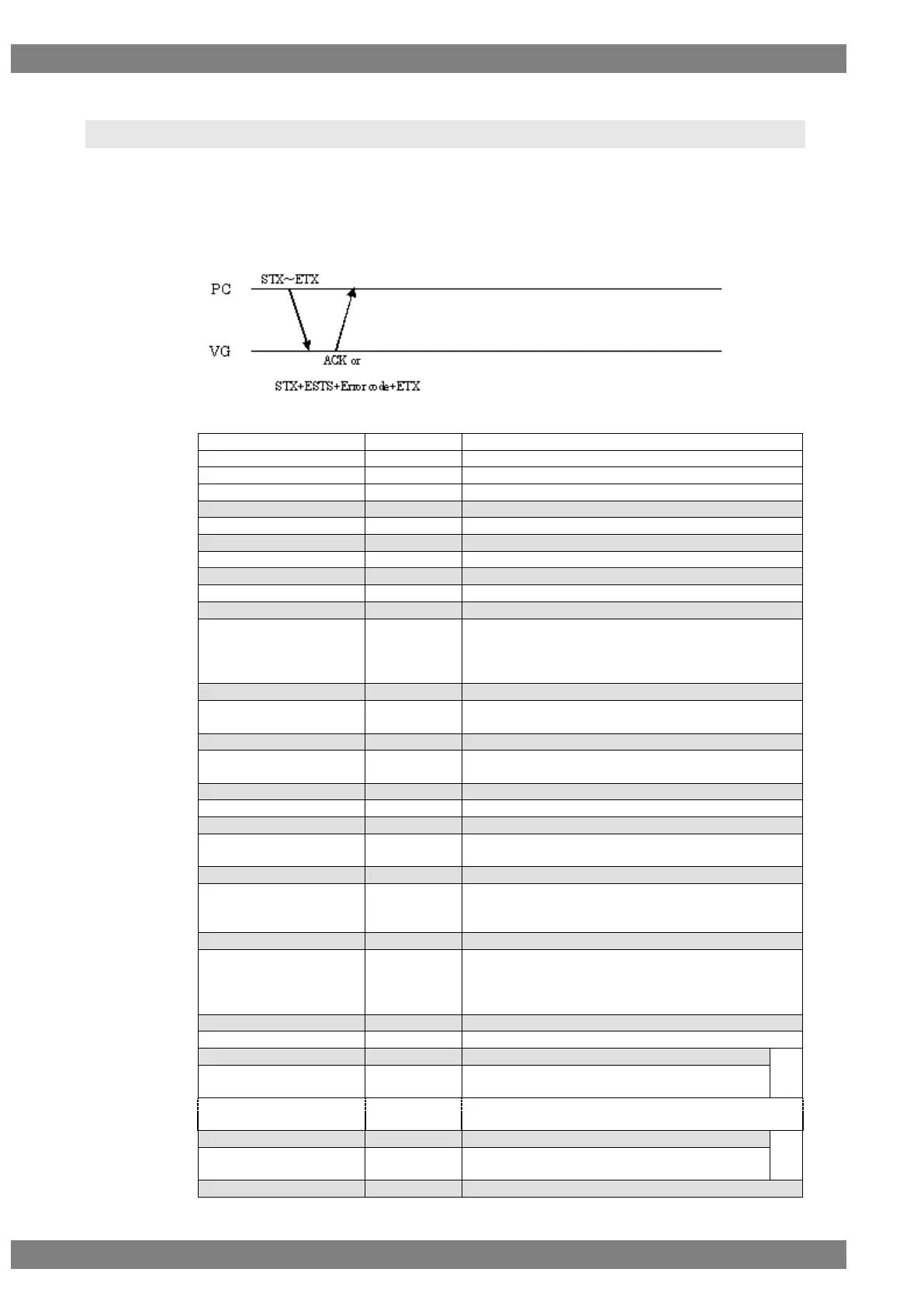

2.63 SGM4 [20H 61H]: GamutMeta data registration
Function: This command registers the GamutMeta data of the designated program
number. When the program number is 0, it writes the data into the buffer
RAM. When it is 9999, it writes the data into the command work RAM.
Sequence: Type 2
Parameters:
STX
1 byte
02H
VG4CMD
1 byte
FDH
SGM4
2 bytes
20H 61H
Program number
1 to 4 bytes
“0” to “1000”, “9999”
,
1 byte
2CH (Delimiter)
ON/OFF
1 byte
“0” = OFF, “1” = ON
,
1 byte
2CH (Delimiter)
Next_Field
1 byte
“0” or “1”
,
1 byte
2CH (Delimiter)
No_Current_GBD
1 byte
“0” or “1”
,
1 byte
2CH (Delimiter)
GBD_profile
1 byte
“0” = P0
“1” = P1
“2” = P2
“3” = P3
,
1 byte
2CH (Delimiter)
Affected_Gamut_Seq_
Num
1 or 2 bytes
“0” to “15”
,
1 byte
2CH (Delimiter)
Current_Gamut_Seq_
Num
1 or 2 bytes
“0” to “15”
,
1 byte
2CH (Delimiter)
Packet_Seq
1 byte
“0” to “3”
,
1 byte
2CH (Delimiter)
Format_Flag
1 byte
“0” = Vertices/Facets
“1” = Range
,
1 byte
2CH (Delimiter)
GBD_Color_Precision
1 byte
“0” = 8 bits
“1” = 10 bits
“2” = 12 bits
,
1 byte
2CH (Delimiter)
GBD_Color_Space_
Vertex
1 byte
“0” = ITU_R BT.709
“1” = xvYCC601
“2” = xvYCC709
“3” = XYZ
,
1 byte
2CH (Delimiter)
Number_Vertices
1 byte
“4” to “X” *1
,
1 byte
2CH (Delimiter)
#1
Packeted_GBD_Vertices
_Data
1 to 4 bytes
“0” to “4095” *2
,
1 byte
2CH (Delimiter)
#25
Packeted_GBD_Vertices
_Data
1 to 4 bytes
“0” to “4095” *2
,
1 byte
2CH (Delimiter)
