2.90 SDPLP4 [20H 7CH]: DP List Port data setting
Function: This command sets the DidplayPort List Port data of the designated
program number. When the program number is 0, it writes the data into the
buffer RAM. When it is 9999, it writes the data into the command work
RAM.
Sequence: Type 2
Parameters:
STX
1 byte
02H
VG4CMD
1 byte
FDH
SDPLP4
2 bytes
20H 7CH
Program number
1 to 4 bytes
“0” to “1000”, “9999”
,
1 byte
2CH (Delimiter)
Port
1 byte
"0" = DiplayPort1
"1" = DiplayPort2
ETX
1 byte
03H

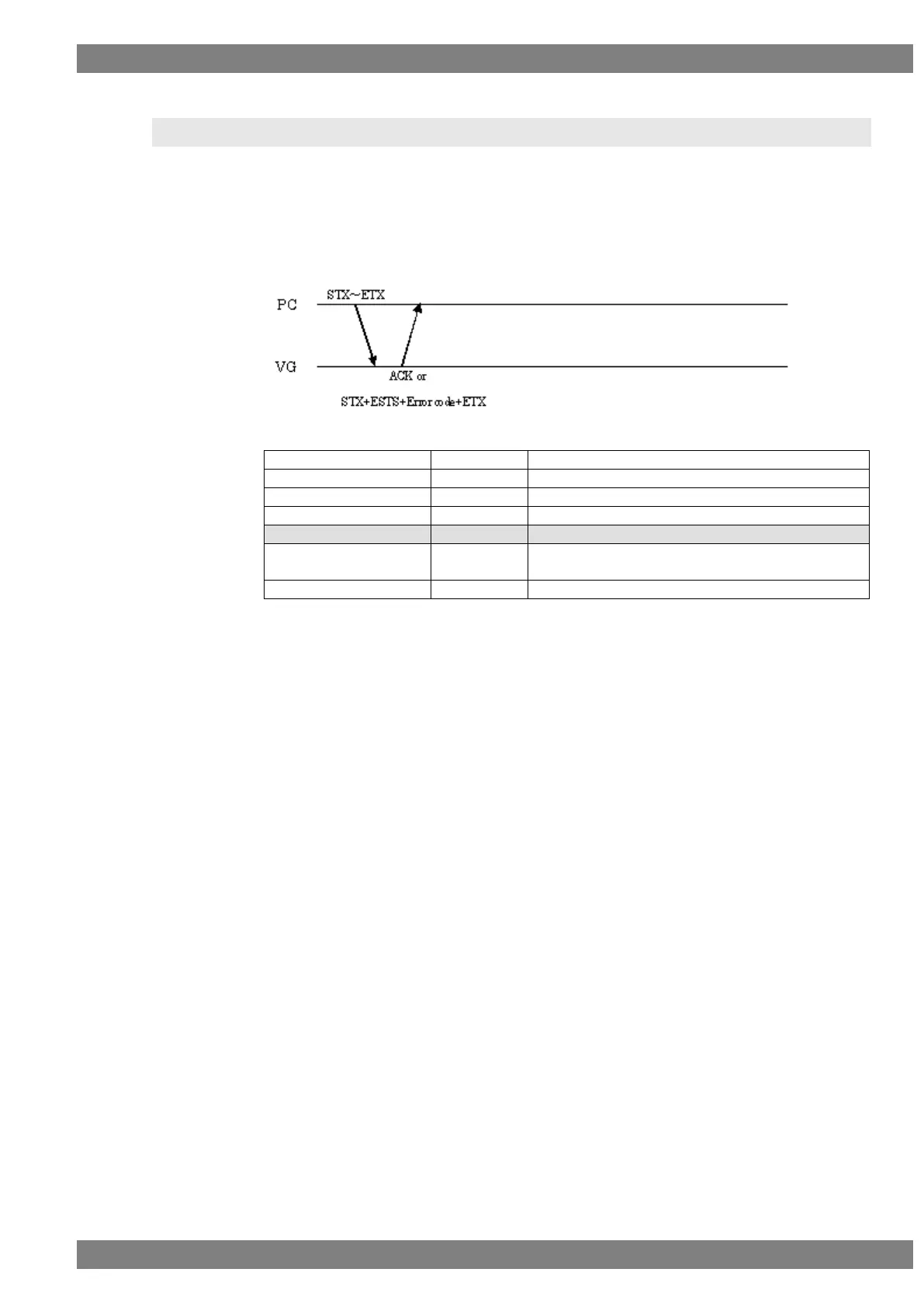

Fig. 2-90-1
