2.59 SCCM4 [20H 5DH]: User subtitle data setting 1
Function: This command sets the mode and style data of the user subtitles.
Sequence: Type 2
Parameters:
STX
1 byte
02H
VG4CMD
1 byte
FDH
SCCVC4
2 bytes
20H 5DH
User No.
1 or 2 bytes
“1” to “20”
,
1 byte
2CH (Delimiter)
FLASH_WRITE
1 byte
“0” = Current data are updated only.
“1” = Data is updated, and written on flash card.
,
1 byte
2CH (Delimiter)
Caption mode
1 byte
“0” = CC1
“1” = CC2
“2” = CC3
“3” = CC4
“4” = TXT1
“5” = TXT2
“6” = TXT3
“7” = TXT4
,
1 byte
2CH (Delimiter)
Caption style
1 byte
“0” = POPON
“1” = ROLLUP2
“2” = ROLLUP3
“3” = ROLLUP4
“4” = PAINTON
ETX
1 byte
03H

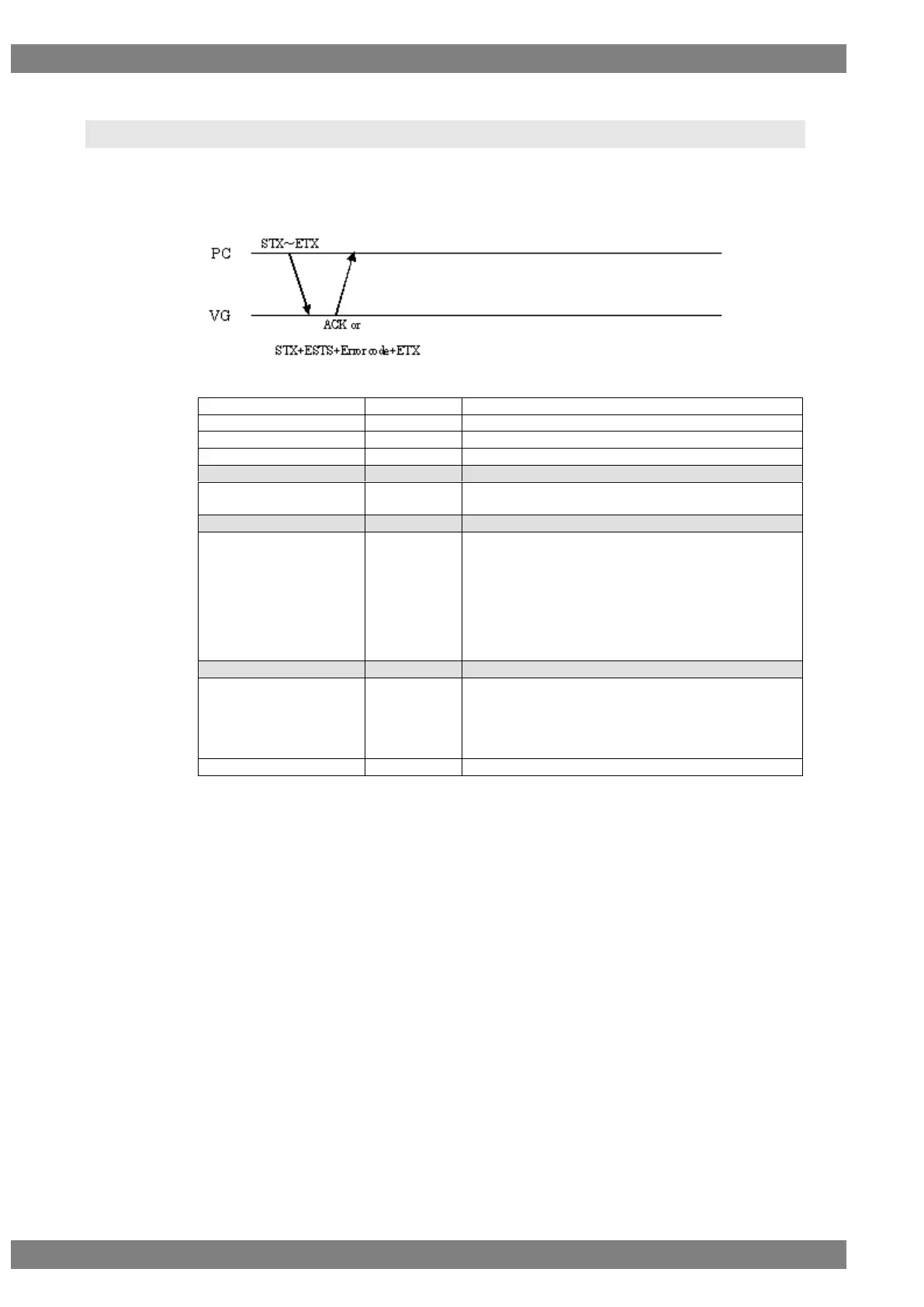

Fig. 2-59-1
Data: None
