ASTRO VG-871 - G8 CIRCPA [E6 H]: Filled-In Circle Drawing (Color Designation)

450
5.17.2 G8CIRCPA [E6H]: Filled-in circle drawing (color designation)
Function : This command draws filled-in circles on the color bar plane (8-bit plane). The
center coordinates and radius and color of the circle are designated by the
parameters.

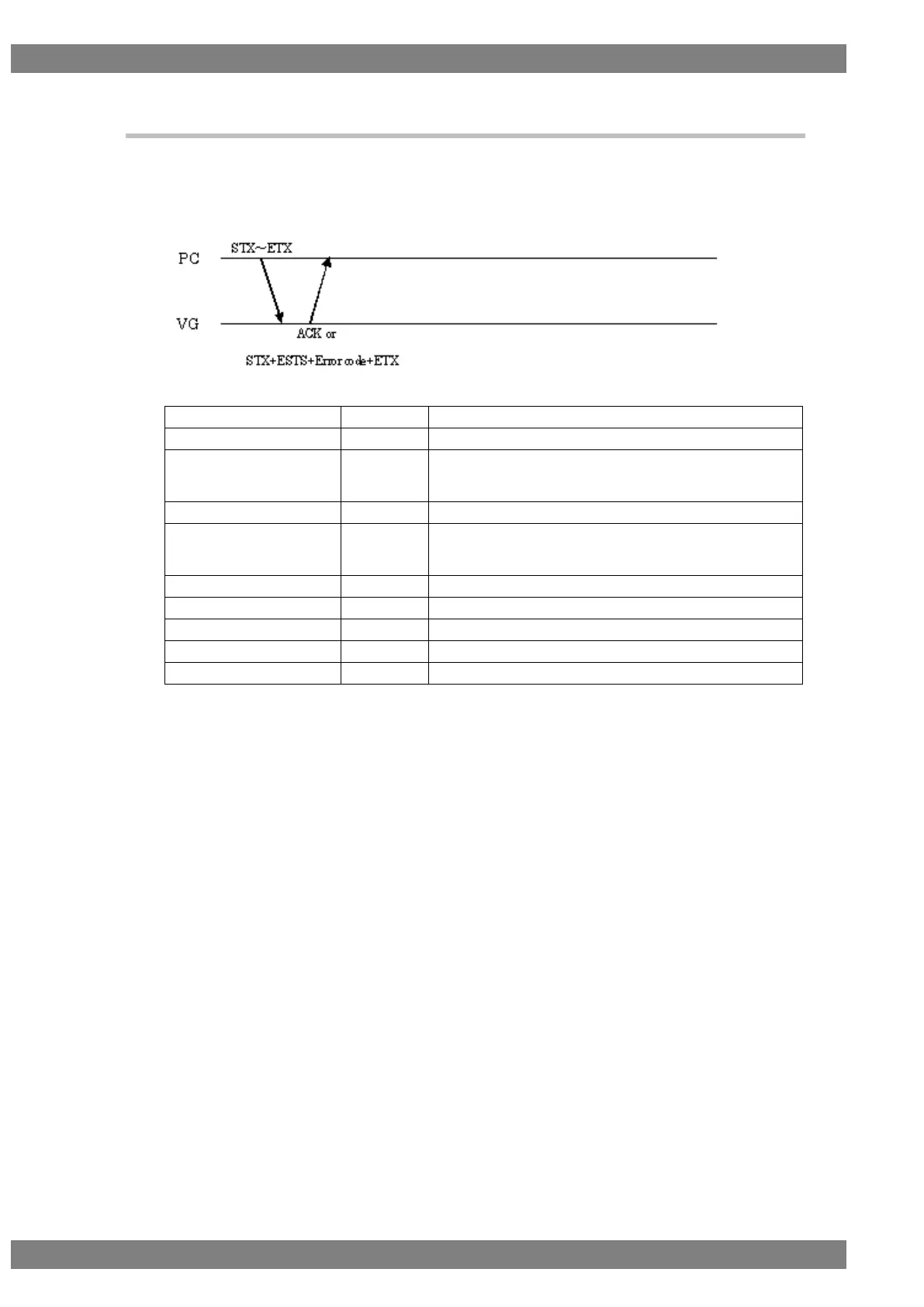

Sequence : Type 2
Parameter :
STX
1 byte
02H
G8CIRCPA
1 byte
E6H
Center X coordinate
2 to 5 bytes
Sign code + “0” to “4095” e.g. 100 “0100”
Sign code: “0” = +, “1” = -
*-2048 (“12048”) to +4096 (“04095”) in numerical terms
Data delimiter
1 byte
“,”
Center Y coordinate
2 to 5 bytes
Sign code + “0” to “4095” e.g. 100 “0100”
Sign code: “0” = +, “1” = -
*-2048 (“12048”) to +4096 (“04095”) in numerical terms
Data delimiter
1 byte
“,”
Radius
1 to 4 bytes
“1” to “4095”
Data delimiter
1 byte
“,”
Color
1 to 3 bytes
“0” to “255”
ETX
1 byte
03H
Fig. 5-17-2
