ASTRO VG-871 - SOT4 [20 H 24 H]: Output Condition Data Registration

Chapter 2 INDIVIDUAL FORMATS FOR VG CONTROL COMMANDS
23

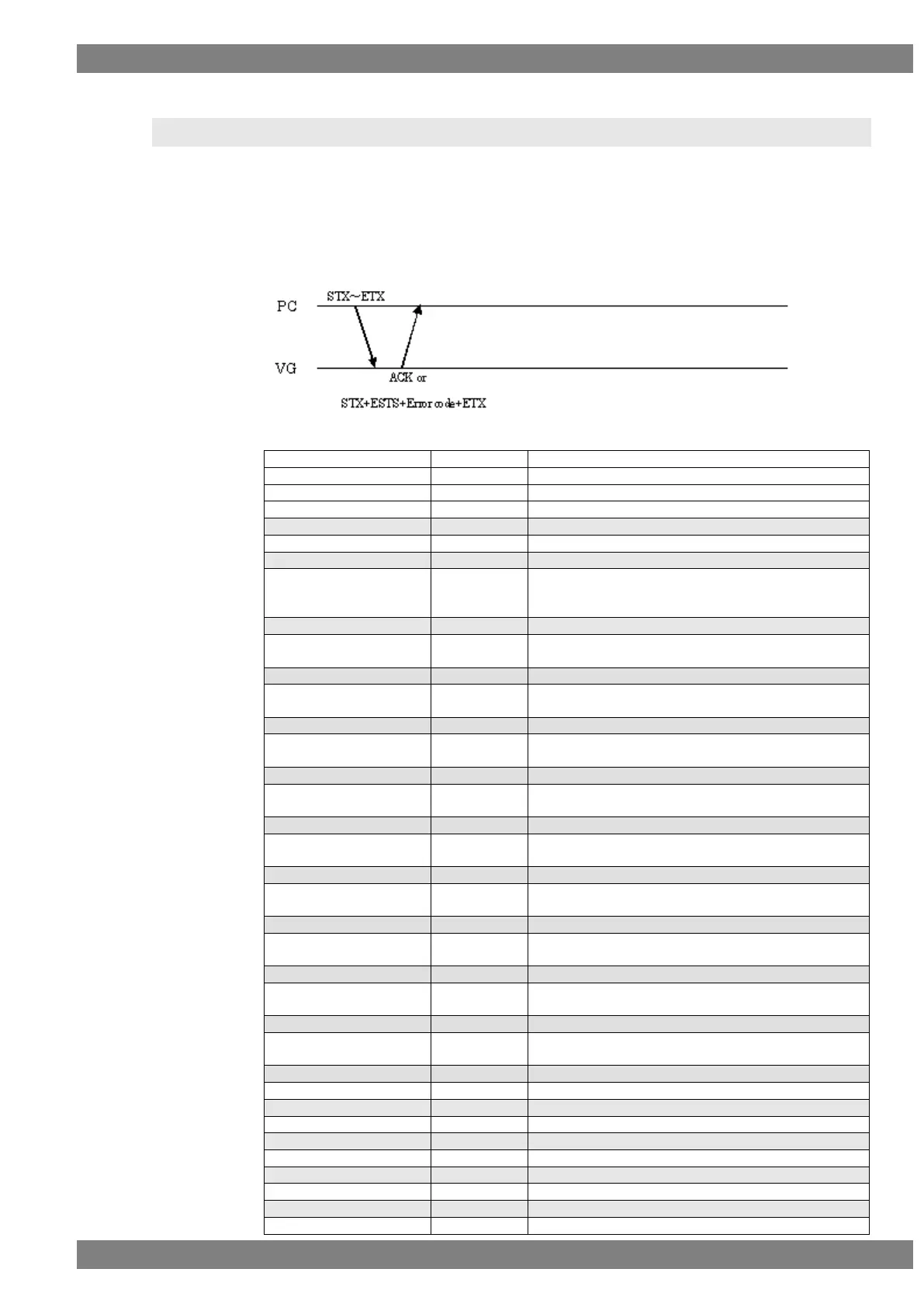

2.5 SOT4 [20H 24H]: Output condition data registration
Function: This command registers the output condition data of the program whose
number has been designated. When the program number is 0, it writes the
data into the buffer RAM. When it is 9999, it writes the data into the
command work RAM.
Sequence: Type 2
Command:
STX
1 byte
02H
VG4CMD
1 byte
FDH
SOT4
2 bytes
20H 24H
Program number
1 to 4 bytes
“0” to “1000”, “9999”
,
1 byte
2CH (Delimiter)
YPbPr
1 byte
“0” = OFF (RGB), “1” = ON (YPbPr)
,
1 byte
2CH (Delimiter)
YPbPrNo
1 byte
“0” to “5”
0 to 3, 5: Fixed data is used.
4: The values in coefficient tables below are used.
,
1 byte
2CH (Delimiter)
Color difference
coefficient YR
1 to 5 bytes
“0” to “10000”
Total value of YG + YB must be set to under 10000.
,
1 byte
2CH (Delimiter)
Color difference
coefficient YG
1 to 5 bytes
“0” to “10000”
Total value of YR + YB must be set to under 10000.
,
1 byte
2CH (Delimiter)
Color difference
coefficient YB
1 to 5 bytes
“0” to “10000”
Total value of YR + YG must be set to under 10000.
,
1 byte
2CH (Delimiter)
Color difference
coefficient CbR
1 to 4 bytes
“0” to “5000”
Total value of CbG + CbB must be set to under 10000.
,
1 byte
2CH (Delimiter)
Color difference
coefficient CbG
1 to 4 bytes
“0” to “5000”
Total value of CbR + CbB must be set to under 10000.
,
1 byte
2CH (Delimiter)
Color difference
coefficient CbB
1 to 4 bytes
“0” to “5000”
Total value of CbR + CbG must be set to under 10000.
,
1 byte
2CH (Delimiter)
Color difference
coefficient CrR
1 to 4 bytes
“0” to “5000”
Total value of CrR + CrG must be set to under 10000.
,
1 byte
2CH (Delimiter)
Color difference
coefficient CrG
1 to 4 bytes
“0” to “5000”
Total value of CrR + CrB must be set to under 10000.
,
1 byte
2CH (Delimiter)
Color difference
coefficient CrB
1 to 4 bytes
“0” to “5000”
Total value of CrR + CrG must be set to under 10000.
,
1 byte
2CH (Delimiter)
HS ON/OFF
1 byte
“0” = OFF, “1” = ON
,
1 byte
2CH (Delimiter)
HS MODE
1 byte
“0” = Nega, “1” = Posi
,
1 byte
2CH (Delimiter)
HS Sel
1 byte
“0” = HS, “1” = CS
,
1 byte
2CH (Delimiter)
VS ON/OFF
1 byte
“0” = OFF, “1” = ON
,
1 byte
2CH (Delimiter)
VS MODE
1 byte
“0” = Nega, “1” = Posi
