System Products 105
© 2020, ATEÏS. All rights reserved.
Fireman Microphone Connector:
DIN Connector for fireman microphone connection.
All Call Release Button:
This button is used for selecting or deselecting all keys.
All Call Release Indicator:
This indicator lights up if all keys are selected.
Event Select Key:
These buttons are used to select keys, each key may link to an event for triggering actions like
paging or adjust the value of parameters.
Power Indicator:
This LED lights up when the CD-8AS is powered on.
Evacuation Indicator:
Light up when system is under evacuation paging.
System is under evacuation paging.
CD-8 does not do a "Plug-in" in Ateis Studio before using.
Fault Indicator:
To display fault status of system. Following table list the states of fault:
There are faults in audio processor.
Lost communication with audio processor.
3.2.1.4.2 Connection with PPM JB Junction Box
The wiring examples of connecting the CD-8AS via PPM JB junction box on IDA8 processor can be
the points as below,
Connect with one CD-8AS device.
Cascade with multiple CD-8AS devices (max. units:10).
Please refer to Connection with PPM-AS chapter.

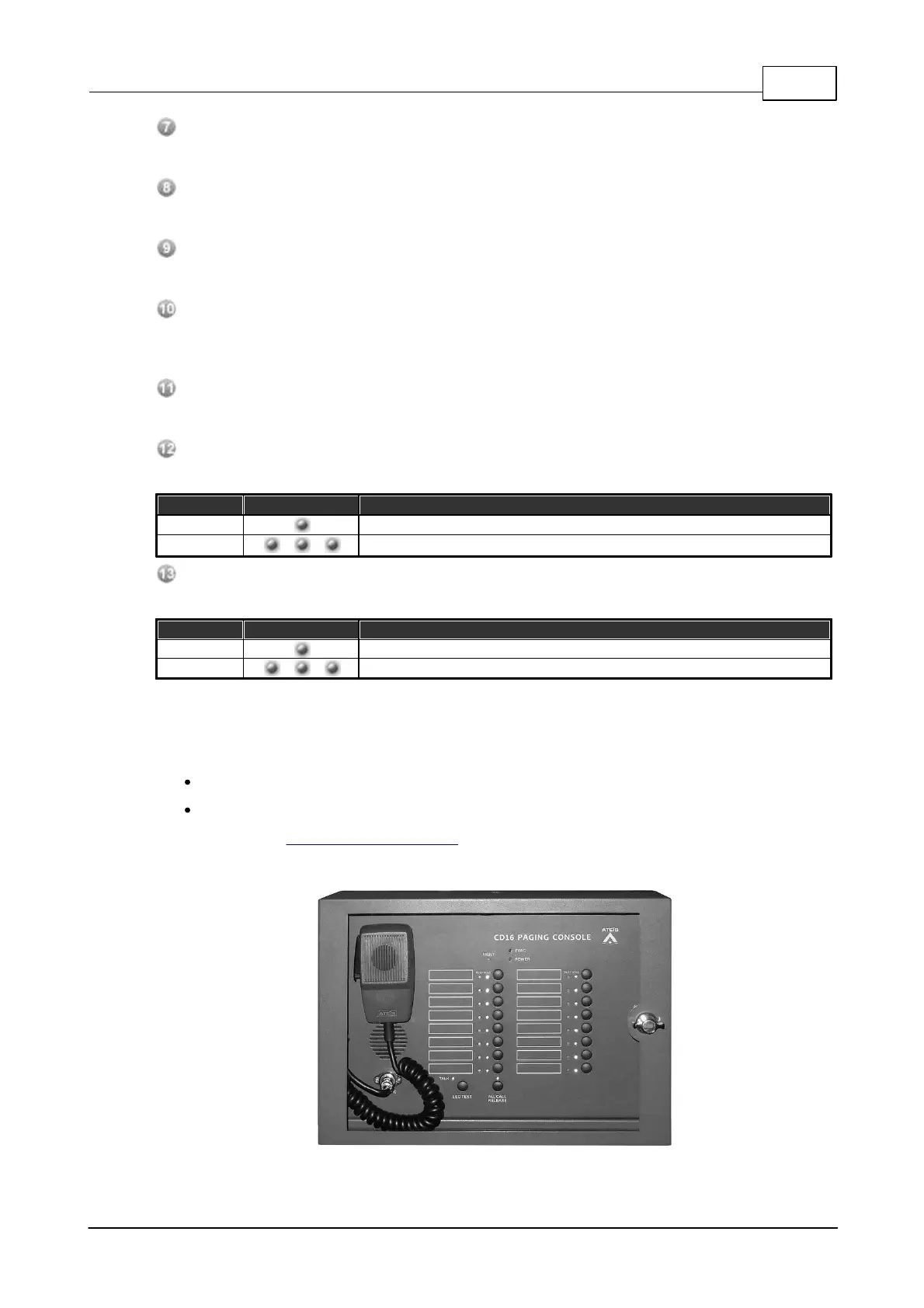

3.2.1.5 CD-16AS Wallmount Paging Console
The CD-16AS remote paging console which serves up to eight zones individually with an All-Call
