G.Fault LED:
This LED will light up when a global fault is detected.
Bypass Mode LED:
This LED will light up if the IDA8 is in bypass mode.
Bypass Monitoring LED:
This LED will light up if the monitoring function is enabled. This LED will light up if monitoring of
the IDA8 is disabled by manual operation.
Global EVAC LED:
This LED will light up if the system is in EVAC paging state. This LED will light up if any of the
IDA8 processor is performing the EVAC paging via Ateis-Net.
To learn more about how to configure an EVAC paging, see Network Paging Component
chapter.
Zone EVAC LEDs:
The LED will light up if the audio channel is in EVAC paging. Each LED corresponds to an
output channel of a Network Paging component. For example, 1st LED is for pin M1, 2nd LED
for pin M2 and so on.
Power LED:
This LED will light up when the IDA8SAB is power on.
Network LED:
This LED will light up if there are more than two deployed IDA8 processors in Ateis-Net.
Zone Fault LEDs:
The LED will light up if one of following faults is detected:
Normal AMP Error
Line A Error
Line B Error
Backup AMP Error
AMP Line Leakage Error

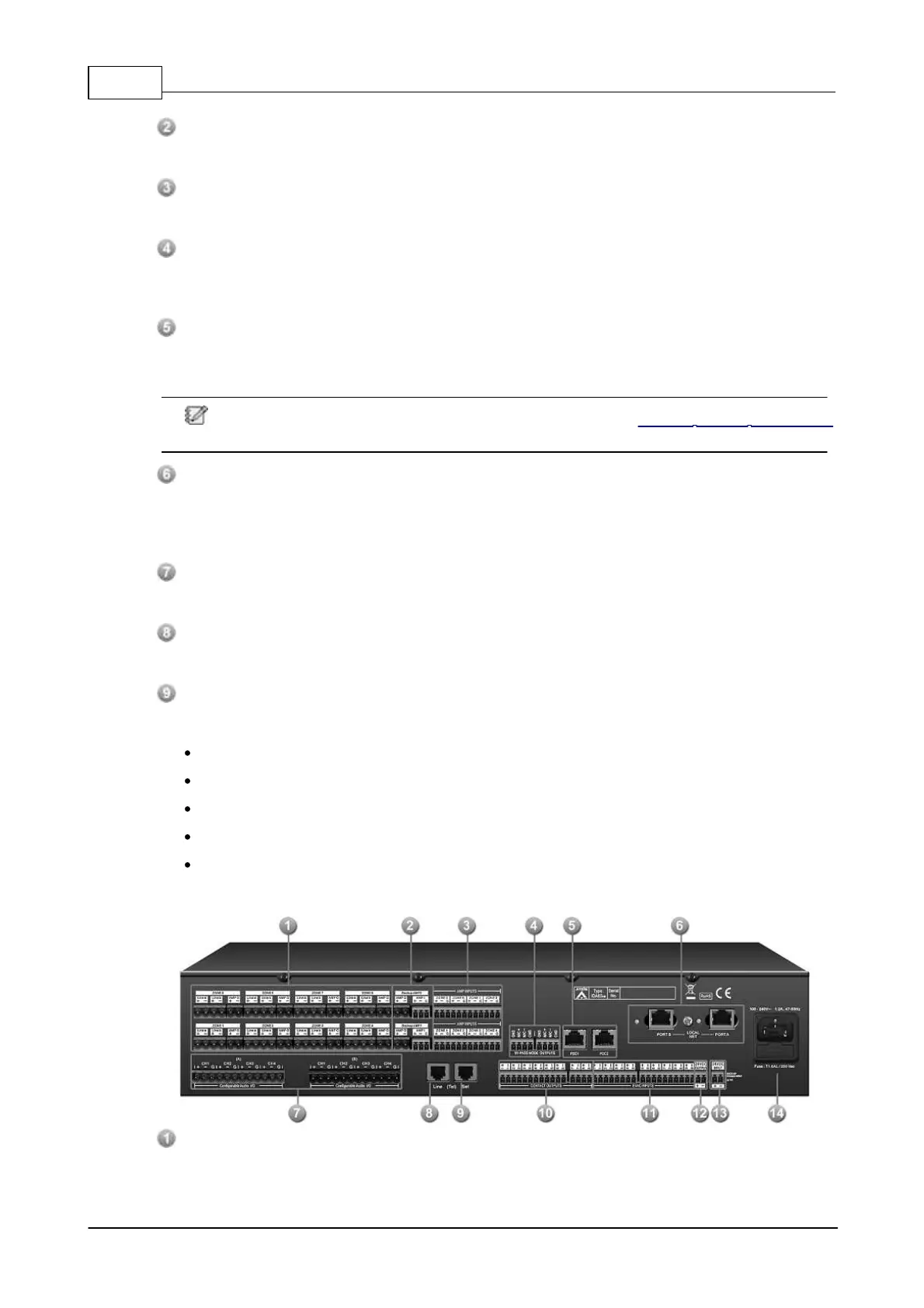

3.1.2.2 Rear Panel
Speaker Zone Outputs:
There are 8 zones for speaker & amplifier connections. Each zone consists of following
connectors(from left to right):

Ateis IDA8S Specifications

General

Brand	Ateis
Model	IDA8S
Category	Security System
Language	English
