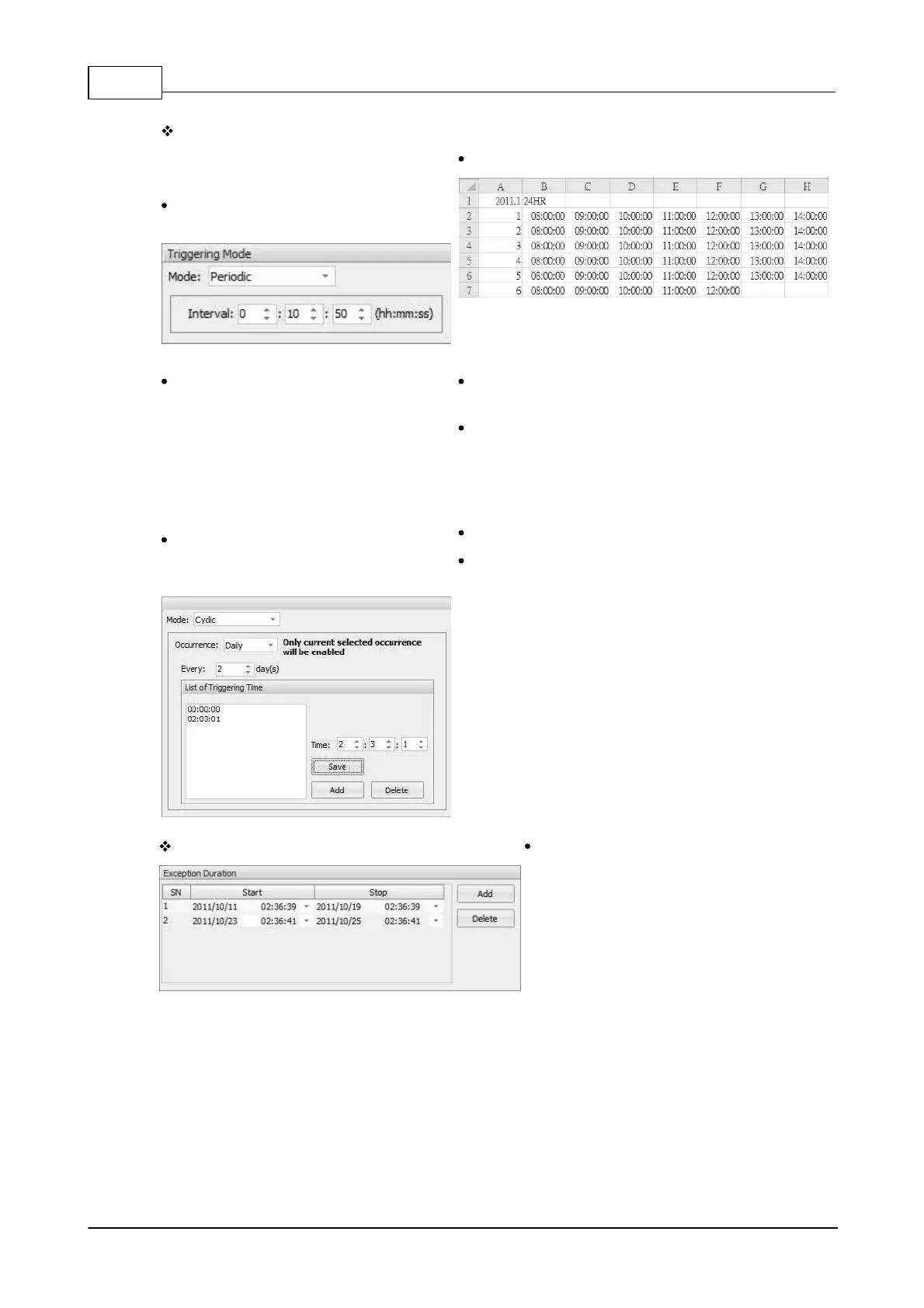

Triggering Mode
The triggering mode defines the rule of
triggering a pulse to output.
Periodic: The interval is the time between
two triggers.
Cyclic: The Occurrence parameter
determines the cycle type of triggering.
There are five types available: Hourly/
Daily/Weekly/Monthly/Yearly.It allows
the user to define the interval between
cycles by specifying the parameter of
Every N cycle unit where the cycle unit
can be Hour/Day/Week/Month/Year.
The box lists the Time of Triggering. You
can add or remove the triggering time in
the cycle.
By Excel File
It allows to set the triggering times by using an excel
file. The rules are listed below:
Field A1 is the "Year. Month" for scheduling. Note:
Refer to the format as shown in the picture above.
B1 ~ X1 is the field for time format, there are two
choices:
o 24HR
o AM/PM
A2 ~ A 32 represents the day of a month.
For each row, B to X fields are the time to be
triggered.
The "Exception Duration" allows to edit a
list for the exceptions of the triggering.
Each exception consists of a start time
and a stop time. During the exception time
all triggering will be masked.
6.13.24 Serial Signal Buffer
Used for converting the decimal code to the binary code. After dragging this component to the
configuration window, the [Pin Setting] window will be displayed, choose the number of pin, and click
[OK] to proceed.
